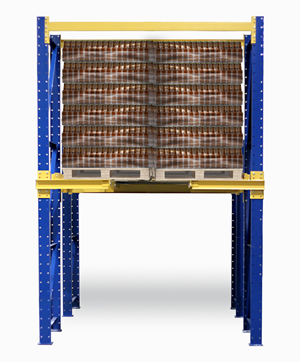

Structural Pallet Rack: Selective Pallet Rack

Selective Pallet Rack is the most commonly used type of pallet rack for customers. They are low cost, fully selective, and easy to adjust. It also allows maximum number of SKU facing.

Advantages:

• Cheap
• Many Options
• Easily Adjustable

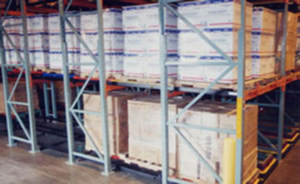

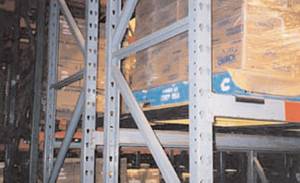

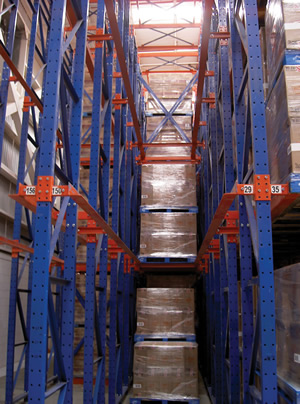

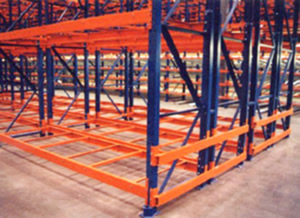

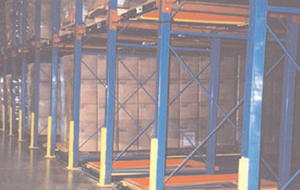

Structural Pallet Rack: Drive In

The advantages of owning a Drive In unit are immense and include lower capital investment, high storage for certain products, and are perfect for food or product manufactures with limited SKU counts.

Advantages:

• Last in First Out (LIFO)
• Low Cost
• High Density Storage Option

Applications:

• Food Manufacturers
• Product Manufacturers

Structural Pallet Rack: 2 Wide Drive In

This unit is efficient for high density storage as well as allowing twice the load and unloading capacity in a single run while giving the increasing the stability on a forklift!

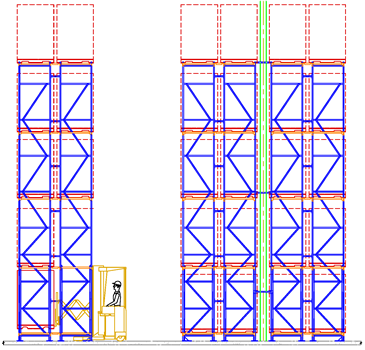

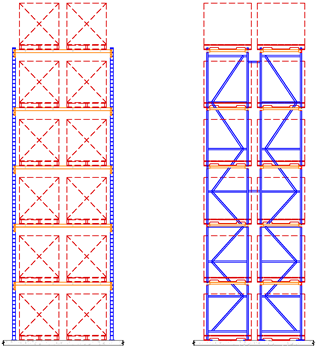

Structural Pallet Rack: Double Deep Reach

With this unit you can store 2 pallet positions from a single aisle as well as lowering the cost of the unit when compared to another high density unit. The fork truck can reach the rear pallets with a pantograph extender

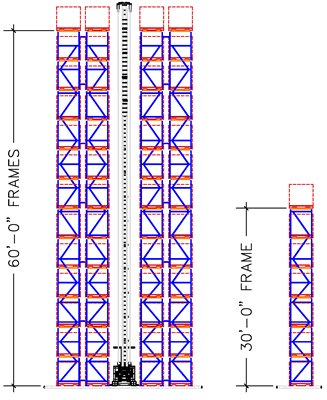

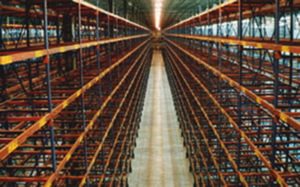

Structural Pallet Rack: High Bay Storage

The High Bay Storage unit can exceed 60’ in height, doubling storage compared to ordinary pallet rack. Man up Vehicles and Fully automated systems are available. The ability to move between aisles with the vehicles, provided by Advance Manufacturing, can lower the initial investment.

Advantages:

• Vehicles can past though isles
• One of the tallest storage available.

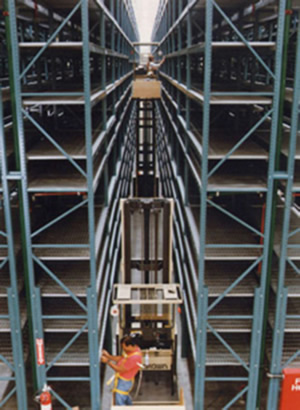

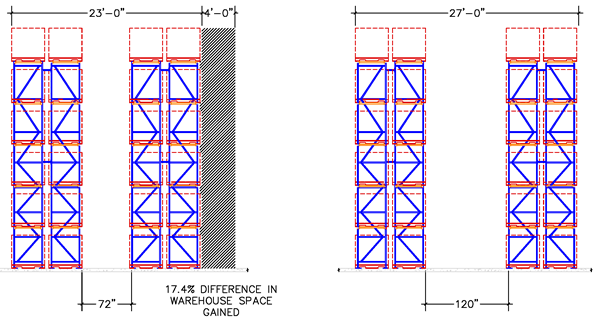

Structural Pallet Rack: Very Narrow Aisle

This particular unit has a pallet rack system that typically has 72'' wide aisles and they are accessed by wire guided turret trucks. It is best to have an automated position locater that can rapidly access the product stored on the Very Narrow Aisle Warehouse Racking System.

Advantages:

• The initial cost is low
• Increase productivity of pallet retrieval

Applications:

• Most warehouses

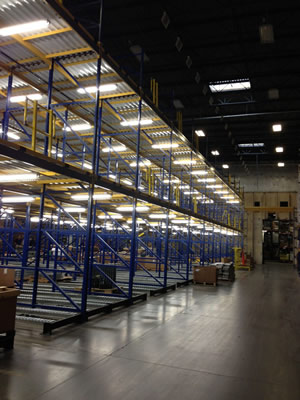

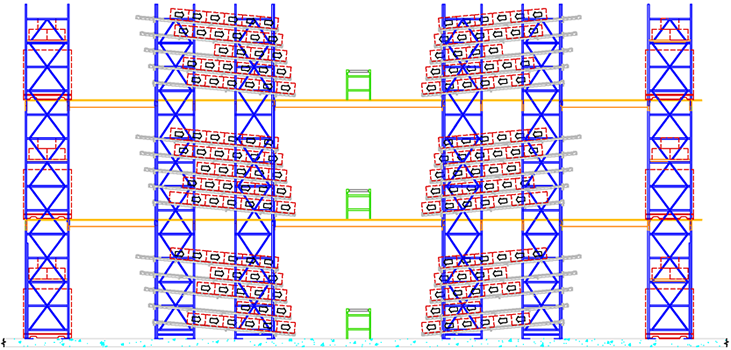

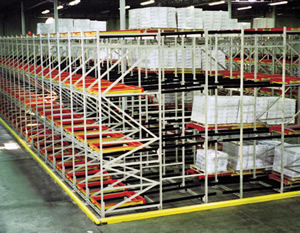

Structural Pallet Rack: Pick Modules

Designed for applications of high volume, these units are perfect for split and full case picking. The Pick Modules system frequently integrates conveyors and are stackable 3-4 levels high.

Compatible with:

• Carton flow
• Pallet flow
• Pushback
• Or combinations of the above for custom material handling

Advantages:

• Capable of high SKI counts
• Picking rates are very efficient
• Works with split and full case applications

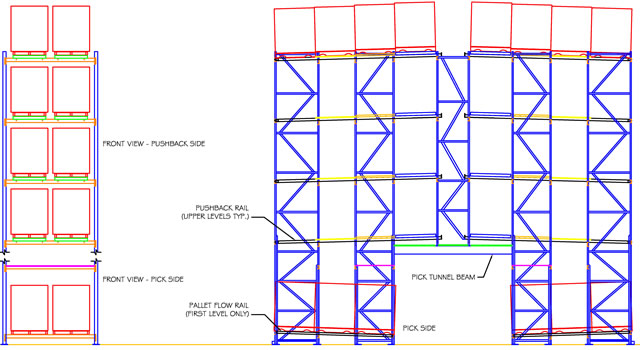

Structural Pallet Rack: Pick Tunnels

Single levels pick tunnels rack system provide cubic space utilization and warehouse storage density. It also minimizes movement of reserve product and separates them/puts them away.

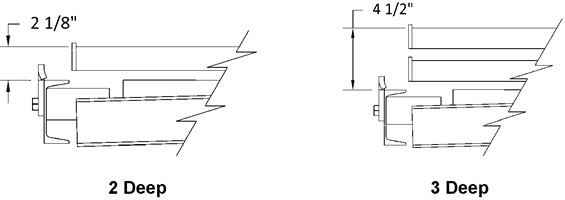

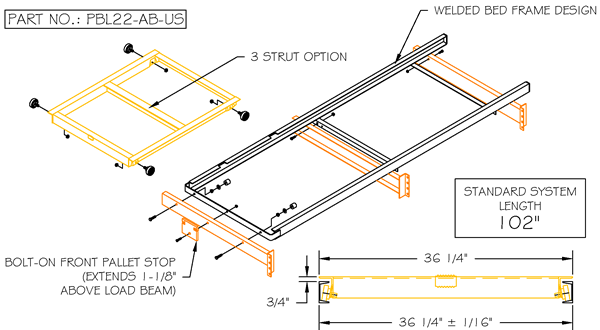

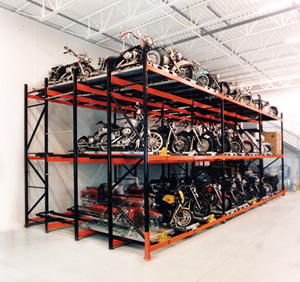

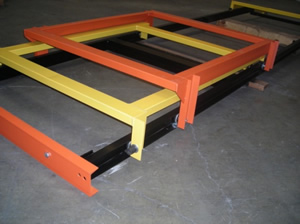

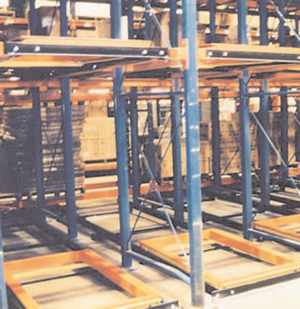

Pushback Rack Systems: 2 Deep Lo-Pro Pushback

The 2 Deep Lo-Pro Pushback system can increase storage space by 25%.The 2 Deep Lo-Pro Pushback system the option to store several SKU’s and reduce aisles that selective rack requires. These units are built and constructed to save labor costs thanks to the front loading & unloading style versus the double-deep and drive-in systems.

Features:

• Increase storage space by 25%
• Lower labor costs

Pushback Rack Systems: 3 Deep Lo-Pro Pushback

The 3 Deep Lo-Pro Pushback system saves up to 25% of storage and provides flexibility to store loads of SKU’s. The 3 Deep Lo-Pro Pushback system can save labor costs because of the front loading & unloading style versus the double-deep and drive-in systems.

Features:

• Increase storage space by 25%
• Lower labor costs

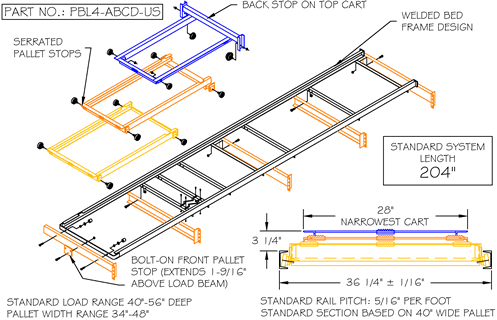

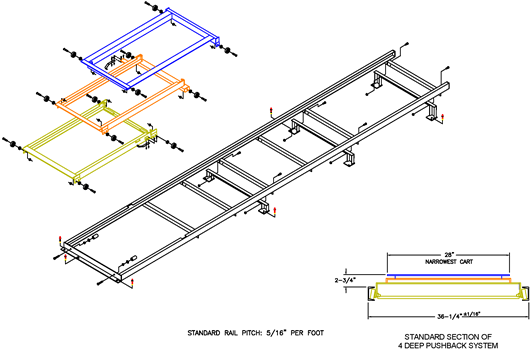

Pushback Rack Systems: 4 Deep Lo-Pro Pushback

4 Deep Lo-Pro Pushback makes it possible to increase storage space up to 45% because of the flexibility to store many loads of SKU’s. These units are built and constructed to save labor costs thanks to the front loading & unloading style versus the double-deep and drive-in systems.

Features:

• Increase storage space by 45%
• Lower labor costs

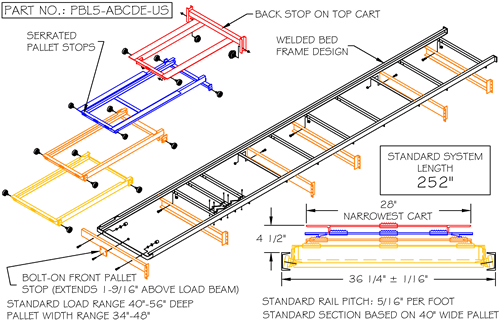

Pushback Rack Systems: 5 Deep Lo-Pro Pushback

The 5 Deep Lo-Pro Pushback provides flexibility to store more loads of SKU’s versus the three & four deep which will increase your available space by 55%. The 5 Deep Lo-Pro Pushback system can save labor costs because of the front loading & unloading style versus the double-deep and drive-in systems.

Features:

• Increase storage space by 55%
• Lower labor costs

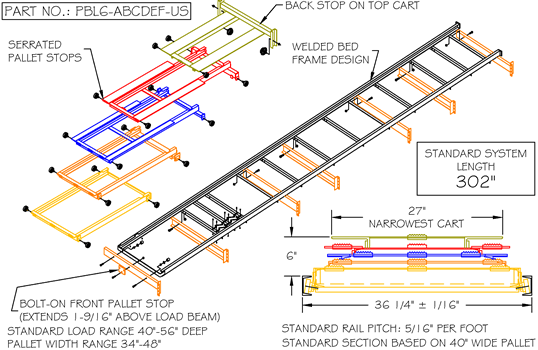

Pushback Rack Systems: 6 Deep Lo-Pro Pushback

The 6 Deep Lo-Pro Pushback provides flexibility to store more loads of SKU’s versus the 4 & 5 deep which will increase your available space by 65%. Save up to 65% of storage space and provides flexibility to store loads of SKU’s. These units are built and constructed to save labor costs thanks to the front loading & unloading style versus the double-deep and drive-in systems.

Features:

• Increase storage space by 65%
• Lower labor costs

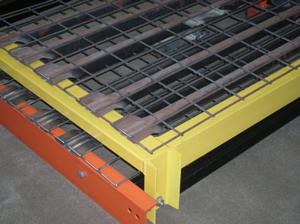

Pushback Rack Systems: Full Support Pushback

The full support Pushback system were created for shipping or other light weight pallets applications less the 3,000 lbs. The full support Pushback rack can support various pallet configurations because of the extra struts and wire mesh deck available. It also provides pallet support in storage position between the rails.

Features:

• Perfect for shipping warehouses
• Holds up to 3000 lbs
• Works with many pallet configurations
• Extra struts and wire mesh deck available

Pushback Rack Systems: Drive In Retrofit

The Drive In Retrofit can convert an existing drive in rack system into a Pushback system without the cost of replacing your current system!

Features:

• Converts Drive In to Pushback
• Uses existing system
• Save money over replacing existing system

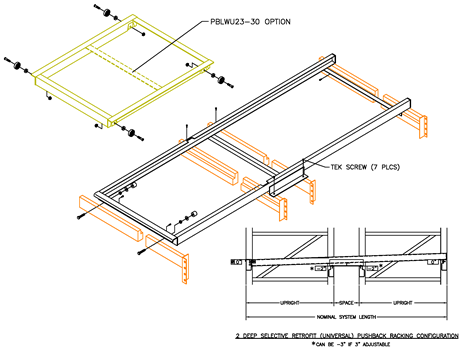

Pushback Rack Systems: Selective Retrofit

The Selective Retrofit can convert an existing single deep rack to a high density Pushback system. The 2 & 3 deep Pushback can be mounted on existing selective beams and frames.

Features:

• Converts Selective Pallet Rack to Pushback
• Uses existing system
• Save money over replacing existing system

Pushback Rack Systems: Pushback Floor Mount

You can now mount your Pushback racking system onto the floor using advance’s floor mounts/kits. The Floor Mount can protect the system and increase safety.

Features:

• Mounts rack to floor
• Uses existing system
• Save money on replacement parts
• Avoid injuries

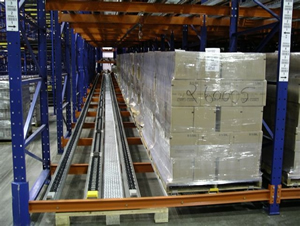

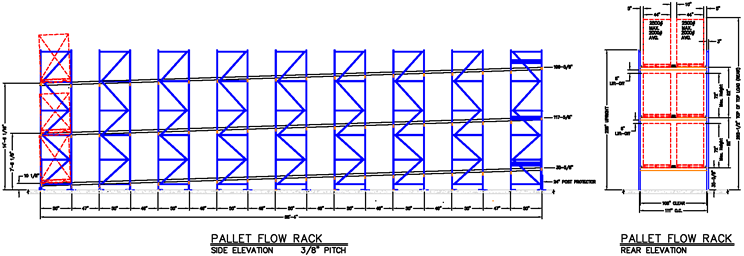

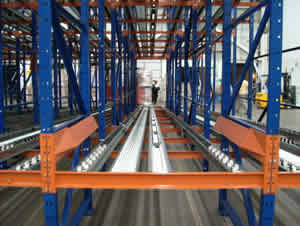

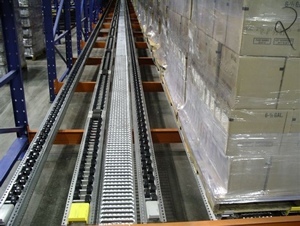

Flow Rack Systems: Pallet Flow

The Pallet Flow Rack System is a very high density storage product for business which require first in, first out storage (FIFO). The pallets are loaded into the back-end of the pallet flow rack system and flow to the front end using a braking system to protect the product. The braking system is used for systems over 3 pallets deep.

Applications:

• Manufacturing of Food

Advantages:

• First In First Out (FIFO)
• High Density Storage (25 plus pallets deep)

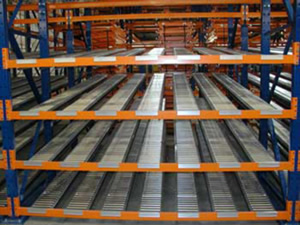

Flow Rack Systems: Carton Flow

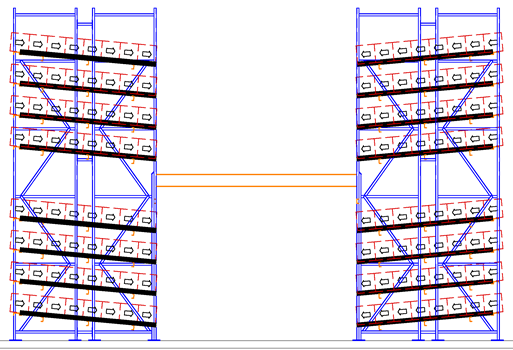

Carton flow warehouse storage racks are best for high volume split case picking and low volume case picking. Cartons Flow Storage Racks are a FIFO (First in First Out), it is loaded individually at the back side of the rack system and flows to the front.

The Carton Flow Warehouse Storage rack can be used for the following:

• Stand-alone units
• Part of an existing pallet rack
• Pick module applications
