Automated Tire Storage Utah
Download PDF Brochure
Download PDF Brochure
Automated Tire Storage Utah Automated Tire Storage Utah
Automated Tire Storage Utah

Tire Carousel

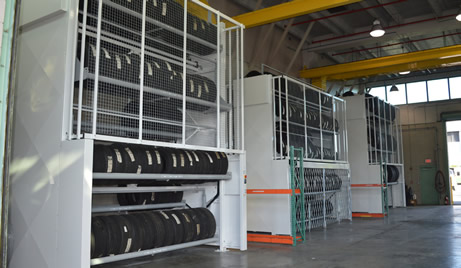

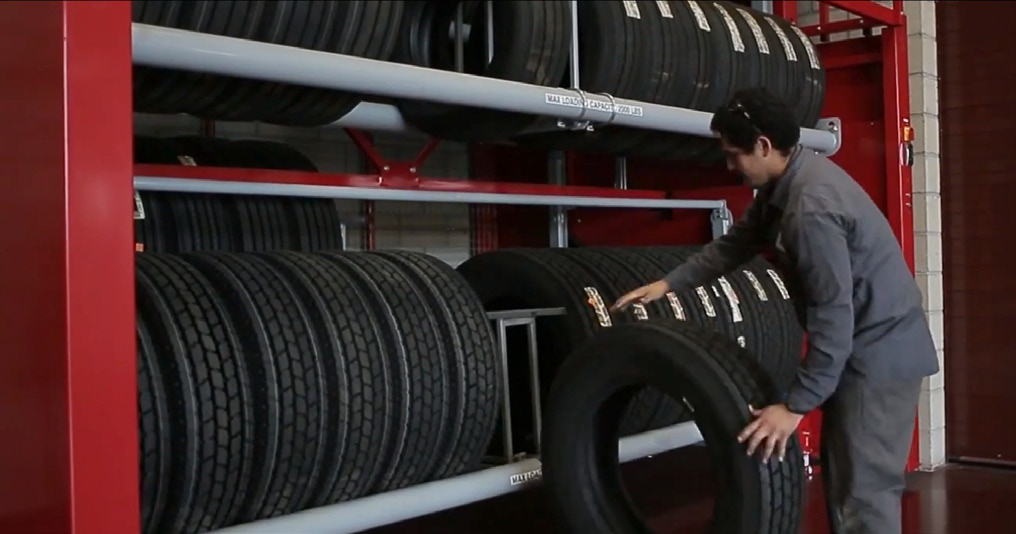

The Vidir Tire Carousel is a motorized vertical carousel designed for high density storage and retrieval of tires. The storage system can be semi or fully automated and will maximize overhead space to save up to 70% of your floor space with every tire accessible at the touch of a button. The Vertical Carousel delivers tires directly to the operator at an ergonomic height reducing chances of injuries from lifting, bending, and pulling at sub-optimal positions.

  • Up to 352 tires can be stored on a single std. carousel.
  • Accommodates tires up to 44” in std. models.
  • Store tires with or without rims.
  • Semi or Fully automated systems available.
  • Saves up to 70% of your floor space.
  • Increases workplace safety.
  • Built-to-fit specifications.
  • Improved security with security keypad and optional security gates.
  • RAL colors available.
Safe Handling, Easy Access, Maximum Storage, Fast Retrieval, Small Footprint

Tire Carousel

28” Maximum Diameter
Models Height Width Depth Carrier
Qty
Tire
Qty
T39148-0740-12 13’ 2” 14’ 9” 6’ 11” 7 147
T39188-0940-12 16’ 6” 14’ 9” 6’ 11” 9 189
T39228-1140-12 19’ 10” 14’ 9” 6’ 11” 11 231
T39268-1340-12 23’ 2” 14’ 9” 6’ 11” 13 273
T39308-1540-12 26’ 6” 14’ 9” 6’ 11” 15 315
T39148-0740-15 13’ 2” 14’ 9” 6’ 11” 7 189
T39188-0940-15 16’ 6” 17’ 9” 6’ 11” 9 243
T39228-1140-15 19’ 10” 17’ 9” 6’ 11” 11 297
T39148-0740-18 13’ 2” 17’ 9” 6’ 11” 7 224
T39188-0940-18 16’ 6” 20’ 9” 6’ 11” 9 288
T39228-1140-18 19’ 10” 20’ 9” 6’ 11” 11 352

32” Maximum Diameter
Models Height Width Depth Carrier
Qty
Tire
Qty
T45156-0744-12 14’ 2” 14’ 9” 7’ 9” 7 119
T45200-0944-12 17’ 10” 14’ 9” 7’ 9” 9 153
T45244-1144-12 21’ 6” 14’ 9” 7’ 9” 11 187
T45156-0744-15 14’ 2” 17’ 9” 7’ 9” 7 147
T45200-0944-15 17’ 10” 17’ 9” 7’ 9” 9 189

44” Maximum Diameter
Models Height Width Depth Carrier
Qty
Tire
Qty
HT54162-0563-12 15’ 2” 14’ 11” 9’ 4” 5 65
HT54193-0663-12 17’ 7” 14’ 11” 9’ 4” 6 78
HT54225-0763-12 20’ 3” 14’ 11” 9’ 4” 7 91
HT54256-0863-12 22’ 10” 14’ 11” 9’ 4” 8 104
HT54288-0963-12 25’ 6” 14’ 11” 9’ 4” 9 117
HT54319-1063-12 28’ 1” 14’ 11” 9’ 4” 10 130



What our Customers Say:

“The problem that we were having is that when we were stacking tires on the ground, it was a work compensation issue. Guys would bend over and hurt their backs. The other issue was beading the tires, when tires get squished it is very difficult to get them back on the rims. What I like most about Vidir’s carousel, is that it not only solved our problems but it holds a lot of tires in a minimum amount of square footage. I would recommend that anyone who has a tire storage issue buy one."

- David Floyd, President at Professional Auto Transport

Automated Tire Storage Utah


Automated Tire Storage Utah

“Before we got our Tire Carousel in here I could only store 100 tires because we could only stack tires 8 high. We had to stock our tires off-site resulting in inventory in 2 locations. We can now store tires all the way to our ceiling as the carousel rotates. We gained a tremendous amount of space and it increased the amount of tire SKU’s that we had on-site but decreased the amount of SKU’s that I needed overall. Instead of having 16 of one tire I was able to have 10 and then add 6 tires that I didn't have. We actually run leaner but we have more tires onsite."

- John Lloyd, Parts Manager at Thompson, Lexus

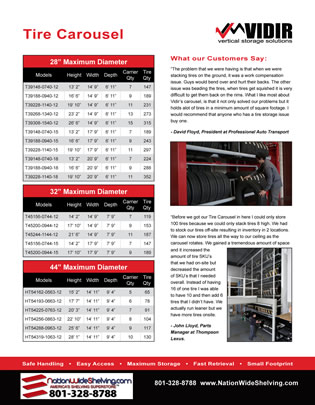

FULL BROCHURE:
Automated Tire Storage Utah Automated Tire Storage Utah
