Boltless Shelving Salt Lake City
Material Handling Catalog
Material Handling Catalog

View All PDF Brochures
View All PDF Brochures

GSA Contracts

IPA


State of Utah Contract:
MA 1231


Now Hiring Sales Reps

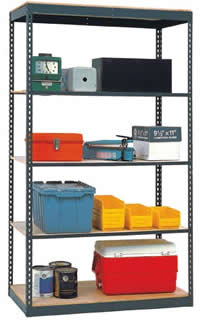

Boltless Shelving Salt Lake City

Also Know As "Wide-Span Shelving, Bulk Storage, Boltless Rack, and Backroom Shelving"

Boltless Shelving Salt Lake City

Boltless Shelving is high capacity and makes use of Double Rivet Beams, which increases the capacity of the shelf while also allowing for many applications that have a wider span. Standard boltless rivet shelving units come with three adjustable shelves, but extra shelves are available for purchase separately.

Features

  • 14-Gauge Post & 16-Gauge Post
  • Accessible From all Four Sides
  • Shelves are Adjustable Every 1.5”
  • Particle Board Decking is Optional
  • Gray Powder Coated Finish

Boltless Shelving Salt Lake City Applications

  • Bulk
  • Backroom or Retail
  • Miscellaneous, Loose, and Overflow
  • Boxes, Tubs, Crates, or Buckets
  • Office Supplies
  • Tools, Small Parts, or Warehouse
  • Automotive, Engine Parts and Power Tools

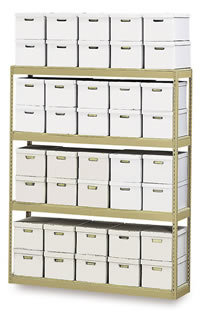

  • Records & Banker Boxes
  • Janitorial
  • Medical*
  • Almost ANYTHING!

*NSF-Approved Options

Heavy Duty

Each boltless shelf is composed of heavy-duty steel. Single Rivet is for standard weight capacity and Double Rivet is for larger weight capacity. Single Rivet is the cheapest option, although, Double Rivet only costs just a small fraction more.

Simple Assembly

Boltless Shelving is particularly easy to assemble as it does not require nuts, bolts, or shelf clips.

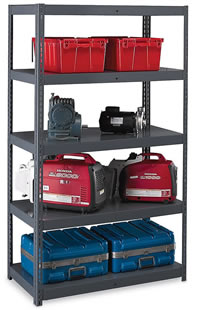

Modular Steel Boltless Shelving

The Modular Steel Boltless Rivet Shelving has a unique design which allows for several varying set-up configurations. There are two possible set-ups to choose from: a single 72” height shelving unit, or two 36” height work-centers.

  • 14-Gauge Posts
  • 16-Gauge Beams
  • Capacity of 800 Lbs. Per Shelf
  • Capacity of 4,000 Lbs. Per Unit
  • Powder Coated Gray Finish

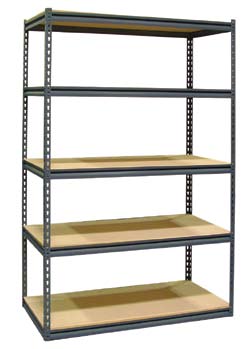

Bulk Storage Boltless Shelving

Bulk Storage Shelving is comprised of three heavy-duty shelves which can each hold up to 750 lbs. It is extremely easy to assemble, and the unit comes completely packaged and ready for quick-shipment.

  • Commercial Grade 16-Gauge Steel Frame
  • 5/8” Particle Board Decking
  • Black Powder Coated Finish

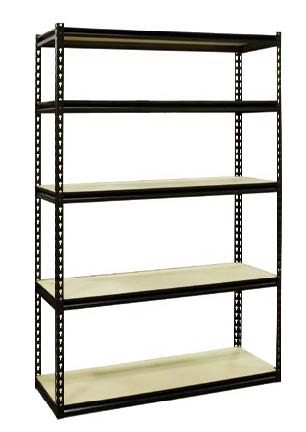

Black Z-Beam Boltless Shelving

This original Z-Beam design allows for maximum storage ability. This particle board decking sits flush with the very top of each beam. The Black Z-Beam Shelving is sold and measured by units as well as components. With each complete unit, you will receive five shelves and particle board decking.

  • Made of 16-Gauge Steel
  • ½“ Industrial Grade Particle Board Decking
  • Free of Nuts, Bolts, and Shelf Clips
  • Black Powder Coated Finish
Download PDF Brochure Boltless Rivet Shelving
Download PDF Brochure CALL NOW!
Boltless Shelving Salt Lake City Boltless Shelving Salt Lake City
Boltless Shelving Salt Lake City
Boltless Shelving Salt Lake City
Boltless Shelving Salt Lake City Boltless Shelving Salt Lake City
Boltless Shelving Salt Lake City Boltless Shelving Salt Lake City
Boltless Shelving Salt Lake City Boltless Shelving Salt Lake City
Boltless Shelving Salt Lake City Boltless Shelving Salt Lake City

Boltless Shelving:

boltless-shelving-salt-lake-city

boltless-shelving-salt-lake-city

Series 200B Bulk Storage Shelving:

Boltless Shelving is high capacity and makes use of Double Rivet Beams, which increases the capacity of the shelf while also allowing for many applications that have a wider span.  Each boltless shelf is composed of heavy-duty steel and features the Series 200 boltless design.  This particular design allows for simple installation without nuts, bolts, or shelf clips.  Standard boltless shelving units come with three adjustable shelves, but extra shelves are available for purchase separately.

  • 14-Gauge Post
  • Accessible From all Four Sides
  • Shelves are Adjustable Every 1.5”
  • Particle Board Decking is Optional
  • Gray Powder Coated Finish

Series 200A Low Profile Shelving:

Single Rivet Beams are used with this shelving to make the most of the available storage space. The Series 200A Low Profile Shelving is exceptionally easy to install as it does not require nuts, bolts, or shelf clips.

  • 14-Gauge Post
  • Accessible From All Four Sides
  • Shelves are Adjustable Every 1.5”
  • Particle Board Decking is Optional
  • Gray Powder Coated Finish
Series 200B Bulk Storage Shelving
  With Particle Board Shelves Without Particle Board Shelves
Series 200B Unit W x D x H Shelf Cap. Model Number Extra Shelf Model Number Extra Shelf
4 Ft. Width 48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 30" x 84"
48" x 36" x 84"
48" x 48" x 84"
1,000
1,000
1,000
1,000
1,000
1,000
B3-4812-84W
B3-4818-84W
B3-4824-84W
B3-4830-84W
B3-4836-84WH
B3-4848-84WH
BX1-4812-W
BX1-4818-W
BX1-4824-W
BX1-4830-W
BX1-4836-WH
BX1-4848-WH
B3-4812-84
B3-4818-84
B3-4824-84
B3-4830-84
B3-4836-84H
B3-4848-84H
BX1-4812
BX1-4818
BX1-4824
BX1-4830
BX1-4836-H
BX1-4848-H
5 Ft. Width 60" x 18" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 24" x 84"
60" x 30" x 84"
60" x 30" x 84"
60" x 36" x 84"
60" x 36" x 84"
60" x 48" x 84"
60" x 48" x 84"
750
1,200
750
1,200
750
1,200
750
1,200
750
1,200

B3-6018-84W
B3-6018-84WH
B3-6024-84W
B3-6024-84WH
B3-6030-84W
B3-6030-84WH
B3-6036-84W
B3-6036-84WH
B3-6048-84W
B3-6048-84WH

BX1-6018-W
BX1-6018-WH
BX1-6024-W
BX1-6024-WH
BX1-6030-W
BX1-6030-WH
BX1-6036-W
BX1-6036-WH
BX1-6048-W
BX1-6048-WH
B3-6018-84
B3-6018-84H
B3-6024-84
B3-6024-84H
B3-6030-84
B3-6030-84H
B3-6036-84
B3-6036-84H
B3-6048-84
B3-6048-84H
BX1-6018
BX1-6018-H
BX1-6024
BX1-6024-H
BX1-6030
BX1-6030-H
BX1-6036
BX1-6036-H
BX1-6048
BX1-6048-H
6 Ft. Width 72" x 18" x 84"
72" x 18" x 84"
72" x 18" x 84"
72" x 18" x 84"
72" x 24" x 84"
72" x 24" x 84"
72" x 24" x 84"
72" x 24" x 84"
72" x 30" x 84"
72" x 30" x 84"
72" x 30" x 84"
72" x 30" x 84"
72" x 36" x 84"
72" x 36" x 84"
72" x 36" x 84"
72" x 36" x 84"
72" x 48" x 84"
72" x 48" x 84"
72" x 48" x 84"
72" x 48" x 84"
600
1,000
1,500
2,000
600
1,000
1,500
2,000
600
1,000
1,500
2,000
600
1,000
1,500
2,000
600
1,000
1,500
2,000
B3-7218-84W
B3-7218-84WH
B3-7218-84WHC
B3-7218-84WHR
B3-7224-84W
B3-7224-84WH
B3-7224-84WHC
B3-7224-84WHR
B3-7230-84W
B3-7230-84WH
B3-7230-84WHC
B3-7230-84WHR
B3-7236-84W
B3-7236-84WH
B3-7236-84WHC
B3-7236-84WHR
B3-7248-84W
B3-7248-84WH
B3-7248-84WHC
B3-7248-84WHR
BX1-7218-W
BX1-7218-WH
BX1-7218-WHC
BX1-7218-84WHR
BX1-7224-W
BX1-7224-WH
BX1-7224-WHC
BX1-7224-WHR
BX1-7230-W
BX1-7230-WH
BX1-7230-WHC
BX1-7230-WHR
BX1-7236-W
BX1-7236-WH
BX1-7236-WHC
BX1-7236-WHR
BX1-7248-W
BX1-7248-WH
BX1-7248-WHC
BX1-7248-WHR
B3-7218-84
B3-7218-84H
B3-7218-84HC
B3-7218-84HR
B3-7224-84
B3-7224-84H
B3-7224-84HC
B3-7224-84HR
B3-7230-84
B3-7230-84H
B3-7230-84HC
B3-7230-84HR
B3-7236-84
B3-7236-84H
B3-7236-84HC
B3-7236-84HR
B3-7248-84
B3-7248-84H
B3-7248-84HC
B3-7248-84HR
BX1-7218
BX1-7218-H
BX1-7218-HC
BX1-7218-84HR
BX1-7224
BX1-7224-H
BX1-7224-HC
BX1-7224-HR
BX1-7230
BX1-7230-H
BX1-7230-HC
BX1-7230-HR
BX1-7236
BX1-7236-H
BX1-7236-HC
BX1-7236-HR
BX1-7248
BX1-7248-H
BX1-7248-HC
BX1-7248-HR
7 Ft. Width 84" x 18" x 84"
84" x 24" x 84"
84" x 30" x 84"
84" x 36" x 84"
84" x 48" x 84"
600
600
600
600
600
B3-8418-84WH
B3-8424-84WH
B3-8430-84WH
B3-8436-84WH
B3-8448-84WH

BX1-8418-WH
BX1-8424-WH
BX1-8430-WH
BX1-8436-WH
BX1-8448-WH

B3-8418-84H
B3-8424-84H
B3-8430-84H
B3-8436-84H
B3-8448-84H
BX1-8418-H
BX1-8424-H
BX1-8430-H
BX1-8436-H
BX1-8448-H
8 Ft. Width

96" x 18" x 84"
96" x 18" x 84"
96" x 18" x 84"
96" x 24" x 84"
96" x 24" x 84"
96" x 24" x 84"
96" x 30" x 84"
96" x 30" x 84"
96" x 30" x 84"
96" x 36" x 84"
96" x 36" x 84"
96" x 36" x 84"
96" x 48" x 84"
96" x 48" x 84"
96" x 48" x 84"

600
1,000
1,500
600
1,000
1,500
600
1,000
1,500
600
1,000
1,500
600
1,000
1,500
B3-9618-84WH
B3-9618-84WHC
B3-9618-84WHR
B3-9624-84WH
B3-9624-84WHC
B3-9624-84WHR
B3-9630-84WH
B3-9630-84WHC
B3-9630-84WHR
B3-9636-84WH
B3-9636-84WHC
B3-9636-84WHR
B3-9648-84WH
B3-9648-84WHC
B3-9648-84WHR
BX1-9618-WH
BX1-9618-WHC
BX1-9618-WHR
BX1-9624-WH
BX1-9624-WHC
BX1-9624-WHR
BX1-9630-WH
BX1-9630-WHC
BX1-9630-WHR
BX1-9636-WH
BX1-9636-WHC
BX1-9636-WHR
BX1-9648-WH
BX1-9648-WHC
BX1-9648-WHR
B3-9618-84H
B3-9618-84HC
B3-9618-84HR
B3-9624-84H
B3-9624-84HC
B3-9624-84HR
B3-9630-84H
B3-9630-84HC
B3-9630-84HR
B3-9636-84H
B3-9636-84HC
B3-9636-84HR
B3-9648-84H
B3-9648-84HC
B3-9648-84HR
BX1-9618-H
BX1-9618-HC
BX1-9618-HR
BX1-9624-H
BX1-9624-HC
BX1-9624-HR
BX1-9630-H
BX1-9630-HC
BX1-9630-HR
BX1-9636-H
BX1-9636-HC
BX1-9636-HR
BX1-9648-H
BX1-9648-HC
BX1-9648-HR
Series 200A Low Profile Shelving
  Standard-Duty Shelving Heavy-Duty Shelving
Shelves Unit W x D x H Shelf Cap. With Board Without Board Shelf Cap. With Board Without Board
4 Shelves 36" x 12" x 84"
36" x 18" x 84"
36" x 24" x 84"
300
300
300
A4-3612-84W
A4-3618-84W
A4-3624-84W
A4-3612-84
A4-3618-84
A4-3624-84
500
500
500
AH4-3612-84W
AH4-3618-84W
AH4-3624-84W
AH4-3612-84
AH4-3618-84
AH4-3624-84
48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 36" x 84"
225
225
225
225
A4-4812-84W
A4-4818-84W
A4-4824-84W
A4-4836-84W
A4-4812-84
A4-4818-84
A4-4824-84
A4-4836-84
375
375
375
375
AH4-4812-84W
AH4-4818-84W
AH4-4824-84W
AH4-4836-84W
AH4-4812-84
AH4-4818-84
AH4-4824-84
AH4-4836-84

60" x 12" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 36" x 84"

150
150
150
150
A4-6012-84W
A4-6018-84W
A4-6024-84W
A4-6036-84W
A4-6012-84
A4-6018-84
A4-6024-84
A4-6036-84
250
250
250
250
AH4-6012-84W
AH4-6018-84W
AH4-6024-84W
AH4-6036-84W
AH4-6012-84
AH4-6018-84
AH4-6024-84
AH4-6036-84
5 Shelves 36" x 12" x 84"
36" x 18" x 84"
36" x 24" x 84"
300
300
300

A5-3612-84W
A5-3618-84W
A5-3624-84W

A5-3612-84
A5-3618-84
A5-3624-84
500
500
500
AH5-3612-84W
AH5-3618-84W
AH5-3624-84W
AH5-3612-84
AH5-3618-84
AH5-3624-84
48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 36" x 84"
225
225
225
225
A5-4812-84W
A5-4818-84W
A5-4824-84W
A5-4836-84W
A5-4812-84
A5-4818-84
A5-4824-84
A5-4836-84
375
375
375
375
AH5-4812-84W
AH54818-84W
AH5-4824-84W
AH5-4836-84W
AH5-4812-84
AH5-4818-84
AH5-4824-84
AH5-4836-84
60" x 12" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 36" x 84"
150
150
150
150
A5-6012-84W
A5-6018-84W
A5-6024-84W
A5-6036-84W
A5-6012-84
A5-6018-84
A5-6024-84
A5-6036-84
250
250
250
250
AH5-6012-84W
AH5-6018-84W
AH5-6024-84W
AH5-6036-84W
AH5-6012-84
AH5-6018-84
AH5-6024-84
AH5-6036-84
6 Shelves 36" x 12" x 84"
36" x 18" x 84"
36" x 24" x 84"
300
300
300
A6-3612-84W
A6-3618-84W
A6-3624-84W
A6-3612-84
A6-3618-84
A6-3624-84
500
500
500
AH6-3612-84W
AH6-3618-84W
AH6-3624-84W

AH6-3612-84
AH6-3618-84
AH6-3624-84
48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 36" x 84"
225
225
225
225
A6-4812-84W
A6-4818-84W
A6-4824-84W
A6-4836-84W
A6-4812-84
A6-4818-84
A6-4824-84
A6-4836-84
375
375
375
375
AH6-4812-84W
AH6-4818-84W
AH6-4824-84W
AH6-4836-84W
AH6-4812-84
AH6-4818-84
AH6-4824-84
AH6-4836-84
60" x 12" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 36" x 84"
150
150
150
150
A6-6012-84W
A6-6018-84W
A6-6024-84W
A6-6036-84W
A6-6012-84
A6-6018-84
A6-6024-84
A6-6036-84
250
250
250
250
AH6-6012-84W
AH6-6018-84W
AH6-6024-84W
AH6-6036-84W
AH6-6012-84
AH6-6018-84
AH6-6024-84
AH6-6036-84
Extra Shelves 36" x 12"
36" x 18"
36" x 24"
300
300
300
AX1-3612-W
AX1-3618-W
AX1-3624-W

AX1-3612
AX1-3618
AX1-3624

500
500
500
AXH1-3612-W
AXH1-3618-W
AXH1-3624-W
AXH1-3612
AXH1-3618
AXH1-3624

48" x 12"
48" x 18"
48" x 24"
48" x 36"

225
225
225
225
AX1-4812-W
AX1-4818-W
AX1-4824-W
AX1-4836-W
AX1-4812
AX1-4818
AX1-4824
AX1-4836
375
375
375
375
AXH1-4812-W
AXH1-4818-W
AXH1-4824-W
AXH1-4836-W
AXH1-4812
AXH1-4818
AXH1-4824
AXH1-4836
60" x 12"
60" x 18"
60" x 24"
60" x 36"
150
150
150
150
AX1-6012-W
AX1-6018-W
AX1-6024-W
AX1-6036-W
AX1-6012
AX1-6018
AX1-6024
AX1-6036
250
250
250
250
AXH1-6012-W
AXH1-6018-W
AXH1-6024-W
AXH1-6036-W
AXH1-6012
AXH1-6018
AXH1-6024
AXH1-6036
Boltless Shelving Components:
Boltless Shelving Salt Lake City

Upright Post:

  • 14-Gauge Construction
  • 1.5” x 1.5” Regular-Duty Post
  • 1.75” x 1.75” Heavy-Duty Post
  • Gray Powder Coated Finish
Boltless Shelving Salt Lake City

Double Rivet Beam:

  • 16-Gauge Construction (200-DR12 – 200-DR48)
  • 14-Gauge Construction (200-DR60 – 200-DR96)
  • 2.75” Height
  • Can Be Used Left-to-Right or Front-to-Back
  • Gray Powder Coated Finish



Boltless Shelving Salt Lake City

Single Rivet Beam:

  • Regular-Duty – 14-Gauge
  • Heavy-Duty – 11-Gauge
  • 1” Height
  • Can Be Used Left-to-Right or Front-to-Back
  • Gray Powder Coated Finish
Boltless Shelving Salt Lake City

Double Rivet Channel Beam:

  • Regular-Duty – 14-Gauge
  • Heavy-Duty – 11-Gauge
  • 2.75” Height
  • Recommended Use is Left-to-Right
  • Gray Powder Coated Finish



Boltless Shelving Salt Lake City

Tie Plate:

  • Connects units side by side in rows
  • Gray powder coated finish



Boltless Shelving Salt Lake City

Footplates:

  • Anchors Units to the Ground
  • Gray Powder Coated Finish
Boltless Shelving Salt Lake City

Shelf Deck Support:

  • 16-Gauge Construction
  • 2.5” Height
  • Increases Strength of Shelf When Bolted Between Double Rivet Beams or Double Rivet Channel Beams
  • Gray Powder Coated Finish



Boltless Shelving Salt Lake City

Shelving Label Holders:

  • Made of Strong, Clear Plastic
  • Insert Paper is Included



Boltless Shelving Salt Lake City

Particle Board Decking:

  • ½“ Thick Particle Board – Light-Duty to Standard Applications
  • ¾” Thick Particle Board – Heavy-Duty Applications



Boltless Shelving Salt Lake City

Mobile Shelf Cart Bases:

  • Composed of Heavy-Duty Steel
  • Available in Various Sizes
  • 5” or 6” Casters Available
  • Gray Powder Coated Finish
Boltless Shelving Salt Lake City

Wall Tie:

  • Allows for 9” of Space Between Wall and Units
  • Locks Boltless Shelving Units to Wall
  • Gray Powder Coated Finish




Upright Post
Regular Duty Heavy Duty
Part Number Height Part Number Height
200-P2.5
200-P3
200-P4
200-P5
200-P6
200-P7
200-P8
200-P9
200-P10
200-P12

2.5'
3.0'
4.0'
5.0'
6.0'
7.0'
8.0'
9.0'
10.0'
12.0'

200-PH7
200-PH8
200-PH10
200-PH12
7'
8'
10'
12'
Double Rivet Beam
Part Number Length

200-DR12
200-DR15
200-DR18
200-DR24
200-DR30
200-DR36
200-DR42
200-DR48
200-DR60
200-DR69
200-DR72
200-DR84
200-DR96

12”
15”
18”
24”
30”
36”
42”
48”
60”
69”
72”
84”
96”

Single Rivet Beam
Regular Duty Heavy Duty
Part Number Length Part Number Length
200-SR12
200-SR18
200-SR24
200-SR30
200-SR36
200-SR42
200-SR48

12"
18"
24"
30"
36"
42"
48"

200-SRH36
200-SRH48
200-SRH60

36"
48"
60"

Double Rivet Channel Beam
Regular Duty Heavy Duty
Part Number Length Part Number Length
200-DC72
200-DC96

72"
96"

200-DCH72
200-DCH96
72"
96"
Footplates
Part Number
200-FPD (Double)
200-FPR (Right)
200-FPL (Left)
Tie Plate
Part Number
200-TP
Shelf Deck Support
Part Number Length
200-SDS12
200-SDS15
200-SDS18
200-SDS24
200-SDS30
200-SDS36
200-SDS48
12"
15"
18"
24"
30"
36"
48"
Shelving Label Holders
Part Number Description Qty. Per Pack
200-L231
200-L211
200-L251

3/4" x 6", Self-Adhesive
1" x 6", Self-Adhesive
2" x 6", Self-Adhesive

12
12
12
200-M211
200-M261
1" x 6", Magnetic
2.5" x 6", Magnetic
12
12









Mobile Shelf Cart Bases
  with 5" Casters with 6" Casters
Size L x W

Part Number

Part Number
36" x 12"
36" x 18"
36" x 24"
MCKA5-3612
MCKA5-3618
MCKA5-3624
N/A
MCKA6-3618
MCKA6-3624
48" x 12"
48" x 18"
48" x 24"
48" x 36"
MCKA5-4812
MCKA5-4818
MCKA5-4824
MCKA5-4836
MCKA6-4812
MCKA6-4818
MCKA6-4824
MCKA6-4836
60" x 18"
60" x 24"
60" x 30"
60" x 36"
MCKA5-6018
MCKA5-6024
MCKA5-6030
MCKA5-6036
MCKA6-6018
MCKA6-6024
MCKA6-6030
MCKA6-6036
Wall Tie
Part Number Length
200-WT09 9.25"





Particle Board Decking
  1/2" Particle Board 3/4" Particle Board
Size W & D Model Number Model Number
3' Wide Board
36" x 12"
36" x 18"
36" x 24"
36" x 36"
240-013612
240-013618
240-013624
240-013636
240-023612
240-023618
240-023624
240-023636
3.5' Wide Board
42" x 15"
42" x 30"
240-014215
240-014230
240-024215
240-024230
4' Wide Board
48" x 12"
48" x 18"
48" x 24"
48" x 30"
48" x 36"
48" x 48"
240-014812
240-014818
240-014824
240-014830
240-014836
240-014848
240-024812
240-024818
240-024824
240-024830
240-024836
240-024848
5' Wide Board
60" x 12"
60" x 18"
60" x 24"
60" x 30"
60" x 36"
60" x 48"
240-016012
240-016018
240-016024
240-016030
240-016036
240-016048
240-026012
240-026018
240-026024
240-026030
240-026036
240-026048
5.75' Wide Board
69" x 15"
69" x 30"
240-016915
240-016930
240-026915
240-026930
6' Wide Board
72" x 12"
72" x 18"
72" x 24"
72" x 30"
72" x 36"
72" x 48"
240-017212
240-017218
240-017224
240-017230
240-017236
240-017248
240-027212
240-027218
240-027224
240-027230
240-027236
240-027248
7' Wide Board
84" x 12"
84" x 18"
84" x 24"
84" x 30"
84" x 36"
84" x 48"
240-018412
240-018418
240-018424
240-018430
240-018436
240-018448
240-028412
240-028418
240-028424
240-028430
240-028436
240-028448
8' Wide Board
96" x 12"
96" x 18"
96" x 24"
96" x 30"
96" x 36"
96" x 48"
240-019612
240-019618
240-019624
240-019630
240-019636
240-019648
240-029612
240-029618
240-029624
240-029630
240-029636
240-029648

Order by Phone!
801-328-8788
boltless-shelving-salt-lake-city

Black Z-Beam Shelving:

Boltless Shelving Salt Lake City

This original Z-Beam design allows for maximum storage ability.  This particle board decking sits flush with the very top of each beam.  The Black Z-Beam Shelving is sold and measured by units as well as components.  With each complete unit, you will receive five shelves and particle board decking.

  • Made of 16-Gauge Steel
  • ½“ Industrial Grade Particle Board Decking
  • Free of Nuts, Bolts, and Shelf Clips
  • Black Powder Coated Finish



Black Z-Beam Shelving
  5-Shelf Unit Extra Shelf
W x D x H Shelf Cap. Weight Model Number Price Weight Model Number Price
36" x 12" x 72"
36" x 18" x 72"
36" x 24" x 72"

500
500
500

59
76
93
L5-3612-72W
L5-3618-72W
L5-3624-72W
$98.33
112.98
128.33

10
14
17

LX1-3612-W
LX1-3618-W
LX1-3624-W
13.93
16.86
19.93
48" x 12" x 72"
48" x 18" x 72"
48" x 24" x 72"
500
500
500

73
95
118

L5-4812-72W
L5-4818-72W
L5-4824-72W

115.38
133.13
151.58

13
18
22

LX1-4812-W
LX1-4818-W
LX1-4824-W
17.34
20.89
24.58
Double Rivet Z-Beams
Length WT. Model Number Price
12"
18"
24"
36"
48"

0.5
0.7
1.0
1.5
1.9

200-ZBDR12
200-ZBDR18
200-ZBDR24
200-ZBDR36
200-ZBDR48
$1.40
1.93
2.53
3.69
4.77
Upright Post
Height WT. Model Number Price
72"

2.5

200-ZBP072 $7.17
1/2" Particle Board Decking
W x D WT. Model Number Price
36" x 12"
36" x 18"
36" x 24"
48" x 12"
48" x 18"
48" x 24"

6.0
9.0
12.0
8.0
12.0
15.9

240-013612
240-013618
240-013624
240-014812
240-014818
240-014824

$3.75
5.62
7.49
5.00
7.49
9.98



Order by Phone!
801-328-8788

Prepackaged Shelving:

Boltless Shelving Salt Lake City

Modular Steel Shelving:

The Modular Steel Shelving has a unique design which allows for several varying set-up configurations.  There are two possible set-ups to choose from:  a single 72” height shelving unit, or two 36” height work-centers.  Either option can be assembled in minutes, using no nuts, bolts, or shelf clips.  Each shelf does include particle board decking.

  • 14-Gauge Posts
  • 16-Gauge Beams
  • Capacity of 800 Lbs. Per Shelf
  • Capacity of 4,000 Lbs. Per Unit
  • Powder Coated Gray Finish

Modular Steel Shelving Units

W x D x H Weight Model Number Price
36" x 18" x 72"
48" x 24" x 72"

85.0
125.5

200-XR1505
200-XR2505
$119.41
165.60



Bulk Storage Shelving:

Bulk Storage Shelving is comprised of three heavy-duty shelves which can each hold up to 750 lbs.  It is extremely easy to assemble, and the unit comes completely packaged and ready for quick-shipment.

  • Commercial Grade 16-Gauge Steel Frame
  • 5/8” Particle Board Decking
  • Black Powder Coated Finish





Bulk Storage Shelving Units

W x D x H Weight Model Number Price
72" x 18" x 72"

126.0

215-XP7218 $194.16



Order by Phone!
801-328-8788
boltless-shelving-salt-lake-city

NationWide Shelving offers Boltless Shelving Salt Lake City for Industrial Storage Applications which can save you time and space. Interlake Pallet Rack, Erectomatic, H-Post, Wide Span System, RivetRite, Boltless and other products make one full line!

We have what you need. Our business is to weigh your goals, and deliver a system to compliment them.

Custom Design 801-328-8788

Our highly trained designers will take the measurements of your space, and assure you get the most possible storage Simple to complex solutions for all forms of shelving, including sophisticated multi-level and modular applications.

Industrial Applications? 801-328-8788

Boltless Shelving are carefully engineered systems designed to provide highly efficient storage of palletized items.

Unparalleled Experience 801-328-8788
With decades of hands on design, installation, and manufacturing experience, no other shelving company has the expertise to match that of NationWide Shelving. We have installed thousands of Penco shelving systems all over the nation. We understand the storage challenges you face, and have designers ready to create innovative solutions.

Quality and Value
Here at NationWide Shelving, we have the most competitive prices on the market today. We also guarantee our products to be among the best of the best for high quality. You will always find a great value when you do business with us.


Penco's wide variety of industrial furniture to make your workplace more organized and productive

Republic Storage Systems

Boltless Shelving Specifications

Angle Post

Post material shall be 14 gauge, hot-rolled, pickled and oiled steel. Angle post shall be roll formed, the overall shape being that of an angle, the side leg which shall be 1-7/8", and the front leg which shall be 1". The 1-7/8" leg of the angle shall have a channel shaped rolled into it for added strength. Both legs shall be punched with 5/16" diameter holes on 1-1/2" centers for attaching shelves, backs, uprights and accessories. Rectangular slots 7/16" x 15/32" shall be punched in the 1-7/8" leg to accommodate shelf Boltless. Posts shall be longer by 1" than the designated length in feet. Available heights are 3'1" through 16'1". Angle posts are available in 1-1/2" height increments. Overall height of spliced posts will be 2" over the nominal full foot heights.

Beaded Post

Post material shall be 14 gauge, hot-rolled, pickled and oiled steel. Front face of beaded post 7/8". Overall side dimension of post 2-11/16". Post sides to be punched with 5/16" diameter holes on 1-1/2" centers for attaching shelves, side sheets and accessories. 7/16" x 15/32" rectangular slots shall be punched on 1-1/2" centers on both sides for attaching shelf Boltless. Posts shall be longer by 1" than the designated length in feet. Available heights are 3'1" through 16'1". Beaded posts are available in 1-1/2" height increments. Overall height of spliced posts will be 2" over the nominal full foot heights. Beaded posts are shipped bundled.

Heavy Duty Post

Post material shall be 14 gauge, hot-rolled, pickled and oiled steel. Rectangular shape with the front width 2" and the side 29/32". Overall depth of post 2-11/16". Post sides punched with 11/32" diameter holes near front, 11/32" x 7/16" oval slots and 15/32" x 7/16" rectangular slots. Keystone slots in front of post 1-1/8" long. Posts are available without keystone slots if required. All holes and slots on 1-1/2" centers. Standard heights 7'1", 8'1", 9'1", 10'1", 11'1" and 12'1". Special heights on 1-1/2" increments. Heavy duty posts are shipped bundled.

Angle Post Splice

Post splice shall be made from 13 gauge, hot-rolled steel. Angle shaped 3/4" x 1-1/8". Length 5". Punched with four 5/16" diameter holes on each leg of angle for attaching to angle posts. Used to tie two angle posts together to obtain higher units. Post splices shipped in cartons.

Beaded Post Splice

Post splice shall be made from 1/4" x 1-1/4" bar stock. Length 5". Punched with four 5/16" diameter holes for attaching to beaded posts. Used to tie two beaded posts together to obtain higher units. Post splices are shipped in cartons.

Heavy Duty Post Splice

Post splice shall be made from 14 gauge steel. Channel shaped and 10" long. Punched with 8 slots 11/32" x 1/2". Splice used to tie two heavy duty posts together to obtain heights greater than 12'1". Post splices are shipped in cartons.

Angle/Beaded Post Foot Plate

Foot plate shall be made from 13 gauge, hot-rolled pickled steel. Used for anchoring angle or beaded posts to floor, also to spread post load over more floor area. Punched with one 5/16" diameter hole for attaching to post and two 7/16" diameter holes for inserting an anchor bolt. Floor must be drilled for anchoring. Size 2-1/8" x 2-7/8". Finish bright zinc plated. Foot plates are shipped in cartons. Anchor bolt not included.

Heavy Duty Foot Plate

Foot plate shall be made from 10 gauge, hot-rolled steel. Punched with 11/32" diameter hole for attaching to post and two 7/16" diameter holes for inserting an anchor bolt. Size 2-7/16" x 3-1/2". Foot plates are shipped in cartons. Anchor bolt not included.

Series 2000 Boltless Shelf

Series 2000 shelf shall be made from 18, 20 or 22 gauge, cold-rolled steel. Has 1-1/4" face on all four sides. Front and rear faces have a closed box formation nominal 1-1/4" x 3/4" bottom flange. The box formation is spot welded to the underside of the shelf on a maximum 8" centers. Sides have a 1/2" bottom return flange at 90 degrees. Shelf is interchangeable for top, bottom or intermediate positions. All four corners are reinforced by lapping and spot welding. Typical widths are 24", 30", 36", 42", 48", 54" and 60". Standard depths are 9", 12", 15", 18", 24", 30", 32" and 36". Overall depth dimension is 5/32" less than nominal size. Overall width dimension is 7/16" less than nominal size. Shelf punched for attaching shelf dividers on 1" centers. Both front and rear faces of shelf are punched for attaching label holder. All four sides of shelf punched at corner for bolting if bolted construction is desired. "Republic, Canton, OH-USA" is stamped on two diagonally opposite corners of the shelf front and rear flange. 18 gauge shelves are stamped on the front and rear flange with the letter "H"; 20 gauge shelves are stamped with the letter "M"; and 22 gauge shelves are stamped with the letter "L". Shelves are shipped in cartons or can be bulk palletized.

Open Flange Boltless Shelf - Plain

Open flange shelf made from 18 or 20 gauge, cold-rolled steel. Has 1-3/16" face on all four sides. Front and rear faces have 3/8" return flange at 45 degrees. Sides have 3/8" return flange at 90 degrees. Shelf is interchangeable for top, bottom or intermediate positions. All four corners are reinforced by lapping and spot welding. Overall depth dimension is 3/16" less than nominal size. Overall width dimension is 7/16" less than nominal size. Shelf punched for attaching shelf dividers on 2" centers. Both front and rear face of shelf punched for attaching angle sway braces. Front and rear face of shelf punched with additional hole in center for attaching label holder. All four sides of shelf punched at corner for bolting if bolted construction is desired. Typical widths are 24", 30", 36", 42" and 48". Standard depths are 12", 15", 18", 24", 30", 32" and 36". "Republic, Canton, OH-USA" is stamped on two diagonally opposite corners of the shelf front and rear flange. 18 gauge shelves are stamped on the front and rear flange with the letter "H" and 20 gauge shelves are stamped with the letter "M". Shelves are shipped in cartons or can be bulk palletized.

Open Flange Boltless Shelf - Class 1B

Class 1B shelf is available in the same specification and sizes as an open flange Boltless shelf except front face is reinforced with 1" x 1/8" band iron bar. Reinforcing bar is attached and locked in place (dimple and crimp) at factory. Alternately, the reinforcing bar can be installed in the field using three 1/4" diameter truss head bolts and hex nuts. Class 1B shelves are shipped in cartons or can be bulk palletized.

Open Flange Boltless Shelf - Class 2B

Class 2B shelf is available in the same specification and sizes as an open flange Boltless shelf except both front and rear faces are reinforced with 1" x 1/8" band iron bar. Reinforcing bars are attached at factory and locked in place (dimple and crimp). Alternately, the reinforcing bars can be installed in the field using three 1/4" diameter truss head bolts and hex nuts. Class 2B shelves are shipped in cartons or can be bulk palletized.

Shelf Reinforcing Bars

Bars shall be made from 1" x 1/8" band iron and are used to reinforce Class 1B and 2B shelves. Normally attached to shelf at factory. Standard widths 24", 30", 36", 42" and 48". Reinforcing bars can be installed in the field using three 1/4" diameter truss head bolts and hex nuts. Reinforcing bars are shipped bundled.

Shelf Reinforcing Angles

Angles shall be 1" x 1" made from 11 gauge, hot-rolled steel and are used to reinforce open flange Boltless shelves. Reinforcing angles not installed at factory. Must be attached by means of bolts and nuts in the field. Reinforcing angles can be used with angle sway braces and label holders. Standard sizes 24", 30", 36", 42" and 48". Reinforcing angles are shipped bundled.

Shelf Reinforcing Hat Channel - Open Flange Boltless Shelf Only

Reinforcing hat channel shall be made of 12 gauge hot rolled steel. The reinforcing hat channel is used to reinforce open flange shelves at the center. They are only used with 18 gauge shelves. When used with side shelf supports and front and rear shelf reinforcing bars, a class 3 shelf is created. Will be punched at ends for attaching to side shelf supports. The shape is that of a hat. The flanges are 1/2" long. The height of the hat is 1-1/16". The width of the hat is 3/4" at the top. This channel is field attached. Lengths are available for 30", 36", 42" & 48" shelves. Reinforcing hat channels are shipped in cartons.

Shelf Reinforcing Hat Channel - Series 2000 Boltless Shelf Only

Reinforcing hat channel shall be made of 16 gauge, cold-rolled steel. The reinforcing hat channel is used to reinforce Series 2000 shelves at the center. They are only used with 18 gauge shelves. When used with side shelf supports a class 3 shelf is created. Will be punched at ends for attaching to side shelf supports. The shape is that of a hat. The flanges are 3/4" long. The height of the hat is 1-9/64". The width of the hat is 1-1/4" at the top. This channel is field attached. Lengths are available for 30", 36", 42" & 48" shelves. Reinforcing hat channels are shipped in cartons.

Side Shelf Support

Side shelf support shall be made from 13 gauge, hot-rolled steel. Each end of side shelf support provided with two lugs for attaching to posts. Top edge offset at each end to hold shelf and flanged at the center to support the shelf reinforcing hat channel. Flange at center provided with hole for attaching shelf reinforcing hat channel. Standard sizes 18", 24", 30" and 36". To be used in pairs. Overall length dimension is 1-3/16" less than listed size. Side shelf supports are shipped in cartons.

Shelf Boltless

Shelf Boltless shall be made from 13 gauge, hot-rolled, pickled and oiled steel. Width 29/32", overall length 3-17/64". Finish shall be bright zinc plated. "Republic" is stamped on the inside surface of shelf Boltless. Shelf Boltless. are available in packages of 100 or can be bulk shipped in cartons. Four shelf Boltless. per shelf are automatically furnished with Open Flange and Series 2000 Boltless Shelves.

Half Shelf Boltless

Half shelf Boltless shall be made from 13 gauge, hot-rolled, pickled and oiled steel. Width 29/32", overall length 2-11/32". Finish shall be bright zinc plated. When 1-1/2" bases are ordered, 4 half Boltless. are automatically furnished.

Backs

Backs shall be made from 24 gauge, cold-rolled steel. Back shall have three rows of 3/8" diameter holes punched on 1-1/2" centers. The two outside rows punched to coincide with the holes in the 1" flange of the angle post. The middle row of holes shall be used to attach back to open flange shelves by use of back Boltless. Width of back is 13/16" less than nominal sizes. Standard widths 24", 30", 36", 42", 48", 54" and 60". Standard heights 3'1", 3'4", 5'1", 6'1", 7'1" and 8'1". 54" & 60" wide backs are limited to a maximum height of 5'-1". Backs are available in 1-1/2" increments. On shelving units above 8'-1" that do not use spliced posts, two shorter backs will be combined to achieve the necessary height (i.e. two 5'-1" backs would be used for a 10'-1" unit). A minimum of 1" overlap would result. On units where the posts are spliced, the height of the back will match the height of the post making the unit 2" taller than nominal. Back splices may be required where the backs are exposed. Backs are shipped bundled.

Back Boltless (used with Open Flange Boltless Shelf only)

Back Boltless shall be made from 20 gauge, cold-rolled steel. 1" wide by 3-5/8" long. Finish shall be bright zinc plated. Used to attach open flange shelf to back on single-faced, closed-type unit. "Back shelf only" is stamped on surface of back Boltless. Back Boltless. are available in packages of 100 or can be bulk shipped in cartons. Back Boltless. are automatically furnished with backs.

Back Splice

Back splice shall be made from 22 gauge, cold-rolled steel. Height 5", standard widths 24", 30", 36", 42", 48", 54" and 60". Punched with three rows of 5/16" diameter holes for attaching to backs and posts. Used to tie backs when posts are spliced and the backs are exposed. Overall width is 3/16" less than listed size. Back splices are shipped bundled.

Upright Side Sheet

Upright side sheet shall be made from 24 gauge, cold-rolled steel. Each side punched with 3/8" diameter holes on 1-1/2" centers. No center row of holes. Overall depth dimension is 2-9/16" less than listed depths. Standard available depths are 12", 15", 18", 24", 30", 32" and 36". Heights available 3'1" to 8'1" in height increments of 1-1/2". On shelving units above 8'-1" that do not use spliced posts, two shorter upright sheets will be combined to get the necessary height (i.e. two 5'-1" would be used for a 10'-1" unit). A minimum of 1" overlap would result. On units where the posts are spliced, the height of the upright sheet will match the height of the post making the unit 2" taller than nominal. Side sheet splices may be required where the Upright Side Sheets are exposed. Upright side sheets are shipped bundled.

Side Sheet Splice

Side sheet splice shall be made from 22 gauge, cold-rolled steel. Height 5", standard depths 12", 15", 18", 24", 30", 32" and 36". Overall depth is 2-5/8" less than listed size. Offset at each end to fit around post. Each end punched with four 5/16" diameter holes for attaching to upright and posts. Used to tie Upright Sheets together when posts are spliced and the Upright Sheets are exposed. Side sheet splices are shipped bundled.

End Upright Assembly - Angle Post

End upright assembly consists of one plain upright sheet and two angle posts welded together to form one assembly. Maximum spacing of spot welds shall be 7-1/2" centers. Heights available 3'1" to 10'1" in height increments of 1-1/2". Heights greater than 10'1" may be obtained by splicing two standard size end upright assemblies together with angle post splices. Overall height of spliced upright will be 2" over nominal full foot height. End upright assemblies are shipped bundled.

Intermediate Upright Assemblies - Angle Post

Intermediate upright assembly consists of one plain upright sheet and four angle posts welded together to form one assembly. Maximum spacing of spot welds shall be 7-1/2" centers. Heights available 3'1" to 10'1" in height increments of 1-1/2". Heights greater than 10'1" may be obtained by splicing two standard size intermediate upright assemblies together with angle post splices. Overall height of spliced upright will be 2" over nominal full foot height. Intermediate upright assemblies are shipped bundled.

End Upright Assembly - Beaded & Angle Post

Beaded post end upright assembly consists of one plain upright sheet, one beaded post and one angle post welded together to form one assembly. Maximum spacing of spot welds shall be 7-1/2" centers. Heights available 3'1" to 10'1" in height increments of 1-1/2". Heights greater than 10'1" may be obtained by splicing two standard size end upright assemblies together with beaded and angle post splices. Overall height of spliced upright will be 2" over nominal full foot height. Beaded post end upright assemblies are shipped bundled.

Intermediate Upright Assembly - Beaded & Angle Post

Beaded post intermediate upright assembly consists of one plain upright sheet, one beaded post and two angle posts welded together to form one assembly. Maximum spacing of spot welds shall be 7-1/2" centers. Heights available 3'1" to 10'1" in height increments of 1-1/2". Heights greater than 10'1" may be obtained by splicing two standard size intermediate upright assemblies together with beaded and angle post splices. Overall height of spliced upright will be 2" over nominal full foot height. Beaded post intermediate upright assemblies are shipped bundled.

Sway Braces - Side or Back

Diagonal sway braces shall be made from 3/4" x 12 gauge steel and are punched at each end with 9/32" diameter hole for attaching to angle or beaded post. Standard sizes 20-7/8" long for units 9" and 15" deep; 34-11/16" long for units 12" and 24" deep, and units 24" wide; 40-29/32" long for units 18" and 24" deep, and for units 30" wide; 46-21/32" for units 32" deep; 50-7/16" long for units 30" and 36" deep, and units 36" wide; 62-9/32" long for units 42" and 48" wide; 64-9/32" long for units 54" wide and 69-5/16" for units 60" wide. Sway braces are shipped bundled.

Angle Sway Braces

Angle sway braces shall be made from 12-gauge, hot-rolled steel. Each leg of right angle is 25/32" wide by 4" long. Punched with holes for attaching to angle post and open flange shelf. Used when diagonal sway braces are not desired on back of units. Cannot be used with Series 2000 shelf. Angle sway braces are shipped in cartons.

Heavy Duty Side Sway Braces

Sway brace shall be made from 1" x 11 gauge steel with two 11/32" diameter end holes. Formed with offset 4" from each end. Approximate lengths are 35-1/8", 44-5/8", 51-5/8" and 65". Sway braces are shipped bundled.

Heavy Duty Rear Sway Braces

Sway brace shall be made from 1" x 11 gauge steel with two 11/32" diameter end holes. Attachment Boltless material is 14 gauge, angle shaped with 7/8" leg and 1-5/8" leg, 2-5/8" long. Sway braces are shipped bundled.

Heavy Duty Tie Boltless.

Tie Boltless material shall be 16 gauge, cold-rolled steel. Oval shaped 1" x 1-11/16" long with two 11/32" diameter holes. Used to tie back to back heavy posts together. Tie Boltless. are shipped in cartons.

Front Base - Angle and Beaded Post

Front base shall be made from 22 gauge, cold-rolled steel in widths up to 48" and 18 gauge for 54" and 60" wide. The top and bottom flanges are 1/2". The 1-1/2" and 3" high bases are punched with one hole at each end. The 4-1/2" base is punched at each end with two holes. The 1-1/2" high base positions the bottom shelf 2-1/2" off the floor. The 3" high base positions the bottom shelf 4" off the floor and the 4-1/2" base positions the bottom shelf 5-1/2" off the floor. Standard heights 1-1/2", 3" and 4-1/2". Standard widths 24", 30", 36", 42", 48", 54" and 60". Base fronts shipped in cartons. Overall height dimension is 1/8" less than listed size. Overall length dimension 5/8" less than listed size.

Front Base Attachment (Angle Post)

Front base for angle posts is attached to post by two Tinnerman nuts and two #10 x 1/2" sheet metal screws. On 4-1/2" high bases, use four attachments. Half shelf Boltless. are automatically furnished with 1-1/2" bases.

Front Base Attachment (Beaded Post)

Front base for beaded posts is attached by using two base Boltless. and attached to the post with bolts and nuts. The base Boltless is then attached to the base front by sheet metal screws. On 4-1/2" high bases, use four attachments. Half shelf Boltless. are automatically furnished with 1-1/2" bases.

Base Boltless

Base Boltless used to attach front bases to beaded post. Boltless is made from 18 gauge steel. One side punched with 5/16" diameter hole for attaching to beaded post with bolt and nut. Other side punched with 5/32" diameter hole for attaching to front base with sheet metal screw. The base Boltless used with 1-1/2" high bases is 7/16" wide x 1" high x 1-5/16" deep. The base Boltless used with 3" and 4-1/2" high bases is 1-1/16" wide x 3/4" high x 1-1/16" deep. Different Boltless. are used because on the 1-1/2" high base the base Boltless bolts to the half shelf Boltless. Finish bright zinc plated. Base Boltless. are shipped in cartons.

End Base

End base shall be made of 22 gauge, cold-rolled steel. Base end is attached by two Tinnerman nuts, and two #10 x 3/4" sheet metal screws. End base may be used with angle, beaded or heavy duty posts. Standard heights 1-1/2" and 3". Standard depths 12", 15", 18", 24", 30" and 36". Overall length is 2-11/32" less than listed size. Overall height dimension is 1/8" less than listed size. End bases are shipped bundled.

Universal Bin Front - Angle and Beaded Post

Bin fronts are universal for angle and beaded posts. Bin front shall be made from 18 gauge, cold-rolled steel. Top and bottom have flanges so bin front may be used as a card holder. Overall width is 7/8" less than listed lengths. Standard heights 1-1/2", 3", 4-1/2" and 6". Standard widths 36", 42" and 48". Two end Boltless. required for each bin front. Bin fronts are shipped in cartons.

Bin Front Boltless

Bin front Boltless shall be made from 18 gauge, cold-rolled steel. Left hand and right hand Boltless. provided with lugs to hold Boltless. to posts. A locking tab is provided at bottom of Boltless so bin Boltless will not lift out of post slots when removing bin fronts. Boltless. formed to provide channel to hold bin front in place. Bright zinc plated finish. Two Boltless. furnished with 1-1/2" and 3" high bin fronts. Four Boltless. furnished with 4-1/2" and 6" high bin fronts. Bin front Boltless. are shipped in cartons.

Label Holder

Label holder shall be made from 28 gauge, cold-rolled steel. Face of label holder 7/8" and punched with three 5/16" diameter holes for attaching to front face of open flange shelf with Tinnerman Boltless. or Series 2000 shelf with nylon panel Boltless. Top and bottom folded over provides a groove for inserting of 1" labels. Standard widths 36", 42" and 48". Overall width dimension is 2-1/4" less than listed size. Label holders are shipped in cartons.

Shelf Divider - Main

Shelf divider shall be made from 22 gauge, cold-rolled steel up to and including 18" high. 21" and 24" high dividers shall be made from 20 gauge, cold-rolled steel. Front and rear edges beaded. Top and bottom have 3/4" flange punched with two 5/16" x 1/2" slots for attaching to open flange shelf with Tinnerman Boltless. or Series 2000 shelf with nylon panel Boltless. Overall is 13/16" less than listed depth. Standard depths 12", 15", 18" and 24". Standard heights 6", 7-1/2", 9", 10-1/2", 12", 13-1/2", 15" 16-1/2" and 18". If dividers are used with shelves having class 3 reinforcing hat channel, they must be specially notched. Main dividers are shipped in cartons.

Shelf Divider - Ledge

Ledge dividers are the same as main dividers except overall depth is same as listed size and they must be used in ledge positions. Standard depth 12". Standard heights 6", 9", 16 1/2" and 18". Ledge dividers are attached with Tinnerman spring Boltless. Ledge dividers are shipped in cartons. Cannot be used with Series 2000 shelves.

Angle Divider

Angle divider shall be made from 22 gauge, cold-rolled steel. Angle dividers have 3/4" flange at bottom only. Bottom flange punched with two 5/16" x 1/2" slots for attaching to shelf at bottom only. Must be attached with bolts and nuts. Overall depth is 13/16" less than listed depth. Standard depths 12" and 18". Standard heights are 2", 3" and 4". Angle dividers are shipped in cartons.

Sliding Divider

Sliding divider shall be made from 22 gauge, cold-rolled steel. Front face is 3" x 1-3/8" with a 3" x 1" tabbed label holder formed into the front face. The sliding divider base which sets on top of the shelf is 3" wide by shelf depth with a 1/4" flange at rear. Standard depths are 12" and 18". Overall depths are 7/64" less than listed size. Standard heights are 4" and 6". Sliding dividers are shipped in cartons.

Heavy Duty Sliding Divider

Sliding divider shall be made from 18 gauge, cold-rolled steel. Front face is 3" x 1-3/8. The sliding divider base which sets on top of the shelf is 3" wide by shelf depth with a 9/16" flange at rear. The heavy duty sliding divider has no tabbed label holder. Standard depths are 12", 15" and 18". Overall depth is 1/64" less than listed size. Standard height is 6". Heavy duty sliding dividers are shipped in cartons.

Shelf Box

Shelf boxes 4-1/8", 5-1/2" and 8-3/8" wide shall be made from 22 gauge, cold-rolled steel. 11-1/8" wide box shall be made from 20 gauge, cold-rolled steel. Shelf box made from three-piece welded construction. Rigid handle provided at front of box. Label holder on front and rear. Box slotted for dividers on 1" centers. All shelf boxes are 4-5/8" high and fit between shelves spaced on 6" centers. Standard widths 4-1/8", 5-1/2", 8-3/8" and 11-1/8". Standard depths 11-5/8", 17-5/8" and 23-5/8". Shelf boxes are shipped in cartons.

Box Divider

Box divider shall be made from 26 gauge, cold-rolled steel. Punched for card holder so that every compartment can be indexed. Standard width sizes 4-1/8", 5-1/2", 8-3/8" and 11-1/8". Standard height 4-5/8". Box dividers are shipped in cartons.

Box Guide

Box guide shall be made from 24 gauge, cold-rolled steel. Used as guide on side of shelf to prevent angle post from interfering with sliding boxes. Two box guides required per shelf. Attached to posts by bolt and nut. Overall height 1-3/8". Standard depths 12", 15", 18" and 24". Overall depth dimension is 1/2" less than listed size. Box guides are shipped in cartons.

Doors - Swinging

Doors shall be made from 20 gauge, cold-rolled steel, top and bottom frame 16 gauge, cold-rolled steel, side frame 14 gauge and reinforcing panel 24 gauge. Each door is reinforced on the inside to prevent warping and each pair has its own rigid frame to prevent sag. A three-point locking mechanism is controlled by an "L" shaped handle with a built-in lock. Standard widths are 36" and 48". Shelving unit must be plumb and square before installing swinging doors. Swinging doors are shipped in cartons.

Counter Tops - Both Ends Finished

Counter top shall be made from 14 gauge, hot-rolled, pickled and oiled steel. Face of counter top is 1-1/8". The face of the top projects 1-3/16" beyond face of post. Two 1/2" x 7/8" 16 gauge angles welded to the underside of top for attaching to posts. Counter tops must be attached by bolting. Unable to attach with shelf Boltless. Overall depth of counter top 2-7/16" greater than listed size. Overall width of counter top is 2-7/16" greater than listed size. Standard width 36". Standard depth 24". Counter tops are shipped bundled with corrugated wrapper.

Counter Tops - One End Finished

Counter top shall be made from 14 gauge, hot-rolled, pickled and oiled steel. Face of counter top is 1-1/8". The face of the top projects 1-3/16" beyond face of post. Two 1/2" x 7/8" 16 gauge angles welded to the underside of top for attaching to posts. Counter tops must be attached by bolting. Unable to attach with shelf Boltless. Overall depth of counter top 2-7/16" greater than listed size. Overall width of counter top is 1-7/32" greater than listed size. Standard width 36". Standard depth 24". Counter tops are shipped bundled with corrugated wrapper.

Counter Tops - Intermediate

Counter top shall be made from 14 gauge, hot-rolled, pickled and oiled steel. Face of counter top is 1-1/8". The face of the top projects 1-3/16" beyond face of post. Two 1/2" x 7/8" 16 gauge angles welded to the underside of top for attaching to posts. Counter tops must be attached by bolting. Unable to attach with shelf Boltless. Overall depth of counter top is 2-7/16" greater than listed size. Overall width of counter top is the listed size. Standard width 36". Standard depth 24". Counter tops are shipped bundled with corrugated wrapper.

Counter Front

Counter front shall be made from 18 gauge, cold-rolled steel. Counter front to have 41/64" flange at bottom. Each side punched with 3/8" diameter holes on 1-1/2" centers. No center row of holes. Overall width is 3/4" less than listed size. Standard width 36". Standard height 40". Counter fronts are shipped in cartons.

Ledge Tops

Ledge top shall be made from 14 gauge, hot-rolled, pickled and oiled steel. Face of ledge top is 1-1/8". Ledge top to project 1-3/16" beyond the face of the post and has two 1/2" x 7/8" 16 gauge angles welded to the underside for attaching to post. Rear flange of ledge top to be punched for bolting to the shelf in the main unit. Same top used at end or intermediate position. Ledge top must be bolted and cannot be used with shelf Boltless. Overall depth 1-11/32" greater than listed size. Standard width 36". Standard depth 12". Ledge tops are shipped bundled with corrugated wrappers. Cannot be used with Series 2000 Shelves.

Ledge Top Ends

Ledge top end is 1/4" x 1-1/4" bar used to close ends of ledge tops. Reversible for use at either right or left hand end assembly. Attached by bolts and nuts. Standard size 36" wide x 12" deep. Ledge top ends are shipped in cartons.

Divider Strip

Divider strip shall be made from 16 gauge, cold-rolled steel. Is 1" wide and has 9/64" long extrusions on 1" centers. Used for holding in place ledge or main dividers under ledge or counter top. Divider strips are not bolted to ledge or counter tops, but held in place by dividers. Overall width is 11/16" less than listed width. Standard length 36". Divider strips are used in pairs. Divider strips are shipped in cartons. Cannot be used with Series 2000 Shelves.

Post Corner Cover Plate

Corner cover plate shall be made from 22 gauge, cold-rolled steel. Used to cover corner angle posts to give finished appearance. Formed in shape of angle, front leg 1-9/16", side leg 2-1/2". Attached to post by means of #12 x 1/2" sheet metal screw. No holes on outside corner cover plate. Standard lengths are 3'4", 6'-1" and 7'1". Corner cover plates are shipped in cartons.

Post Intermediate Cover Plate

Intermediate cover plate shall be made from 22 gauge, cold-rolled steel. Used to cover angle posts at intermediate position to give finished appearance. Attach by placing leg of Boltless angles, which are spot welded to cover, between legs of angle posts. No holes on outside of intermediate cover plate. Overall width 2-1/4". Standard lengths are 3'4", 6'-1" and 7'1". Intermediate cover plates are packed in a carton.

Post Side Cover Plate

Cover plate shall be made from 22 gauge, cold-rolled steel. Used to cover side of angle post when door is used to give finished appearance. Overall width 2", attached by means of #12 x 1/2" sheet metal screw. No holes on outside face of cover plate. Standard sizes 3'4", 6'1", and 7'1". Cover plates are packed in a carton.

Maxi-Stor Drawer Specification

Drawer - standard width is 36"; standard depths are 18" and 24"; standard heights are 3", 4", 5", 6" and 7". Front is 13 gauge steel - flanges at sides and bottom. Body is 18 gauge steel, sides and back ribbed and slotted to receive partitions and dividers on approximate 1" centers. Drawer track is 11 gauge steel Z member. Extruded anodized aluminum pull with label holder provision extends the full width of drawer - side flanges of drawer contoured to conceal ends of pull.

Cradle or Progressive Suspension - 12 gauge steel channels with 2 feating and 3 ball bearing steel rollers mounted to each channel to assure smoother, friction-free movement. The cross tie channels of the cradle are 14 gauge steel. A 14 gauge stop Boltless is built into the cradle to limit its motion but can easily be removed without tools to remove cradle from case track.

Case Track - 10 gauge steel, installed without use of mechanical fasteners. The case track attaches to the front and rear frames and is fixed into place using the built in locking device.

Front and Rear Frames - standard width is 36"; standard depths are 18" and 24"; standard height openings are 6", 18", 32" and 36". 14 gauge, welded, bolted to front and rear posts of shelving unit to maintain squareness and provide support for the case tracks and drawer. 1" on center vertical adjustment.

Partition Dividers - 22 gauge steel partition dividers are slotted to receive cross dividers on approximately 1" centers.

Cross Dividers - 22 gauge steel cross dividers are fabricated in lengths of 3", 4", 5", 6", 8", 9', 10" and 12".

Serving These Counties in the Salt Lake City Area:

Davis County, Duchesne County, Morgan County, Salt Lake County, Summit County, Tooele County, Utah County, Wasatch County, Weber County.

Serving These Zip Codes in the Salt Lake City Area:

84004, 84005, 84006, 84010, 84013, 84014, 84015, 84020, 84025, 84032, 84036, 84037, 84040, 84040, 84041, 84042, 84043, 84044, 84047, 84049, 84050, 84054, 84056, 84057, 84058, 84060, 84062, 84065, 84067, 84070, 84071, 84074, 84075, 84084, 84087, 84088, 84092, 84094, 84095, 84096, 84097, 84098, 84101, 84102, 84103, 84104, 84105, 84106, 84107, 84108, 84109, 84115, 84116, 84117, 84118, 84119, 84120, 84121, 84123, 84124, 84128, 84141, 84310, 84315, 84340, 84401, 84403, 84404, 84405, 84601, 84602, 84604, 84606, 84651, 84653, 84663, 84664.

Serving these Cities in the Salt Lake City Area:

American Fork, Bingham Canyon, Bingham Cyn, Bluffdale, Bountiful, Brigham City, Castle Dale, Cedar Hills, Centerfield, Clearfield, Cleveland, Clinton, Cottonwood Heights, Draper, Eagle Mountain, Eagle Mtn, Fairfield, Farmington, Fruit Heights, Grantsville, Heber City,Herriman, Highland, Holladay, Honeyville, Hooper, Huntsville, Kamas, Kaysville, Layton, Lehi, Lindon, Logan, Midvale, Midway, Murray, North Logan, North Ogden, North Salt Lake, Ogden, Orem, Park City, Pleasant Grove, Pleasant View, Provo, Riverdale, Riverton, Salt Lake City, Sandy, South Jordan, South Ogden, South Salt Lake, South Weber, Spanish Fork, Spring City, Springdale, Springville, Sunset, Syracuse, Taylorsville, Tooele, West Bountiful, West Haven, West Jordan, West Point, West Valley City, Woods Cross.

At NationWide Shelving, we provide the highest quality products and services, and the absolute best value in our industry. Additionally, our sales and installation experts are professionals who have been trained to provide the most accurate information and the highest quality installation services in the industry.

Find out why NationWide Shelving is a leader in Pallet Rack sales!

Order by Phone!
801-328-8788

For more details, call NationWide Shelving at 1-801-328-8788. Email us at Info@NationWideShelving.com

You can also check out our other products "here"

Related Products:

Pallet Rack

Mobile Shelving

Boltless Shelving

Wide Span Shelving

Security Cages

Modular Buildings

Guard Shack

Material Handling Equipment

Receiving Cage

Contact Us | About Us
Copyright © 1997-2017 All Rights Reserved
