Cantilever Rack Salt Lake City, Utah
"Available on the State of Utah Contract MA1231"
Cantilever Rack Salt Lake City, Utah
Download PDF Brochure
Download PDF Brochure
Cantilever Rack Salt Lake City, UtahCantilever Rack Salt Lake City, Utah
Cantilever Rack Salt Lake City, Utah

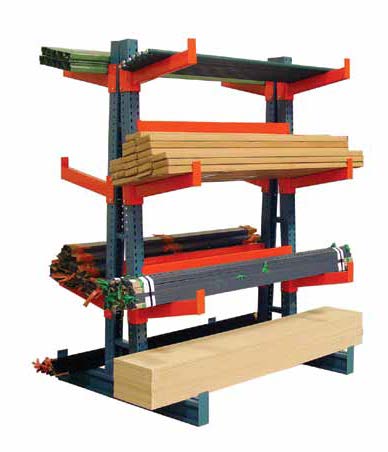

HEAVY DUTY CANTILEVER RACK

This heavy duty cantilever rack is ideal for storing tubes, bar stock or other long materials. Available with either single sided or double sided base. Columns are available in 8’, 10’ or 12’ high. Arms are available in 24”, 36” or 48”. Two bases/columns, one brace set and arms are required to make one free standing starter unit. Additional sections can be added to starter units by purchasing one additional base/column, one brace set and arms. Components feature 14 gauge construction. All components are sold individually.


How to Order
A. Select Arm
  1. Choose Arm Length and angle.
2. Choose either Regular Duty or Heavy Duty based on capacity required.
3. Add optional End-Stops if needed.
B. Select Base/Column Size
  1. Choose either single sided or double sided base.
2. Choose column Height


a. When columns serve as load stops, it is necessary to specify column heights greater than the top loading arms. There is no need to pay for extra column height unless load stops are desired or future expansion is anticipated.
b. Arm height adjustable in 3” increments.

  3. Select appropriate Base for arms selected in “A” above.
C. Select Brace Set




Cantilever Rack Salt Lake City, Utah   Cantilever Rack Salt Lake City, Utah
20° Arms
Model Number Length Cap. Per Arms
Heavy Duty
215-HBH24
215-HBH36
215-HBH48
24”
36”
48”
2,200
2,050
1,600
4° Arms
Model Number Length Cap. Per Arms
Regular Duty
215-HA24
215-HA36
215-HA48
24”
36”
48”
1,800
1,200
900
Heavy Duty
215-HAH36
215-HAH48
36”
48”
2,050
1,600


Cantilever Rack Salt Lake City, Utah
*Heavy Duty Arm End-Stops
Model Number Fits Arm
CHAHS01
CHAHS02

20°
*for use with Heavy Duty Arms only
Cantilever Rack Salt Lake City, Utah
Brace Sets 8’ & 10’ High 12’ High
Width Model Number Model Number
3’
4’
6’
8’
215-HXP36
215-HXP48
215-HXP72
215-HXP96
CHX-36
CHX-48
CHX-72
CHX-96

Cantilever Rack Salt Lake City, Utah

Cantilever Rack Salt Lake City, Utah


  Single Sided Base/Column Double Sided Base/Column
Arm
Length
Model
Number
Cap.
Per Column
Model
Number
Cap.
Per Column
8’ High Column
24”
36”
48”
CHS-09624
CHS-09636
CHS-09648
11,200
8,400
6,700
CHD-09624
CHD-09636
CHD-09648
22,400
16,800
13,400
10’ High Column
24”
36”
48”
CHS-12024
CHS-12036
CHS-12048
11,200
8,400
6,700
CHD-12024
CHD-12036
CHD-12048
22,400
16,800
13,400
12’ High Column
24”
36”
48”
CHS-14424
CHS-14436
CHS-14448
11,200
8,400
6,700
CHD-14424
CHD-14436
CHD-14448
22,400
16,800
13,400

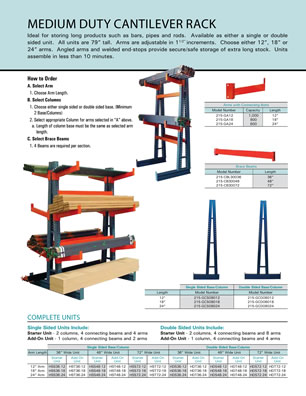

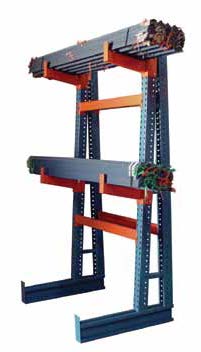

Medium Duty Cantilever Rack

Ideal for storing long products such as bars, pipes and rods. Available as either a single or double sided unit. All units are 79” tall. Arms are adjustable in 11/2” increments. Choose either 12”, 18” or 24” arms. Angled arms and welded end-stops provide secure/safe storage of extra long stock. Units assemble in less than 10 minutes



How to Order
A. Select Arm
  1. Choose Arm Length
B. Select Columns


1. Choose either single sided or double sided base. (Minimum 2 Base/Columns)
2. Select appropriate Column for arms selected in “A” above.



a. Length of column base must be the same as selected arm length.

C. Select Brace Set


1. 4 Beams are required per section.




Cantilever Rack Salt Lake City, Utah
Cantilever Rack Salt Lake City, Utah
Cantilever Rack Salt Lake City, Utah
Arms with Connecting Bolts
Model Number Capacity Length
215-GA12
215-GA18
215-GA24
1,000
800
600
12”
18”
24”
Cantilever Rack Salt Lake City, Utah
Brace Beams
Model Number Length
215-CBL30036
215-CB30048
215-CB30072
36”
48”
72”

  Cantilever Rack Salt Lake City, Utah Cantilever Rack Salt Lake City, Utah

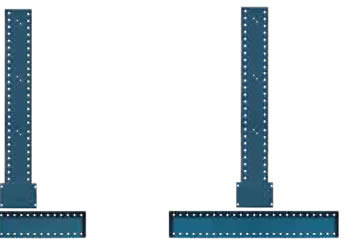

  Single Sided Base/Column Double Sided Base/Column
Length Model Number Model Number
12”
18”
24”
215-GCS08012
215-GCS08018
215-GCS08024
215-GCD08012
215-GCD08018
215-GCD08024
COMPLETE UNITS

Single Sided Units Include:
Starter Unit - 2 columns, 4 connecting beams and 4 arms
Add-On Unit - 1 column, 4 connecting beams and 2 arms

Double Sided Units Include:
Starter Unit - 2 columns, 4 connecting beams and 8 arms
Add-On Unit - 1 column, 4 connecting beams and 4 arms

  Single Sided Base/Column Double Sided Base/Column
Arm Length 36” Wide Unit 48” Wide Unit 72” Wide Unit 36” Wide Unit 48” Wide Unit 72” Wide Unit
  Starter
Unit
Add-On
Unit
Starter
Unit
Add-On
Unit
Starter
Unit
Add-On
Unit
Starter
Unit
Add-On
Unit
Starter
Unit
Add-On
Unit
Starter
Unit
Add-On
Unit
12” Arm
18” Arm
24” Arm
HSS36-12
HSS36-18
HSS36-24
HST36-12
HST36-18
HST36-24
HSS48-12
HSS48-18
HSS48-24
HST48-12
HST48-18
HST48-24
HSS72-12
HSS72-18
HSS72-24
HST72-12
HST72-18
HST72-24
HDS36-12
HDS36-18
HDS36-24
HDT36-12
HDT36-18
HDT36-24
HDS48-12
HDS48-18
HDS48-24
HDT48-12
HDT48-18
HDT48-24
HDS72-12
HDS72-18
HDS72-24
HDT72-12
HDT72-18
HDT72-24

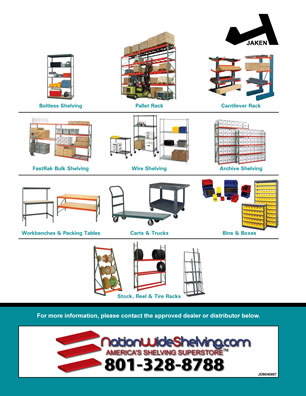

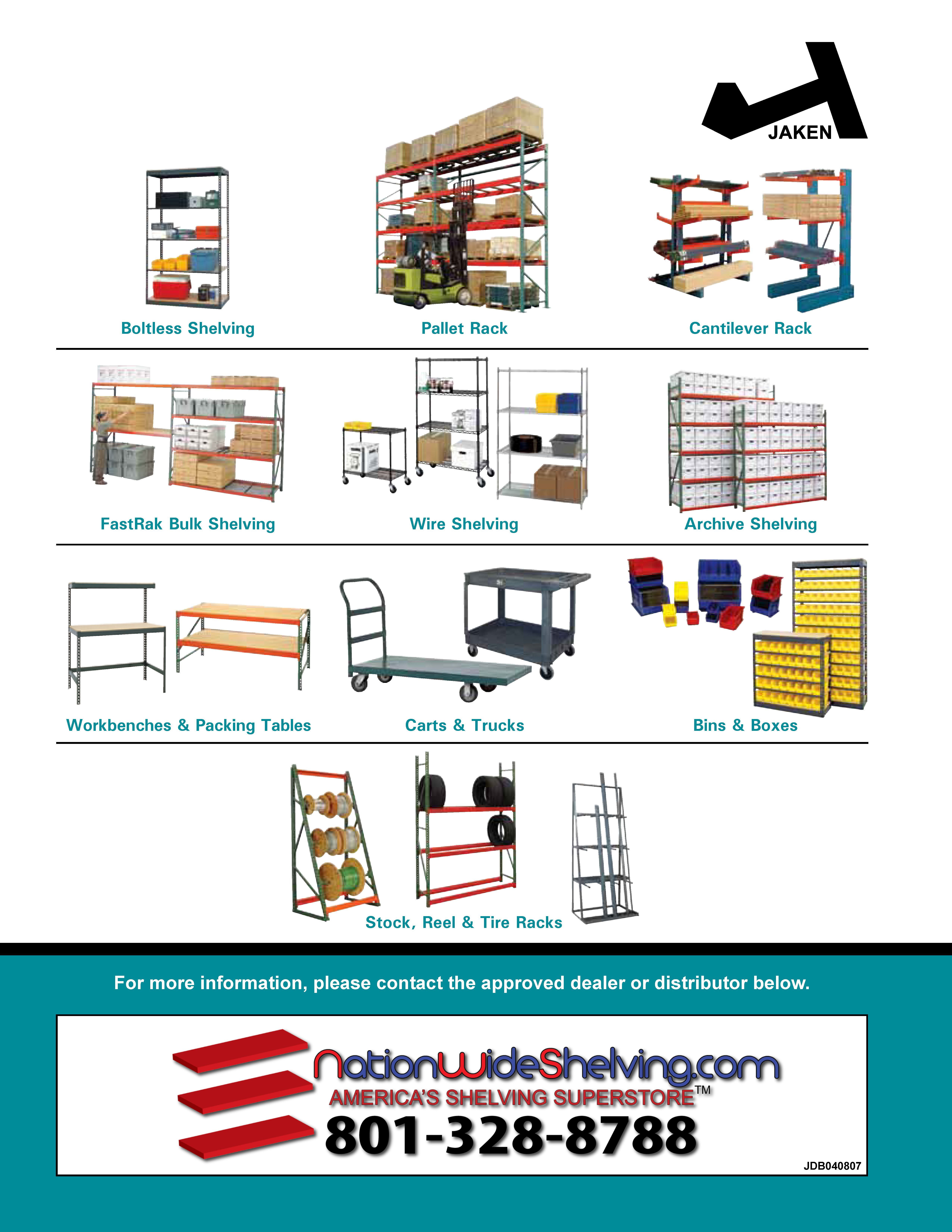

Boltless Shelving
