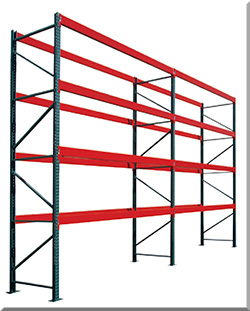

High Density Pallet Rack

Pallet racks are material handling storage solutions designed to store materials on pallets (also known as skids), typically within a warehouse setting. There are many varieties of pallet racking, which all have horizontal rows with multiple shelf levels. Different systems of pallet racks include: drive-in, drive-thru, flow, and push-back. Drive-in pallet racks load and retrieve from the same side, creating last-in-first-out (lifo) inventory organization. Drive-Thru pallet rack systems load from one side and unload from the other side to create first-in-first-out (fifo) inventory retrieval with forklifts. Pallet flow rack systems use gravity to move pallets on smooth rolling metal skate wheels on sloped rails. Push-back pallet racks use a dynamic rail system, in which deeper pallet loads automatically advance to the aisle, when the front pallet load is retrieved. Push-back pallet rack systems offer similar storage density as drive-in pallet rack, while improving selectivity and accessibility.

North American Wholesale Logistics (NAWL) manufactures pallet racks made with industrial strength. NationWide Shelving NAWL pallet rack systems have spectrum teardrop pallet rack beams, upright supports, and accessories, which can be quickly shipped. Pallet racks are the best storage solutions for any industrial warehouse, including sporting goods warehouses.

Jaken pallet racks are among the top selling storage products for pallet racking systems, in Utah and across the United States. Jaken provides sensational prices to consumers, from small residential customers to large agencies such as the University of Utah. Jaken pallet racks also use great quality material to make their uprights and beams.

All Jaken pallet racks come with inspection passing foot plates (5" x 8") that can be securely fastened to 3" x 3" upright posts and cross beams. Wire decking is also an option, which provides more support for pallet racks. Wire decks from Jaken have a waterfall design that extends over the edge lip of each pallet rack step beam. The waterfall design prevents forklifts from knocking down the wire decks.

From a professional stand point, it is recommend to have wire decking in sections, rather than having one whole wire deck run the entire length of a pallet rack level. The reasoning for this is: wire decking can keep its structural integrity, instead of bending and bowing under the weight of what is being stored.

The Feature: Wire Mesh Decking from NationWide Shelving uses open wire construction.

The Advantage: Open wire design for bulk storage shelving wire mesh decks reduces dust build-up along and increases air and light circulation.

The Benefit: Because of improved visibility from this bulk storage shelving decking, warehouse and stockroom managers or workers can have an easier time organizing and retrieving items.

Return on Investment: Wire decking has built-in supports, which would hold more weight than particle board decks. Besides having a bigger weight and size capacity, wire decking lasts longer and is more durable than particle board decking because it won't warp from water damage.
