Jaken Pallet Rack

Call Now 800-326-4403
Download PDF Brochure

Download PDF Brochure

Our Jaken Pallet Rack Video:

PALLET RACK

Our Regular Duty and Heavy Duty pallet rack now feature 3” x 3” columns and 5” x 8” seismic base plates. Regular duty uprights are constructed of 16-gauge steel and provide 16,100 lbs. capacity per upright. The heavy-duty uprights feature a 23,300 lbs. capacity and are constructed from 14-gauge steel (regular and heavy duty capacities are based upon a maximum shelf spacing of 36”). The new bolt together design provides a lower cost of ownership because components can be easily replaced when damaged during use, while traditional welded uprights require replacement of the entire upright. Pallet rack beams now feature an improved safety clip which allows for easy replacement of damaged clips. Racks are designed for use with a forklift (or other hydraulic or electrical lift) or for heavy duty hand stacking. Uprights are sold either K.D. or assembled.

New 3" x 3" column design available in regular and heavy duty uprights

Pallet Rack

Close up of pallet rack upright and beamm.
  • New and improved design

  • Deluxe 3” x 3” columns for regular and heavy duty uprights

  • Uprights feature a 5” x 8” seismic base plate

  • Upright capacities from 16,100 to 23,300 lbs. (based upon 36” maximum shelf spacing)

Popular tear drop design insures interchangeability with most major pallet rack manufacturers. Interchangeable with the following pallet rack manufacturers: Interlake (Original Style), Space Rack, USP, Lodi Metal-Tech, Steel King, and Husky.



Tear Drop Design and Cip

UPRIGHTS

Featuring a new and improved 3” x 3” standard column design and 5” x 8” base plate. Regular duty uprights are constructed of 16-gauge steel with a 16,100 lbs. capacity. Heavy duty uprights feature 14-gauge steel construction with a capacity of 23,300 lbs. (regular and heavy duty capacities based upon 36” maximum shelf spacing). Uprights utilize a bolt together design for easy replacement. Beams can be adjusted every 2”. Uprights can be shipped assembled for an additional charge per upright. Color: Light Green.

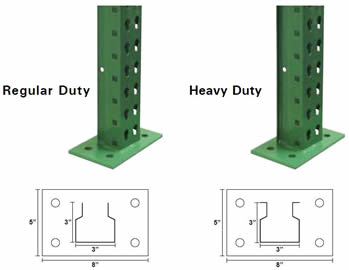

Layout of Regular Duty Uprights and Heavy Duty Uprights

14-Gauge Heavy Duty Uprights

Model Number Height Depth Weight
IUH36120
IUH36144
IUH36180
IUH36192
10’
12’
15’
16’
3.0’
3.0’
3.0’
3.0’
73
88
110
114
IUH42120
IUH42144
IUH42180
IUH42192
10’
12’
15’
16’
3.5’
3.5’
3.5’
3.5’
75
91
112
120
IUH48120
IUH48144
IUH48180
IUH48192
10’
12’
15’
16’
4.0’
4.0’
4.0’
4.0’
77
95
118
123


16-Gauge Heavy Duty Uprights

Model Number Height Depth Weight
IU36096
IU36120
IU36144
8’
10’
12’
3.0’
3.0’
3.0’
48
57
70
IU42096
IU42120
IU42144
8’
10’
12’
3.5’
3.5’
3.5’
50
58
73
IU48096
IU48120
IU48144
8’
10’
12’
4.0’
4.0’
4.0’
53
61
77

STEP LOAD BEAMS

Deluxe form beams feature an improved safety clip which can be easily replaced. Beams are interchangeable with most major pallet rack manufacturers. Beam length is measured by clear span between uprights. Beam capacities are based on an evenly distributed load. 3.5”, 4” and 5” beams use 3-pin connectors; 6” beams use 4-pin connectors. Sold per beam. Two beams are required to create a shelf. Color: Orange.
Step Load Beams for Pallet Rack


WIRE MESH DECKING

Deluxe form beams feature an improved safety clip which can be easily replaced. Beams are interchangeable with most major pallet rack manufacturers. Beam length is measured by clear span between uprights. Beam capacities are based on an evenly distributed load. 3.5”, 4” and 5” beams use 3-pin connectors; 6” beams use 4-pin connectors. Sold per beam. Two beams are required to create a shelf. Color: Orange.
Wire Mesh Decking for Pallet Rack
Model Number Height Length Cap. Per Pair Weight
215-IB35096 3.5” 8’ 3,460 25
215-IB40096
215-IB40108
215-IB40120
4.0”
4.0”
4.0”
8’
9’
10’
4,977
4,228
3,425
27
30
34
215-IB50096
215-IB50108
215-IB50120
215-IB50144
5.0”
5.0”
5.0”
5.0”
8’
9’
10’
12’
7,035
7,103
6,004
4,170
32
36
40
45
215-IB60144 6.0” 12’ 6,511 53

Model Number Height Length Cap. Per Pair Weight
215-DF3646
215-DF3658
36”
36”
46”
58”
2,500
2,300
19
22
215-DF4246
215-DF4258
42”
42”
46”
58”
2,100
2,200
22
27
215-DF4846
215-DF4858
48”
48”
46”
58”
1,800
2,100
24
30

STEEL SAFETY SUPPORTS

  • Use as front to back member to support pallet or wood decking.
  • Can be used in conjunction with wood decking to provide additional support for hand stacking applications.
Steel Safety Supports for Pallet Rack
Model Number Guard Height Weight
215-USS36
215-USS42
215-USS48
3.0’
3.5’
4.0’
5
6
8


FRAME GUARDS

  • Avoid damage to valuable rack columns.
  • Solid steel guards withstand impacts with heavy duty construction.
  • Features high visibility yellow powder coat finish and 4 mounting holes.
Frame Guards for Pallet Rack
Model Number Guard Height Weight
215-ICP24 24” 11

BAY DIVIDERS

  • Organize material vertically with dividers.
  • Designed to fit over our Step Load Beams.
  • Easy to install; no hardware required.
  • Pre-punched holes for permanent mounting
Bay Dividers for Pallet Rack
Model Number Weight
215-ID01 11


LABEL HOLDERS

  • Extra Large for Pallet Rack applications.
  • Self-adhesive and magnetic label holder allows for simple label relocation.
  • Includes Ink Jet/Laser compatible white inserts with instructions.
Label Holders for Pallet Rack Adhesive Labels
Model Number Size QTY
215-L335
215-L346
3” x 5”
4” x 6”
50
50



Magnetic Labels
Model Number Size QTY
215-L335M
215-L346M
3” x 5”
4” x 6”
50
50
Boltless Shelving

Boltless Shelving

Pallet Rack

Pallet Rack

Cantilever Rack Cantilever Rack

Cantilever Rack

FastRak Bulk Shelving

FastRak Bulk Shelving

Wire ShelvingWire Shelving

Wire Shelving

Archive Shelving

Archive Shelving

Workbenches & Packing TablesWorkbenches & Packing Tables

Workbenches & Packing Tables

Carts & TrucksCarts & Trucks

Carts & Trucks

Bins & BoxesBins & Boxes

Bins & Boxes

Stock, Reel & Tire RacksStock, Reel & Tire RacksStock, Reel & Tire Racks

Stock, Reel & Tire Racks



For more information, please contact the approved dealer or distributor below.

Bulk Storage Shelving Salt Lake City, Utah

FULL BROCHURE:

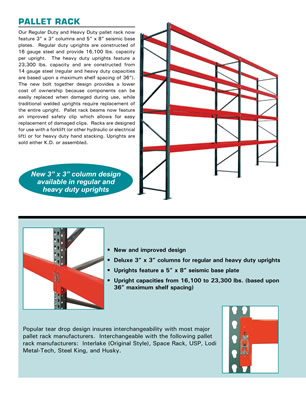

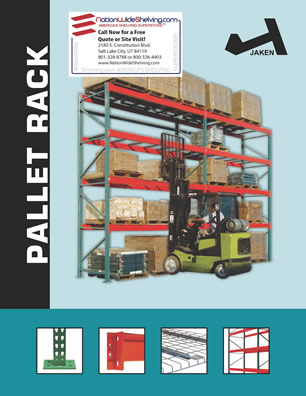

Jaken Pallet Rack Brochure Page 1 Jaken Pallet Rack Brochure Page 2

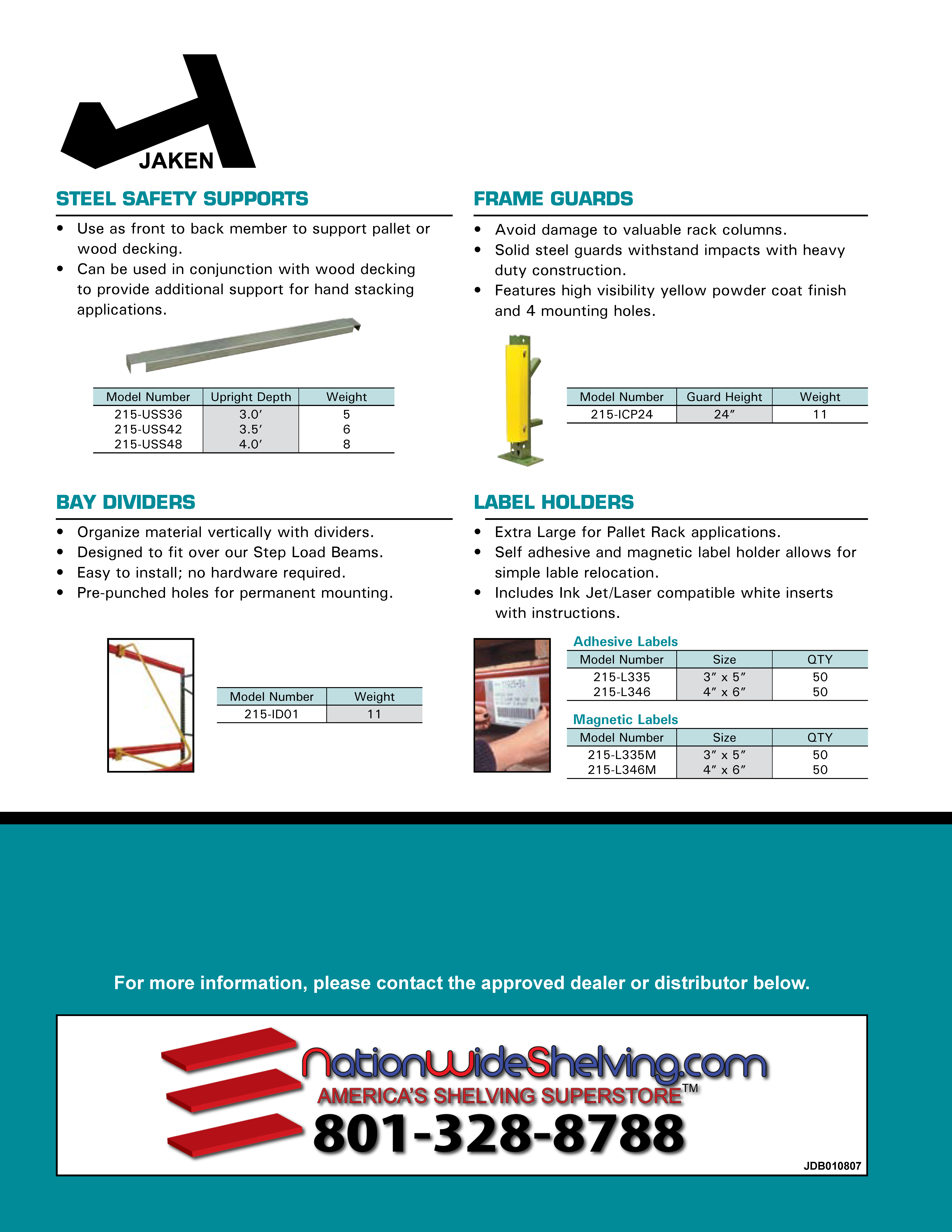

Jaken Pallet Rack Brochure Page 3 Jaken Pallet Rack Brochure Page 4
