Jaken
Material Handling Catalog
Material Handling Catalog

View All PDF Brochures
View All PDF Brochures

GSA Contracts

IPA


State of Utah Contract:
MA 1231





Jaken

Jaken

About Jaken:

Since 1999, the Jaken Company has been manufacturing boltless shelving in addition to a variety of material handling products.  Among their newest products are the FastRak Record Archive Shelving and the FastRak Tire Storage Rack.  Jaken takes the time to ensure that every product they produce is of the highest quality, while still at an affordable price.  Jaken also offers exceptional customer service.  Their knowledgeable staff consistently provides support in a prompt and courteous manner.

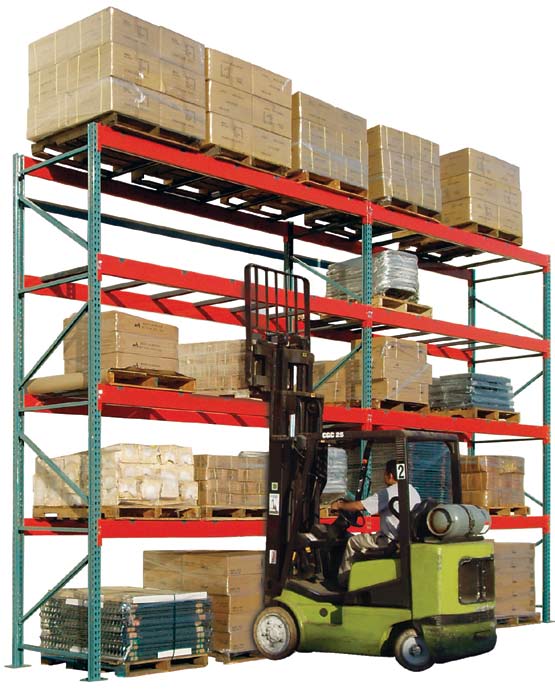

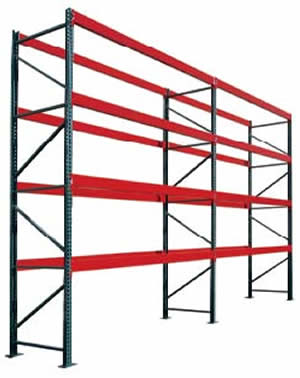

Pallet Rack:

Jaken

About Pallet Rack:

Most industrial applications require their areas to be safe and secure which means only authorized members can access their machines. The Jaken mesh panels are in accordance with the Machinery Directive and provide the highest personal and machine safety. Jaken is a very popular brand around the world in machine guarding and security amongst the production industry. Jaken system has been tested to be compatible with new and old modules.

Regular-Duty Uprights (16-Gauge):

  • 3” x 3” Columns
  • 5” x 8” Seismic Base Plate
  • 16-Gauge Steel
  • 16,000 Lbs. Capacity Per Upright
  • Color:  Light Green

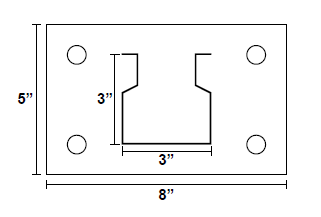

Heavy-Duty Uprights (14-Gauge):

  • 3” x 3” Columns
  • 5” x 8” Seismic Base Plate
  • 14-Gauge Steel
  • 23,300 Lbs. Capacity Per Upright
  • Color:  Light Green

JakenJaken

JakenJaken

Jaken

Step Load Beams:

Beam length is traditionally measured by the clear span between the uprights, and beam capacities are based on an evenly distributed load. Two beams are necessary in order to create a shelf.

  • 3-Pin Connectors – 3.5”, 4”, and 5” Beams
  • 4-Pin Connectors – 6” Beams
  • Color:  Orange

The New and Improved Upright and Beam Design is Interchangeable with the Following Manufacturers:

  • Interlake (Original Style)
  • Space Rack
  • USP
  • Lodi Metal-Tech
  • Steel King
  • Husky

Uprights for the pallet rack can be shipped already assembled for an addiontal fee per upright.

16-Gauge Regular-Duty Uprights

Model Number Height Depth Weight

IU36096
IU36120
IU36144

8'
10'
12"

3.0'
3.0'
3.0'

48
57
70
IU42096
IU42120
IU42144

8'
10'
12'

3.5'
3.5'
3.5'
50
58
73
IU48096
IU48120
IU48144
8'
10'
12'
4.0'
4.0'
4.0'
53
61
77

14-Gauge Heavy-Duty Uprights

Model Number Height Depth Weight

IUH36120
IUH36144
IUH36180
IUH36192

10'
12'
15'
16'

3.0'
3.0'
3.0'
3.0'

73
88
110
114
IUH42120
IUH42144
IUH42180
IUH42192

10'
12'
15'
16'

3.5'
3.5'
3.5'
3.5'
75
91
112
120
IUH48120
IUH48144
IUH48180
IUH48192
10'
12'
15'
16'
4.0'
4.0'
4.0'
4.0'
77
95
118
123
Step Load Beams
Model Number Height Length Cap. Per Pair Weight
215-IB35096 3.5" 8' 3,460 25
215-IB40096
215-IB40108
215-IB40120
4.0"
4.0"
4.0"
8'
9'
10'
4,977
4,228
3,425
27
30
34
215-IB50096
215-IB50108
215-IB50120
215-IB50144
5.0"
5.0"
5.0"
5.0"

8'
9'
10'
12'

7,035
7,103
6,004
4,170
32
36
40
45
215-IB60144 6.0" 12' 6,511 53















Additional Accessories for Pallet Rack:
Jaken

Wire Mesh Decking:

  • More Effective Sprinklers and Visibility
  • Composed of 4-Gauge Wire and 13-Gauge Flared Channels
  • Zinc Electrogalvanized Finish
  • Wire is Spaced 2.25” x 4.25”



Jaken

Steel Safety Supports:

  • Used in Combination with Wood Decking
  • Provides Extra Support for all Hand Stacking Applications
  • Commonly Used as Front-to-Back Member to Support Wood or Pallet Decking
Jaken

Frame Guards:

  • Composed of Solid Steel
  • Capable of Withstanding Impacts from Heavy-Duty Construction
  • Yellow Powder Coated Finish
Jaken

Bay Dividers:

  • Designed to Fit Over Step Load Beams
  • Includes Pre-Punched Holes Intended for Permanent Mounting
  • Excellent Tool for Organizing Material Vertically



Jaken

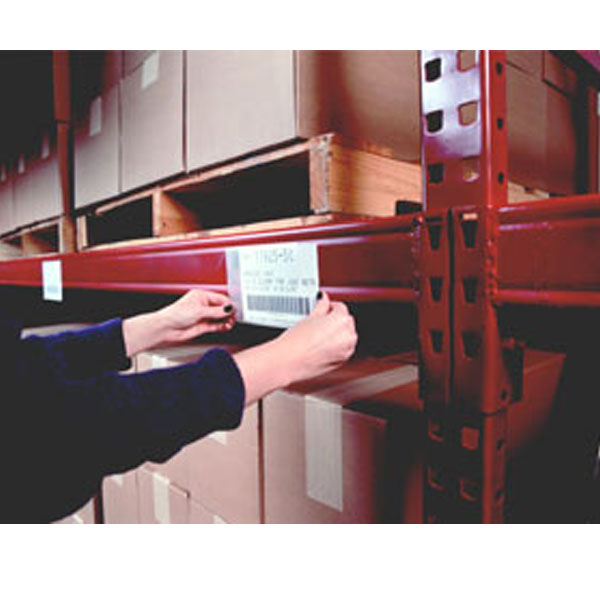

Label Holders:

  • Designed Extra-Large In Order to be Compatible with Pallet Rack Applications
  • Comes with Magnetic and Self-Adhesive Label Holders
  • Label Relocation is Fast and Convenient







Wire Mesh Decking
Model Number Unit Depth Deck Width Capacity Weight
215-DF3646
215-DF3658
36"
36"
46"
58"

2,500
2,300

19
22
215-DF4246
215-DF4258
42"
42"
46"
58"
2,100
2,200
22
27
215-DF4846
215-DF4858
48"
48"
46"
58"
1,800
2,100
24
30
Steel Safety Supports
Model Number Upright Depth Weight
215-USS36
215-USS42
215-USS48
3.0'
3.5'
4.0'
5
6
8











Frame Guards
Model Number Guard Height Weight
215-ICP24 24" 11
Bay Dividers
Model Number Weight
215-ID01 11
Adhesive Labels
Model Number Size Qty.
215-L335
215-L346
3" x 5"
4" x 6"
50
50
Magnetic Labels
Model Number Size Qty.
215-L335M
215-L346M
3" x 5"
4" x 6"
50
50


Order by Phone!
800-326-4403Jaken




FastRak Bulk Storage Shelving:



Jaken

Jaken

About FastRak Bulk Storage Shelving: (also know as bulk storage)

The FastRak Bulk Storage Shelving is perfect for storing bulky and heavy items, with a heavy duty upright that can be “knocked down” for faster shipment.  This shelving comes with the choice of wire mesh or particle board decking for the shelf surface.  FastRak Bulk Storage Shelving is especially unique because a shelf at the bottom of the unit is not needed, allowing items to be placed directly on the floor.

Uprights:

  • Heavy-Duty Knock Down FastRak Design
  • Easier Shipment with Updated Design
  • 7,000 Lbs. Capacity Per Upright
  • Optional Footplates
  • Adjustable Height Every 1.5”

Step Load Beams:

  • Available in 2” or 3” Beam Height
  • Available in 24”, 36”, 48”, 72”, or 96” Length
  • Safety Clip Built-In
  • Beams are Sold Per Piece
Uprights
Model Number D & H Weight
CU18072
CU18096
CU18120
18" x 72"
18" x 96"
18" x 120"
21
29
34
CU24072
CU24096
CU24120
24" x 72"
24" x 96"
24" x 120"
23
30
36
CU36036
CU36072
CU36096
CU36120
36" x 36"
36" x 72"
36" x 96"
36" x 120"
15
27
33
41
CU48036
CU48072
CU48096
CU48120
48" x 36"
48" x 72"
48" x 96"
48" x 120"
17
30
37
46
Step Load Beams
Model Number H x L Cap. Weight *Supports Needed
215-CB20048
215-CB20072
215-CB20096
2" x 48"
2" x 72"
2" x 96"
1,400
1,200
1,000
7
10
13
2
3
4
215-CBL30024
215-CBL30036
215-CB30048
215-CB30072
215-CB30096
3" x 24"
3" x 36"
3" x 48"
3" x 72"
3" x 96"
4
5
8
12
16
4
5
8
12
16
0
0
2
3
4


Additional Accessories for FastRak Bulk Storage Shelving:
Jaken

Wire Mesh Decking:

  • Built-In Supports
  • More Effective Sprinklers and Visibility
  • Wire Decks are Sold Per Piece
Jaken

Particle Board Decking:

  • Heavy-Duty 3/4” Particle Board Cut to Fit Inside Beams
  • Safety Supports are Required



Jaken

Safety Supports:

  • Used in Combination with Particle Board, Maximizes Shelf Capacity
  • Level Shelf Surface Maintained by Supports



Jaken

Deluxe FootPlates:

  • Easily Bolted into Uprights
  • FastRak Can Be Anchored into Concrete with Footplates



Jaken

Label Holders:

  • Magnetic or Self-Adhesive
  • Barcode Compatible
  • Extra-Large Labels




Wire Mesh Decking
Model Number D x W Weight
215-CW1835
215-CW1847
18" x 35"
18" x 47"
7
8
215-CW2435
215-CW2447
24" x 35"
24" x 47"
9
11
215-CW3635
215-CW3647
36" x 35"
36" x 47"
12
16
215-CW4835
215-CW4847
48" x 35"
48" x 47"
17
19
Particle Board Decking
Model Number D x L Weight
240-044818
240-047218
240-049618
18" x 48"
18" x 72"
18" x 96"
17
26
34
240-044824
240-047224
240-049624
24" x 48"
24" x 72"
24" x 96"
23
34
46
240-044836
240-047236
240-049636
36" x 48"
36" x 72"
36" x 96"
34
51
68
240-044848
240-047248
240-049648
48" x 48"
48" x 72"
48" x 96"
46
68
91
Safety Supports
Model Number Length Weight
215-CSS24
215-CSS36
215-CSS48

24"
36"
48"

2
3
4
Footplates
Deluxe Footplate Concrete Wedge Anchor
Model Number Weight Model Number Weight
CUCF01 1.0 235-FA01 0.1
Label Holders
Adhesive Magnetic
Model Number Size Qty. Model Number Size Qty.
215-L335 3" x 5" 50 215-L335M 3" x 5" 50




Order by Phone!
800-326-4403
Jaken

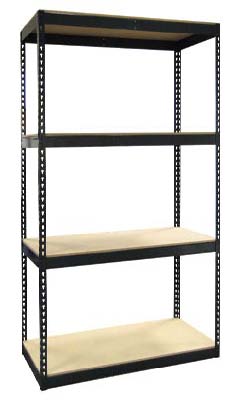

Boltless Shelving:



Jaken

Jaken

Series 200B Bulk Storage Shelving:

Boltless Shelving is high capacity and makes use of Double Rivet Beams, which increases the capacity of the shelf while also allowing for many applications that have a wider span.  Each boltless shelf is composed of heavy-duty steel and features the Series 200 boltless design.  This particular design allows for simple installation without nuts, bolts, or shelf clips.  Standard boltless shelving units come with three adjustable shelves, but extra shelves are available for purchase separately.

  • 14-Gauge Post
  • Accessible From all Four Sides
  • Shelves are Adjustable Every 1.5”
  • Particle Board Decking is Optional
  • Gray Powder Coated Finish

Series 200A Low Profile Shelving:

Single Rivet Beams are used with this shelving to make the most of the available storage space. The Series 200A Low Profile Shelving is exceptionally easy to install as it does not require nuts, bolts, or shelf clips.

  • 14-Gauge Post
  • Accessible From All Four Sides
  • Shelves are Adjustable Every 1.5”
  • Particle Board Decking is Optional
  • Gray Powder Coated Finish
Series 200B Bulk Storage Shelving
  With Particle Board Shelves Without Particle Board Shelves
Series 200B Unit W x D x H Shelf Cap. Model Number Extra Shelf Model Number Extra Shelf
4 Ft. Width 48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 30" x 84"
48" x 36" x 84"
48" x 48" x 84"
1,000
1,000
1,000
1,000
1,000
1,000
B3-4812-84W
B3-4818-84W
B3-4824-84W
B3-4830-84W
B3-4836-84WH
B3-4848-84WH
BX1-4812-W
BX1-4818-W
BX1-4824-W
BX1-4830-W
BX1-4836-WH
BX1-4848-WH
B3-4812-84
B3-4818-84
B3-4824-84
B3-4830-84
B3-4836-84H
B3-4848-84H
BX1-4812
BX1-4818
BX1-4824
BX1-4830
BX1-4836-H
BX1-4848-H
5 Ft. Width 60" x 18" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 24" x 84"
60" x 30" x 84"
60" x 30" x 84"
60" x 36" x 84"
60" x 36" x 84"
60" x 48" x 84"
60" x 48" x 84"
750
1,200
750
1,200
750
1,200
750
1,200
750
1,200

B3-6018-84W
B3-6018-84WH
B3-6024-84W
B3-6024-84WH
B3-6030-84W
B3-6030-84WH
B3-6036-84W
B3-6036-84WH
B3-6048-84W
B3-6048-84WH

BX1-6018-W
BX1-6018-WH
BX1-6024-W
BX1-6024-WH
BX1-6030-W
BX1-6030-WH
BX1-6036-W
BX1-6036-WH
BX1-6048-W
BX1-6048-WH
B3-6018-84
B3-6018-84H
B3-6024-84
B3-6024-84H
B3-6030-84
B3-6030-84H
B3-6036-84
B3-6036-84H
B3-6048-84
B3-6048-84H
BX1-6018
BX1-6018-H
BX1-6024
BX1-6024-H
BX1-6030
BX1-6030-H
BX1-6036
BX1-6036-H
BX1-6048
BX1-6048-H
6 Ft. Width 72" x 18" x 84"
72" x 18" x 84"
72" x 18" x 84"
72" x 18" x 84"
72" x 24" x 84"
72" x 24" x 84"
72" x 24" x 84"
72" x 24" x 84"
72" x 30" x 84"
72" x 30" x 84"
72" x 30" x 84"
72" x 30" x 84"
72" x 36" x 84"
72" x 36" x 84"
72" x 36" x 84"
72" x 36" x 84"
72" x 48" x 84"
72" x 48" x 84"
72" x 48" x 84"
72" x 48" x 84"
600
1,000
1,500
2,000
600
1,000
1,500
2,000
600
1,000
1,500
2,000
600
1,000
1,500
2,000
600
1,000
1,500
2,000
B3-7218-84W
B3-7218-84WH
B3-7218-84WHC
B3-7218-84WHR
B3-7224-84W
B3-7224-84WH
B3-7224-84WHC
B3-7224-84WHR
B3-7230-84W
B3-7230-84WH
B3-7230-84WHC
B3-7230-84WHR
B3-7236-84W
B3-7236-84WH
B3-7236-84WHC
B3-7236-84WHR
B3-7248-84W
B3-7248-84WH
B3-7248-84WHC
B3-7248-84WHR
BX1-7218-W
BX1-7218-WH
BX1-7218-WHC
BX1-7218-84WHR
BX1-7224-W
BX1-7224-WH
BX1-7224-WHC
BX1-7224-WHR
BX1-7230-W
BX1-7230-WH
BX1-7230-WHC
BX1-7230-WHR
BX1-7236-W
BX1-7236-WH
BX1-7236-WHC
BX1-7236-WHR
BX1-7248-W
BX1-7248-WH
BX1-7248-WHC
BX1-7248-WHR
B3-7218-84
B3-7218-84H
B3-7218-84HC
B3-7218-84HR
B3-7224-84
B3-7224-84H
B3-7224-84HC
B3-7224-84HR
B3-7230-84
B3-7230-84H
B3-7230-84HC
B3-7230-84HR
B3-7236-84
B3-7236-84H
B3-7236-84HC
B3-7236-84HR
B3-7248-84
B3-7248-84H
B3-7248-84HC
B3-7248-84HR
BX1-7218
BX1-7218-H
BX1-7218-HC
BX1-7218-84HR
BX1-7224
BX1-7224-H
BX1-7224-HC
BX1-7224-HR
BX1-7230
BX1-7230-H
BX1-7230-HC
BX1-7230-HR
BX1-7236
BX1-7236-H
BX1-7236-HC
BX1-7236-HR
BX1-7248
BX1-7248-H
BX1-7248-HC
BX1-7248-HR
7 Ft. Width 84" x 18" x 84"
84" x 24" x 84"
84" x 30" x 84"
84" x 36" x 84"
84" x 48" x 84"
600
600
600
600
600
B3-8418-84WH
B3-8424-84WH
B3-8430-84WH
B3-8436-84WH
B3-8448-84WH

BX1-8418-WH
BX1-8424-WH
BX1-8430-WH
BX1-8436-WH
BX1-8448-WH

B3-8418-84H
B3-8424-84H
B3-8430-84H
B3-8436-84H
B3-8448-84H
BX1-8418-H
BX1-8424-H
BX1-8430-H
BX1-8436-H
BX1-8448-H
8 Ft. Width

96" x 18" x 84"
96" x 18" x 84"
96" x 18" x 84"
96" x 24" x 84"
96" x 24" x 84"
96" x 24" x 84"
96" x 30" x 84"
96" x 30" x 84"
96" x 30" x 84"
96" x 36" x 84"
96" x 36" x 84"
96" x 36" x 84"
96" x 48" x 84"
96" x 48" x 84"
96" x 48" x 84"

600
1,000
1,500
600
1,000
1,500
600
1,000
1,500
600
1,000
1,500
600
1,000
1,500
B3-9618-84WH
B3-9618-84WHC
B3-9618-84WHR
B3-9624-84WH
B3-9624-84WHC
B3-9624-84WHR
B3-9630-84WH
B3-9630-84WHC
B3-9630-84WHR
B3-9636-84WH
B3-9636-84WHC
B3-9636-84WHR
B3-9648-84WH
B3-9648-84WHC
B3-9648-84WHR
BX1-9618-WH
BX1-9618-WHC
BX1-9618-WHR
BX1-9624-WH
BX1-9624-WHC
BX1-9624-WHR
BX1-9630-WH
BX1-9630-WHC
BX1-9630-WHR
BX1-9636-WH
BX1-9636-WHC
BX1-9636-WHR
BX1-9648-WH
BX1-9648-WHC
BX1-9648-WHR
B3-9618-84H
B3-9618-84HC
B3-9618-84HR
B3-9624-84H
B3-9624-84HC
B3-9624-84HR
B3-9630-84H
B3-9630-84HC
B3-9630-84HR
B3-9636-84H
B3-9636-84HC
B3-9636-84HR
B3-9648-84H
B3-9648-84HC
B3-9648-84HR
BX1-9618-H
BX1-9618-HC
BX1-9618-HR
BX1-9624-H
BX1-9624-HC
BX1-9624-HR
BX1-9630-H
BX1-9630-HC
BX1-9630-HR
BX1-9636-H
BX1-9636-HC
BX1-9636-HR
BX1-9648-H
BX1-9648-HC
BX1-9648-HR
Series 200A Low Profile Shelving
  Standard-Duty Shelving Heavy-Duty Shelving
Shelves Unit W x D x H Shelf Cap. With Board Without Board Shelf Cap. With Board Without Board
4 Shelves 36" x 12" x 84"
36" x 18" x 84"
36" x 24" x 84"
300
300
300
A4-3612-84W
A4-3618-84W
A4-3624-84W
A4-3612-84
A4-3618-84
A4-3624-84
500
500
500
AH4-3612-84W
AH4-3618-84W
AH4-3624-84W
AH4-3612-84
AH4-3618-84
AH4-3624-84
48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 36" x 84"
225
225
225
225
A4-4812-84W
A4-4818-84W
A4-4824-84W
A4-4836-84W
A4-4812-84
A4-4818-84
A4-4824-84
A4-4836-84
375
375
375
375
AH4-4812-84W
AH4-4818-84W
AH4-4824-84W
AH4-4836-84W
AH4-4812-84
AH4-4818-84
AH4-4824-84
AH4-4836-84

60" x 12" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 36" x 84"

150
150
150
150
A4-6012-84W
A4-6018-84W
A4-6024-84W
A4-6036-84W
A4-6012-84
A4-6018-84
A4-6024-84
A4-6036-84
250
250
250
250
AH4-6012-84W
AH4-6018-84W
AH4-6024-84W
AH4-6036-84W
AH4-6012-84
AH4-6018-84
AH4-6024-84
AH4-6036-84
5 Shelves 36" x 12" x 84"
36" x 18" x 84"
36" x 24" x 84"
300
300
300

A5-3612-84W
A5-3618-84W
A5-3624-84W

A5-3612-84
A5-3618-84
A5-3624-84
500
500
500
AH5-3612-84W
AH5-3618-84W
AH5-3624-84W
AH5-3612-84
AH5-3618-84
AH5-3624-84
48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 36" x 84"
225
225
225
225
A5-4812-84W
A5-4818-84W
A5-4824-84W
A5-4836-84W
A5-4812-84
A5-4818-84
A5-4824-84
A5-4836-84
375
375
375
375
AH5-4812-84W
AH54818-84W
AH5-4824-84W
AH5-4836-84W
AH5-4812-84
AH5-4818-84
AH5-4824-84
AH5-4836-84
60" x 12" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 36" x 84"
150
150
150
150
A5-6012-84W
A5-6018-84W
A5-6024-84W
A5-6036-84W
A5-6012-84
A5-6018-84
A5-6024-84
A5-6036-84
250
250
250
250
AH5-6012-84W
AH5-6018-84W
AH5-6024-84W
AH5-6036-84W
AH5-6012-84
AH5-6018-84
AH5-6024-84
AH5-6036-84
6 Shelves 36" x 12" x 84"
36" x 18" x 84"
36" x 24" x 84"
300
300
300
A6-3612-84W
A6-3618-84W
A6-3624-84W
A6-3612-84
A6-3618-84
A6-3624-84
500
500
500
AH6-3612-84W
AH6-3618-84W
AH6-3624-84W

AH6-3612-84
AH6-3618-84
AH6-3624-84
48" x 12" x 84"
48" x 18" x 84"
48" x 24" x 84"
48" x 36" x 84"
225
225
225
225
A6-4812-84W
A6-4818-84W
A6-4824-84W
A6-4836-84W
A6-4812-84
A6-4818-84
A6-4824-84
A6-4836-84
375
375
375
375
AH6-4812-84W
AH6-4818-84W
AH6-4824-84W
AH6-4836-84W
AH6-4812-84
AH6-4818-84
AH6-4824-84
AH6-4836-84
60" x 12" x 84"
60" x 18" x 84"
60" x 24" x 84"
60" x 36" x 84"
150
150
150
150
A6-6012-84W
A6-6018-84W
A6-6024-84W
A6-6036-84W
A6-6012-84
A6-6018-84
A6-6024-84
A6-6036-84
250
250
250
250
AH6-6012-84W
AH6-6018-84W
AH6-6024-84W
AH6-6036-84W
AH6-6012-84
AH6-6018-84
AH6-6024-84
AH6-6036-84
Extra Shelves 36" x 12"
36" x 18"
36" x 24"
300
300
300
AX1-3612-W
AX1-3618-W
AX1-3624-W

AX1-3612
AX1-3618
AX1-3624

500
500
500
AXH1-3612-W
AXH1-3618-W
AXH1-3624-W
AXH1-3612
AXH1-3618
AXH1-3624

48" x 12"
48" x 18"
48" x 24"
48" x 36"

225
225
225
225
AX1-4812-W
AX1-4818-W
AX1-4824-W
AX1-4836-W
AX1-4812
AX1-4818
AX1-4824
AX1-4836
375
375
375
375
AXH1-4812-W
AXH1-4818-W
AXH1-4824-W
AXH1-4836-W
AXH1-4812
AXH1-4818
AXH1-4824
AXH1-4836
60" x 12"
60" x 18"
60" x 24"
60" x 36"
150
150
150
150
AX1-6012-W
AX1-6018-W
AX1-6024-W
AX1-6036-W
AX1-6012
AX1-6018
AX1-6024
AX1-6036
250
250
250
250
AXH1-6012-W
AXH1-6018-W
AXH1-6024-W
AXH1-6036-W
AXH1-6012
AXH1-6018
AXH1-6024
AXH1-6036
Botless Shelving Components:
Jaken

Upright Post:

  • 14-Gauge Construction
  • 1.5” x 1.5” Regular-Duty Post
  • 1.75” x 1.75” Heavy-Duty Post
  • Gray Powder Coated Finish
Jaken

Double Rivet Beam:

  • 16-Gauge Construction (200-DR12 – 200-DR48)
  • 14-Gauge Construction (200-DR60 – 200-DR96)
  • 2.75” Height
  • Can Be Used Left-to-Right or Front-to-Back
  • Gray Powder Coated Finish



Jaken

Single Rivet Beam:

  • Regular-Duty – 14-Gauge
  • Heavy-Duty – 11-Gauge
  • 1” Height
  • Can Be Used Left-to-Right or Front-to-Back
  • Gray Powder Coated Finish
Jaken

Double Rivet Channel Beam:

  • Regular-Duty – 14-Gauge
  • Heavy-Duty – 11-Gauge
  • 2.75” Height
  • Recommended Use is Left-to-Right
  • Gray Powder Coated Finish



Jaken

Tie Plate:

  • Connects units side by side in rows
  • Gray powder coated finish



Jaken

Footplates:

  • Anchors Units to the Ground
  • Gray Powder Coated Finish
Jaken

Shelf Deck Support:

  • 16-Gauge Construction
  • 2.5” Height
  • Increases Strength of Shelf When Bolted Between Double Rivet Beams or Double Rivet Channel Beams
  • Gray Powder Coated Finish



Jaken

Shelving Label Holders:

  • Made of Strong, Clear Plastic
  • Insert Paper is Included



Jaken

Particle Board Decking:

  • ½“ Thick Particle Board – Light-Duty to Standard Applications
  • ¾” Thick Particle Board – Heavy-Duty Applications



Jaken

Mobile Shelf Cart Bases:

  • Composed of Heavy-Duty Steel
  • Available in Various Sizes
  • 5” or 6” Casters Available
  • Gray Powder Coated Finish
Jaken

Wall Tie:

  • Allows for 9” of Space Between Wall and Units
  • Locks Boltless Shelving Units to Wall
  • Gray Powder Coated Finish




Upright Post
Regular Duty Heavy Duty
Part Number Height Part Number Height
200-P2.5
200-P3
200-P4
200-P5
200-P6
200-P7
200-P8
200-P9
200-P10
200-P12

2.5'
3.0'
4.0'
5.0'
6.0'
7.0'
8.0'
9.0'
10.0'
12.0'

200-PH7
200-PH8
200-PH10
200-PH12
7'
8'
10'
12'
Double Rivet Beam
Part Number Length

200-DR12
200-DR15
200-DR18
200-DR24
200-DR30
200-DR36
200-DR42
200-DR48
200-DR60
200-DR69
200-DR72
200-DR84
200-DR96

12”
15”
18”
24”
30”
36”
42”
48”
60”
69”
72”
84”
96”

Single Rivet Beam
Regular Duty Heavy Duty
Part Number Length Part Number Length
200-SR12
200-SR18
200-SR24
200-SR30
200-SR36
200-SR42
200-SR48

12"
18"
24"
30"
36"
42"
48"

200-SRH36
200-SRH48
200-SRH60

36"
48"
60"

Double Rivet Channel Beam
Regular Duty Heavy Duty
Part Number Length Part Number Length
200-DC72
200-DC96

72"
96"

200-DCH72
200-DCH96
72"
96"
Footplates
Part Number
200-FPD (Double)
200-FPR (Right)
200-FPL (Left)
Tie Plate
Part Number
200-TP
Shelf Deck Support
Part Number Length
200-SDS12
200-SDS15
200-SDS18
200-SDS24
200-SDS30
200-SDS36
200-SDS48
12"
15"
18"
24"
30"
36"
48"
Shelving Label Holders
Part Number Description Qty. Per Pack
200-L231
200-L211
200-L251

3/4" x 6", Self-Adhesive
1" x 6", Self-Adhesive
2" x 6", Self-Adhesive

12
12
12
200-M211
200-M261
1" x 6", Magnetic
2.5" x 6", Magnetic
12
12









Mobile Shelf Cart Bases
  with 5" Casters with 6" Casters
Size L x W

Part Number

Part Number
36" x 12"
36" x 18"
36" x 24"
MCKA5-3612
MCKA5-3618
MCKA5-3624
N/A
MCKA6-3618
MCKA6-3624
48" x 12"
48" x 18"
48" x 24"
48" x 36"
MCKA5-4812
MCKA5-4818
MCKA5-4824
MCKA5-4836
MCKA6-4812
MCKA6-4818
MCKA6-4824
MCKA6-4836
60" x 18"
60" x 24"
60" x 30"
60" x 36"
MCKA5-6018
MCKA5-6024
MCKA5-6030
MCKA5-6036
MCKA6-6018
MCKA6-6024
MCKA6-6030
MCKA6-6036
Wall Tie
Part Number Length
200-WT09 9.25"





Particle Board Decking
  1/2" Particle Board 3/4" Particle Board
Size W & D Model Number Model Number
3' Wide Board
36" x 12"
36" x 18"
36" x 24"
36" x 36"
240-013612
240-013618
240-013624
240-013636
240-023612
240-023618
240-023624
240-023636
3.5' Wide Board
42" x 15"
42" x 30"
240-014215
240-014230
240-024215
240-024230
4' Wide Board
48" x 12"
48" x 18"
48" x 24"
48" x 30"
48" x 36"
48" x 48"
240-014812
240-014818
240-014824
240-014830
240-014836
240-014848
240-024812
240-024818
240-024824
240-024830
240-024836
240-024848
5' Wide Board
60" x 12"
60" x 18"
60" x 24"
60" x 30"
60" x 36"
60" x 48"
240-016012
240-016018
240-016024
240-016030
240-016036
240-016048
240-026012
240-026018
240-026024
240-026030
240-026036
240-026048
5.75' Wide Board
69" x 15"
69" x 30"
240-016915
240-016930
240-026915
240-026930
6' WideBoard
72" x 12"
72" x 18"
72" x 24"
72" x 30"
72" x 36"
72" x 48"
240-017212
240-017218
240-017224
240-017230
240-017236
240-017248
240-027212
240-027218
240-027224
240-027230
240-027236
240-027248
7' Wide Board
84" x 12"
84" x 18"
84" x 24"
84" x 30"
84" x 36"
84" x 48"
240-018412
240-018418
240-018424
240-018430
240-018436
240-018448
240-028412
240-028418
240-028424
240-028430
240-028436
240-028448
8' Wide Board
96" x 12"
96" x 18"
96" x 24"
96" x 30"
96" x 36"
96" x 48"
240-019612
240-019618
240-019624
240-019630
240-019636
240-019648
240-029612
240-029618
240-029624
240-029630
240-029636
240-029648




Order by Phone!
800-326-4403
Jaken



Black Z-Beam Shelving:



Jaken

This original Z-Beam design allows for maximum storage ability.  This particle board decking sits flush with the very top of each beam.  The Black Z-Beam Shelving is sold and measured by units as well as components.  With each complete unit, you will receive five shelves and particle board decking.

  • Made of 16-Gauge Steel
  • ½“ Industrial Grade Particle Board Decking
  • Free of Nuts, Bolts, and Shelf Clips
  • Black Powder Coated Finish



Black Z-Beam Shelving
  5-Shelf Unit Extra Shelf
W x D x H Shelf Cap. Weight Model Number Price Weight Model Number Price
36" x 12" x 72"
36" x 18" x 72"
36" x 24" x 72"

500
500
500

59
76
93
L5-3612-72W
L5-3618-72W
L5-3624-72W
$98.33
112.98
128.33

10
14
17

LX1-3612-W
LX1-3618-W
LX1-3624-W
13.93
16.86
19.93
48" x 12" x 72"
48" x 18" x 72"
48" x 24" x 72"
500
500
500

73
95
118

L5-4812-72W
L5-4818-72W
L5-4824-72W

115.38
133.13
151.58

13
18
22

LX1-4812-W
LX1-4818-W
LX1-4824-W
17.34
20.89
24.58
Double Rivet Z-Beams
Length WT. Model Number Price
12"
18"
24"
36"
48"

0.5
0.7
1.0
1.5
1.9

200-ZBDR12
200-ZBDR18
200-ZBDR24
200-ZBDR36
200-ZBDR48
$1.40
1.93
2.53
3.69
4.77
Upright Post
Height WT. Model Number Price
72"

2.5

200-ZBP072 $7.17
1/2" Particle Board Decking
W x D WT. Model Number Price
36" x 12"
36" x 18"
36" x 24"
48" x 12"
48" x 18"
48" x 24"

6.0
9.0
12.0
8.0
12.0
15.9

240-013612
240-013618
240-013624
240-014812
240-014818
240-014824

$3.75
5.62
7.49
5.00
7.49
9.98







Order by Phone!
800-326-4403


Prepackaged Shelving:

Jaken

Modular Steel Shelving:

The Modular Steel Shelving has a unique design which allows for several varying set-up configurations.  There are two possible set-ups to choose from:  a single 72” height shelving unit, or two 36” height work-centers.  Either option can be assembled in minutes, using no nuts, bolts, or shelf clips.  Each shelf does include particle board decking.

  • 14-Gauge Posts
  • 16-Gauge Beams
  • Capacity of 800 Lbs. Per Shelf
  • Capacity of 4,000 Lbs. Per Unit
  • Powder Coated Gray Finish

Modular Steel Shelving Units

W x D x H Weight Model Number Price
36" x 18" x 72"
48" x 24" x 72"

85.0
125.5

200-XR1505
200-XR2505
$119.41
165.60



Bulk Storage Shelving:

Bulk Storage Shelving is comprised of three heavy-duty shelves which can each hold up to 750 lbs.  It is extremely easy to assemble, and the unit comes completely packaged and ready for quick-shipment.

  • Commercial Grade 16-Gauge Steel Frame
  • 5/8” Particle Board Decking
  • Black Powder Coated Finish





Bulk Storage Shelving Units

W x D x H Weight Model Number Price
72" x 18" x 72"

126.0

215-XP7218 $194.16






Order by Phone!
800-326-4403
Jaken

Wire Shelving:

Jaken

Wire Shelving Components:

In order to meet your exact needs, Wire Shelving Components can be purchased individually.  Each shelf is adjustable by 1” increments, and is available in a wide assortment of sizes.  The stationary posts each come with an adjustable leveling bolt which makes up for any uneven planes.  Each component is available in a black powder coat finish or chrome-plated.  All chrome and black wire shelving are certified by the National Sanitation Foundation.

Chrome Stationary Wire Shelving:

There are many benefits that come from selecting open wire construction:  sprinkler effectiveness is increased, visibility is dramatically improved, light and air can circulate freely, and there is a significant reduction in the amount of dust that is built-up.  These units have a quick and easy assembly, and no tools are required.  There are two types of units to choose from when making your purchase:

Four-Shelf Starter Unit:

  • 4 Posts
  • 4 Shelves
  • 4 Adjustable feet
  • 16 Shelf Clips

Four-Shelf Add-On Unit:

  • 2 Posts
  • 4 Shelves
  • 4 Adjustable Feet
  • 8 Add-On Hooks
  • 8 Shelf Clips


Both of these units are available in 63", 74", and 86" tall units.





Chrome Stationary Wire Shelving
    63" High 74" High 86" High 63" High 74" High 86" High Extra Shelf
Shelf Size Shelf Cap. Model Number Model Number Model Number Model Number Model Number Model Number Model Number
  4 Shelf - Starter Unit 4 Shelf - Add-On Unit
18" x 24"
18" x 36"
18" x 42"
18" x 48"
18" x 54"
18" x 60"
18" x 72"

500
500
500
500
400
400
400

WCS4-1824-63
WCS4-1836-63
WCS4-1842-63
WCS4-1848-63
WCS4-1854-63
WCS4-1860-63
WCS4-1872-63

WCS4-1824-74
WCS4-1836-74
WCS4-1842-74
WCS4-1848-74
WCS4-1854-74
WCS4-1860-74
WCS4-1872-74
WCS4-1824-86
WCS4-1836-86
WCS4-1842-86
WCS4-1848-86
WCS4-1854-86
WCS4-1860-86
WCS4-1872-86
WCT4-1824-63
WCT4-1836-63
WCT4-1842-63
WCT4-1848-63
WCT4-1854-63
WCT4-1860-63
WCT4-1872-63
WCT4-1824-74
WCT4-1836-74
WCT4-1842-74
WCT4-1848-74
WCT4-1854-74
WCT4-1860-74
WCT4-1872-74
WCT4-1824-86
WCT4-1836-86
WCT4-1842-86
WCT4-1848-86
WCT4-1854-86
WCT4-1860-86
WCT4-1872-86
205-CS1824
205-CS1836
205-CS1842
205-CS1848
205-CS1854
205-CS1860
205-CS1872
21" x 24"
21" x 36"
21" x 42"
21" x 48"
21" x 54"
21" x 60"
21" x 72"
500
500
500
500
400
400
400

WCS4-2124-63
WCS4-2136-63
WCS4-2142-63
WCS4-2148-63
WCS4-2154-63
WCS4-2160-63
WCS4-2172-63

WCS4-2124-74
WCS4-2136-74
WCS4-2142-74
WCS4-2148-74
WCS4-2154-74
WCS4-2160-74
WCS4-2172-74
WCS4-2114-86
WCS4-2136-86
WCS4-2142-86
WCS4-2148-86
WCS4-2154-86
WCS4-2160-86
WCS4-2172-86
WCT4-2124-63
WCT4-2136-63
WCT4-2142-63
WCT4-2148-63
WCT4-2154-63
WCT4-2160-63
WCT4-2172-63

WCT4-2124-74
WCT4-2136-74
WCT4-2142-74
WCT4-2148-74
WCT4-2154-74
WCT4-2160-74
WCT4-2172-74

WCT4-2124-86
WCT4-2136-86
WCT4-2142-86
WCT4-2148-86
WCT4-2154-86
WCT4-2160-86
WCT4-2172-86
205-CS2124
205-CS2136
205-CS2142
205-CS2148
205-CS2154
205-CS2160
205-CS2172
24" x 24"
24" x 36"
24" x 42"
24" x 48"
24" x 54"
24" x 60"
24" x 72"
500
500
500
500
400
400
400
WCS4-2424-63
WCS4-2436-63
WCS4-2442-63
WCS4-2448-63
WCS4-2454-63
WCS4-2460-63
WCS4-2472-63

WCS4-4124-74
WCS4-2436-74
WCS4-2442-74
WCS4-2448-74
WCS4-2454-74
WCS4-2460-74
WCS4-2472-74

WCS4-2414-86
WCS4-2436-86
WCS4-2442-86
WCS4-2448-86
WCS4-2454-86
WCS4-2460-86
WCS4-2472-86

WCT4-2424-63
WCT4-2436-63
WCT4-2442-63
WCT4-2448-63
WCT4-2454-63
WCT4-2460-63
WCT4-2472-63

WCT4-2424-74
WCT4-2436-74
WCT4-2442-74
WCT4-2448-74
WCT4-2454-74
WCT4-2460-74
WCT4-2472-74

WCT4-2424-86
WCT4-2436-86
WCT4-2442-86
WCT4-2448-86
WCT4-2454-86
WCT4-2460-86
WCT4-2472-86
205-CS2124
205-CS2136
205-CS2142
205-CS2148
205-CS2154
205-CS2160
205-CS2172
36" x 48"
36" x 60"
36" x 72"
500
400
300
WCS4-3648-63
WCS4-3660-63
WCS4-3672-63
WCS4-3648-74
WCS4-3660-74
WCS4-3672-74
WCS4-3648-86
WCS4-3660-86
WCS4-3672-86
WCT4-3648-63
WCT4-3660-63
WCT4-3672-63
WCT4-3648-74
WCT4-3660-74
WCT4-3672-74
WCT4-3648-86
WCT4-3660-86
WCT4-3672-86
205-CS3648
205-CS3660
205-CS3672


Jaken

Chrome Mobile Wire Utility Carts:

Each cart has a durable chrome plating finish with an open wire design.  The carts are extremely steerable, and easy to assemble as no special tools are required.

  • Comes Standard with Four Locking 5” Swivel Casters
  • Adjustable Shelving in 1” Increments
  • 39” Height
  • Available with Two or Three Shelves
  • 600 Lbs. Unit Capacity





Chrome Mobile Wire Utility Carts
  2-Shelf Cart 3-Shelf Cart
Shelf Size

Shelf Cap.

Model Number Model Number
18" x 36"
18" x 42"
18" x 48"
18" x 54"
18" x 60"
18" x 72"
500
500
500
400
400
400
WCD2-1836
WCD2-1842
WCD2-1848
WCD2-1854
WCD2-1860
WCD2-1872
WCD3-1836
WCD3-1842
WCD3-1848
WCD3-1854
WCD3-1860
WCD3-1872
Chrome Mobile Wire Utility Carts
  2-Shelf Cart 3-Shelf Cart
Shelf Size

Shelf Cap.

Model Number Model Number
24" x 36"
24" x 42"
24" x 48"
24" x 54"
24" x 60"

24" x 72"
500
500
500
400
400
400
WCD2-2436
WCD2-2442
WCD2-2448
WCD2-2454
WCD2-2460
WCD2-2472
WCD3-2436
WCD3-2442
WCD3-2448
WCD3-2454
WCD3-2460
WCD3-2472
Jaken

Chrome Mobile Wire Shelving:

Each unit is composed of rust resistant chrome plating and requires no special tools for assembly.

  • Comes Standard with Four Locking 5” Swivel Casters
  • Four Shelves Included
  • Available in 69” and 80” Height
  • 600 Lbs. Unit Capacity
Chrome Mobile Wire Shelving
    69" High 80" High Extra Shelf
Shelf Size Shelf Cap. Model Number Model Number Model Number
18" x 36"
18" x 42"
18" x 48"
18" x 54"
18" x 60"
18" x 72"

500
500
500
400
400
400

WCC4-1836-63
WCC4-1842-63
WCC4-1848-63
WCC4-1854-63
WCC4-1860-63
WCC4-1872-63

WCC4-1836-74
WCC4-1842-74
WCC4-1848-74
WCC4-1854-74
WCC4-1860-74
WCC4-1872-74
205-CS1836
205-CS1842
205-CS1848
205-CS1854
205-CS1860
205-CS1872
21" x 36"
21" x 42"
21" x 48"
21" x 54"
21" x 60"
21" x 72"
500
500
500
400
400
400

WCC4-2136-63
WCC4-2142-63
WCC4-2148-63
WCC4-2154-63
WCC4-2160-63
WCC4-2172-63

WCC4-2136-74
WCC4-2142-74
WCC4-2148-74
WCC4-2154-74
WCC4-2160-74
WCC4-2172-74
205-CS2136
205-CS2142
205-CS2148
205-CS2154
205-CS2160
205-CS2172
24" x 36"
24" x 42"
24" x 48"
24" x 54"
24" x 60"
24" x 72"
500
500
500
400
400
400
WCC4-2436-63
WCC4-2442-63
WCC4-2448-63
WCC4-2454-63
WCC4-2460-63
WCC4-2472-63

WCC4-2436-74
WCC4-2442-74
WCC4-2448-74
WCC4-2454-74
WCC4-2460-74
WCC4-2472-74

205-CS2436
205-CS2442
205-CS2448
205-CS2454
205-CS2460
205-CS2472

36" x 48"
36" x 60"
36" x 72"
500
400
300
WCC4-3648-63
WCC4-3660-63
WCC4-3672-63
WCC4-3648-74
WCC4-3660-74
WCC4-3672-74
205-CS3648
205-CS3660
205-CS3672





























Jaken

Black Powder Coated Stationary Units:

The open wire construction of these units prevents dust build-up and encourages circulation of the free light and air.  This unit has high durability thanks to the powder coated paint finish.

  • Adjustable Shelving in 1” Increments
  • Available in 63”, 74”, and 86” Heights
Black Powder Coated Stationary Units
  63" High 74" High 86" High Extra Shelf
Shelf Size Shelf Cap. Model Number Model Number Model Number Model Number
4-Shelf Starter Unit
18" x 36"
18" x 48"
18" x 60"
18" x 72"

500
400
300
300

WBS4-1836-63
WBS4-1848-63
WBS4-1860-63
WBS4-1872-63
WBS4-1836-74
WBS4-1848-74
WBS4-1860-74
WBS4-1872-74
WBS4-1836-86
WBS4-1848-86
WBS4-1860-86
WBS4-1872-86
205-BS1836
205-BS1848
205-BS1860
205-BS1872
24" x 36"
24" x 48"
24" x 60"
24" x 72"
500
400
300
300
WBS4-2436-63
WBS4-2448-63
WBS4-2460-63
WBS4-2472-63
WBS4-2436-74
WBS4-2448-74
WBS4-2460-74
WBS4-2472-74
WBS4-2436-86
WBS4-2448-86
WBS4-2460-86
WBS4-2472-86
205-BS2436
205-BS2448
205-BS2460
205-BS2472
4-Shelf Add-On Unit
18" x 36"
18" x 48"
18" x 60"
18" x 72"
500
400
300
300
WBT4-1836-63
WBT4-1848-63
WBT4-1860-63
WBT4-1872-63
WBT4-1836-74
WBT4-1848-74
WBT4-1860-74
WBT4-1872-74

WBT4-1836-86
WBT4-1848-86
WBT4-1860-86
WBT4-1872-86

205-BS1836
205-BS1848
205-BS1860
205-BS1872

24" x 36"
24" x 48"
24" x 60"
24" x 72"
500
400
300
300
WBT4-2436-63
WBT4-2448-63
WBT4-2460-63
WBT4-2472-63
WBT4-2436-74
WBT4-2448-74
WBT4-2460-74
WBT4-2472-74
WBT4-2436-86
WBT4-2448-86
WBT4-2460-86
WBT4-2472-86
205-BS2436
205-BS2448
205-BS2460
205-BS2472



























Jaken

Black Powder Coated Mobile Units:

The Black Powder Coated Mobile Units are extremely well-designed.  Each unit has an open wire design, comes standard with four 5” locking swivel casters, and has a powder black coated finish, which is both chip and scratch resistant.

  • Adjustable Shelving in 1” Increments
  • Available in 36”, 69”, and 80” Heights
  • 600 Lbs. Unit Capacity

Black Powder Coated Mobile Units

  36" High 69" High 80" High Extra Shelf
Shelf Size Shelf Cap. Model Number Model Number Model Number Model Number
  2-Shelf 4-Shelf 4-Shelf 1-Shelf
18" x 36"
18" x 48"
18" x 60"
18" x 72"

500
400
300
300

WBC4-1836-30
WBC4-1848-30
WBC4-1860-30
WBC4-1872-30

WBC4-1836-63
WBC4-1848-63
WBC4-1860-63
WBC4-1872-63
WBC4-1836-74
WBC4-1848-74
WBC4-1860-74
WBC4-1872-74
205-BS1836
205-BS1848
205-BS1860
205-BS1872
24" x 36"
24" x 48"
24" x 60"
24" x 72"
500
400
300
300
WBC4-2436-30
WBC4-2448-30
WBC4-2460-30
WBC4-2472-30

WBC4-2436-63
WBC4-2448-63
WBC4-2460-63
WBC4-2472-63

WBC4-2436-74
WBC4-2448-74
WBC4-2460-74
WBC4-2472-74
205-BS2436
205-BS2448
205-BS2460
205-BS2472



















Order by Phone!
800-326-4403
Jaken

Cantilever Rack:

Jaken

Heavy-Duty Cantilever Rack:

The Heavy-Duty Cantilever Rack is the perfect solution for storing bar stock, tubes, or any other long materials.  In order to create a free-standing starter unit, two bases/columns, one brace set, and one set of arms are required.  If desired, additional sections can be purchased as add-ons to the starter unit.  Each component is sold individually.

  • Single and Double-Sided Bases Available
  • Columns Available in 8’, 10’, or 12’ Heights
  • Arms Available in 24”, 36”, or 48” Heights
  • Composed of 14-Gauge Construction



Medium-Duty Cantilever Rack:

The Medium-Duty Cantilever Rack provides both secure and safe storage for all types of extra-long stock.  Each unit can be assembled in less than 10 minutes.

  • Single and Double-Sided Bases Available
  • Each Unit is 79” Tall
  • Arms Adjustable in 1.5” Increments
  • Arms Available in 12”, 18”, or 24” Heights
Heavy-Duty Cantilever Rack
4° Arms
Model Number

Length

Cap. Per Arms
Regular-Duty
215-HA24
215-HA36
215-HA48
24"
36"
48"
1,800
1,200
900
Heavy-Duty
215-HAH36
215-HAH48
36"
48"
2,050
1,600
20° Arms
Model Number Length Cap. Per Arms
Heavy-Duty
215-HBH24
215-HBH36
215-HBH48
24"
36"
48"
2,200
2,050
1,600
Heavy-Duty Cantilever Rack
  Single-Sided Base/Column Double-Sided Base/Column
Arm Length Model Number Cap. Per Column Model Number Cap. Per Column
8' High Column
24"
36"
48"
CHS-09624
CHS-09636
CHS-09648
11,200
8,400
6,700

CHD-09624
CHD-09636
CHD-09648

22,400
16,800
13,400
10' High Column
24"
36"
48"
CHS-12024
CHS-12036
CHS-12048
11,200
8,400
6,700
CHD-12024
CHD-12036
CHD-12048
22,400
16,800
13,400

12' High Column

24"
36"
48"
CHS-14424
CHS-14436
CHS-14448
11,200
8,400
6,700
CHD-14424
CHD-14436
CHD-14448
22,400
16,800
13,000

*Heavy-Duty Arm End-Stops

Model Number Fits Arm
CHAHS01
CHAHS02

20°
*for use with Heavy-Duty Arms only
Heavy-Duty Cantilever Rack
Brace Sets 8' & 10' High 12' High
Width Model Number Model Number

3'
4'
6'
8'

215-HXP36
215-HXP48
215-HXP72
215-HXP96
CHX-36
CHX-48
CHX-72
CHX-96
Medium-Duty Cantilever Rack
Arms with Connecting Bolts
Model Number Capacity Length

215-GA12
215-GA18
215-GA24

1,000
800
600

12"
18"
24"
Brace Beams
Model Number Length
215-CBL30036
215-CB30048
215-CB30072
36"
48"
72"
Medium-Duty Cantilever Rack
  Single-Sided Base/Column Double-Sided Base/Column
Length Model Number Model Number
12"
18"
24"

215-GCS08012
215-GCS08018
215-GCS08024

215-GCD08012
215-GCD08018
215-GCD08024

















Medium-Duty Cantilever Rack
  Single-Sided Base/Column Double-Sided Base/Column
Arm Length 36" Wide Unit 48" Wide Unit 72" Wide Unit 36" Wide Unit 48" Wide Unit 72" Wide Unit



Starter Unit Add-On Unit Starter Unit Add-On Unit Starter Unit Add-On Unit

Starter Unit

Add-On Unit Starter Unit Add-On Unit Starter Unit Add-On Unit
12" Arm
18" Arm
24" Arm

HSS36-12
HSS36-18
HSS36-24

HST36-12
HST36-18
HST36-24

HSS48-12
HSS48-18
HSS48-24

HST48-12
HST48-18
HST48-24
HSS72-12
HSS72-18
HSS72-24
HST72-12
HST72-18
HST72-24

HDS36-12
HDS36-18
HDS36-24

HDT36-12
HDT36-18
HDT36-24
HDS48-12
HDS48-18
HDS48-24
HDT48-12
HDT48-18
HDT48-24
HDS72-12
HDS72-18
HDS72-24
HDT72-12
HDT72-18
HDT72-24





Order by Phone!
800-326-4403
Jaken

Stackable Bins & Shelving:
Jaken

Stackable Bins:

Each of these stackable bins is essentially indestructible, made from heavy-duty polypropylene with lasting molded-in color.  They are water, rust, and corrosion-proof.  Each bin has finger grips that allow for easier handling, and reinforced ribs to prevent them from collapsing under a heavy load.  Typically, these bins are used in the areas of production, assembly, manufacturing, and repair.  The bins are available for purchase in nine different sizes and three different colors (blue, yellow, and red).


Stackable Bins
Outside D x W x H *Ctn Qty. Blue Bins Yellow Bins Red Bins

5⅜” x 4⅛” x 3”
7⅜” x 4⅛” x 3”
10⅞” x 5½ ” x 5”
10⅞” x 11 ” x 5”
10¾ ” x 8¼ ” x 7”
14¾” x 8½” x 7”
14¾” x 16½” x 7”
18” x 11” x 10”
18” x 16½” x 11”

24
24
12
6
6
12
6
4
3
225-QTB210
225-QTB220
225-QTB230
225-QTB235
225-QTB239
225-QTB-240
225-QTB-250
225-QTB-260
225-QTB-270
225-QTY210
225-QTY220
225-QTY230
225-QTY235
225-QTY239
225-QTY240
225-QTY250
225-QTY260
225-QTY270
225-QTR210
225-QTR220
225-QTR230
225-QTR235
225-QTR239
225-QTR240
225-QTR250
225-QTR260
225-QTR270
Clear Plastic Windows
Fits Bin *Ctn Qty. Model Number

225-QT(B/Y/R)210
225-QT(B/Y/R)220
225-QT(B/Y/R)230
225-QT(B/Y/R)235
225-QT(B/Y/R)239
225-QT(B/Y/R)240
225-QT(B/Y/R)250
225-QT(B/Y/R)260
225-QT(B/Y/R)270

N/A
N/A
12
6
6
12
6
4
3
N/A
N/A
225-QTAW230
225-QTAW235
225-QTAW239
225-QTAW240
225-QTAW250
225-QTAW260
225-QTAW270
Bin Dividers
Fits Bin *Pkg Qty. Model Number

225-QT(B/Y/R)210
225-QT(B/Y/R)220
225-QT(B/Y/R)230
225-QT(B/Y/R)235
225-QT(B/Y/R)239
225-QT(B/Y/R)240
225-QT(B/Y/R)250
225-QT(B/Y/R)260
225-QT(B/Y/R)270

6
6
6
6
6
6
6
6
6
225-QTAD210
225-QTAD220
225-QTAD230
225-QTAD235
225-QTAD239
225-QTAD240
225-QTAD250
225-QTAD260
225-QTAD270

Jaken Jumbo Bin Storage Units:

Each Jumbo Bin Storage Unit comes with a series of bins that are made up of heavy-duty polypropylene, allowing them to be resistant to water, grease, and oil.  These units are efficient as well as being a cost-effective way to store small, medium, and large parts.  With a simple, quick assembly, thanks to the heavy-duty industrial boltless design, these bin storage units will provide years of reliable service.  Each bin is available in blue, yellow, or red.
Series 200A Units with Bins
W x D x H # of Bins # of Shelves Model Number

36” x 18” x 36”
48” x 18” x 36”
36” x 18” x 72”
48” x 18” x 72”

6
18
15
20
3
3
6
6
QK1-(B/Y/R)260
QK2-(B/Y/R)260
QL1-(B/Y/R)260
QL2-(B/Y/R)260
Series 200B Units with Bins
W x D x H # of Bins # of Shelves Model Number

36” x 18” x 67”
48” x 18” x 67”
60” x 18” x 67”
72” x 18” x 72”
96” x 18” x 72”

12
16
20
24
32
5
5
5
5
5
QP1-(B/Y/R)260
QP2-(B/Y/R)260
QP3-(B/Y/R)260
QP4-(B/Y/R)260
QP5-(B/Y/R)260
Mobile Units with Bins
W x D x H # of Bins # of Shelves Model Number

48” x 18” x 67”
60” x 18” x 67”
48” x 36” x 67”
60” x 36” x 67”

16
20
32
40
5
5
5
5
QM2-(B/Y/R)260
QM3-(B/Y/R)260
QM7-(B/Y/R)260
QM8-(B/Y/R)260









Jaken

Free-Standing Bin Storage Units:

These Free-Standing Bin Storage Units are the ideal solution for a simple and quick way to store small and medium parts.  Each bin can be easily removed from the storage unit and used to transport small and medium-sized parts to work areas.  These units are perfect for use in an assembly/production area.

  • Composed of Polypropylene
  • Bench Units – 36” Wide x 30” Tall
  • Floor Units – 36” Wide x 60” Tall
  • Floor Units are Available in Single or Double-Sided Configurations
  • 750 Lbs. Total Unit Capacity
Bench Rack - 36"W x 30"H
Bin D x W x H # of Rows Bins/Row # of Bins Model Number

5⅜” x 4⅛” x 3”
7⅜” x 4⅛” x 3”
10⅞” x 5½” x 5”
10⅞” x 11” x 5”
10¾” x 8¼” x 7”

5
5
4
4
3
8
8
6
3
4

40
40
24
12
12

QE(B/Y/R)210
QE(B/Y/R)220
QE(B/Y/R)230
QE(B/Y/R)235
QE(B/Y/R)239
5⅜” x 4⅛” x 3”
7⅜” x 4⅛” x 3”
10⅞” x 5½” x 5”
1
1
2
8
8
6
8
8
12
QE(B/Y/R)C1
4 total rows
Single-Sided Floor Rack - 36"W x 30"H
Bin D x W x H # of Rows Bins/Row # of Bins Model Number

5⅜” x 4⅛” x 3”
7⅜” x 4⅛” x 3”
10⅞” x 5½” x 5”
10⅞” x 11” x 5”
10¾” x 8¼” x 7”
14¾” x 8½” x 7”
14¾” x 16½” x 7”

12
12
9
9
7
7
7

8
8
6
3
4
4
2

96
96
54
27
28
28
14

QF(B/Y/R)210
QF(B/Y/R)220
QF(B/Y/R)230
QF(B/Y/R)235
QF(B/Y/R)239
QF(B/Y/R)240
QF(B/Y/R)250

5⅜” x 4⅛” x 3”
7⅜” x 4⅛” x 3”
10⅞” x 5½” x 5”
10¾” x 8¼” x 7”
14¾” x 8½” x 7”

2
2
3
2
1

8
8
6
4
4

16
16
18
8
4

QE(B/Y/R)C1 4
10 total rows


Order by Phone!
800-326-4403
Jaken

Bins & Bin Units:



Plastic Bins:

Each Plastic Bin is composed of injection molded polypropylene, making them incredibly durable, and resistant to oil and grease.  The bin cups are designed to fit into all plastic bins.  Each plastic bin is available in yellow, and the bin dividers are available in black.
Plastic Bins
Model Number W x D x H

255-SB124
255-SB126
255-SB128

4” x 11½” x 4”
6” x 11½” x 4”
8” x 11½” x 4”
255-SB184
255-SB186
4” x 17½” x 4”
6” x 17½” x 4”

Bin Cup

Model Number Outside W x D x H
225-SBC1

3¼” x 1⅞” x 3”

Bin Dividers

Model Number For Bin Width
255-SBD4
255-SBD6
255-SBD8

4”
6”
8”

Corrugated Bins

Model Number Bin Size W x D x H
255-BC124
255-BC126
255-BC128
255-BC184
255-BC186

4” x 12” x 4”
6” x 12” x 4”
8” x 12” x 4”
4” x 18” x 4”
6” x 18” x 4”

Corrugated Bins:

Corrugated Bins provide an extremely cost-effective way to organize and store small, loose parts.  Each bin is composed of 200 lb. tested corrugated board.  The bins fold together quickly and are ready for use in mere seconds.  Each carton comes with 100 bins.

Jaken Bin Shelving Units:

Each Bin Shelving Unit is highly efficient and are made up of either polypropylene or corrugated material, and are perfect for organizing small parts.  Bin storage units come in 36” height with 6 shelves, or 72” height with 12 shelves.
Units with Corrugated Bins
Shelving Size W x D x H Bin Size W x D x H # of Bins Model Number
36" High Units
36” x 12” x 36”
36” x 12” x 36”
36” x 12” x 36”
36” x 18” x 36”
36” x 18” x 36”
4” x 12” x 4”
6” x 12” x 4”
8” x 12” x 4”
4” x 18” x 4”
6” x 18” x 4”
40
25
20
40
25
A6-3612-36W-CB4
A6-3612-36W-CB6
A6-3612-36W-CB8
A6-3618-36W-CB4
A6-3618-36W-CB6
72" High Units
36” x 12” x 72”
36” x 12” x 72”
36” x 12” x 72”
36” x 18” x 72”
36” x 18” x 72”

4” x 12” x 4”
6” x 12” x 4”
8” x 12” x 4”
4” x 18” x 4”
6” x 18” x 4"

88
55
44
88
55
A12-3612-72W-CB4
A12-3612-72W-CB6
A12-3612-72W-CB8
A12-3618-72W-CB4
A12-3618-72W-CB6

36” x 12” x 72”

4” x 12” x 4”
6” x 12” x 4”
40
30
A12-3612-72W-CBC
11 total rows
36” x 18” x 72” 4” x 18” x 4”
6” x 18” x 4”
40
30
A12-3618-72W-CBC
11 total rows
Units with Plastic Bins
Shelving Size W x D x H Bin Size W x D x H # of Bins Model Number
36" High Units
36” x 12” x 36”
36” x 12” x 36”
36” x 12” x 36”
36” x 18” x 36”
36” x 18” x 36”
4” x 12” x 4”
6” x 12” x 4”
8” x 12” x 4”
4” x 18” x 4”
6” x 18” x 4”
40
25
20
40
25
A6-3612-36W-SB4
A6-3612-36W-SB6
A6-3612-36W-SB8
A6-3618-36W-SB4
A6-3618-36W-SB6
72" High Units
36” x 12” x 72”
36” x 12” x 72”
36” x 12” x 72”
36” x 18” x 72”
36” x 18” x 72”

4” x 12” x 4”
6” x 12” x 4”
8” x 12” x 4”
4” x 18” x 4”
6” x 18” x 4"

88
55
44
88
55
A12-3612-72W-SB4
A12-3612-72W-SB6
A12-3612-72W-SB8
A12-3618-72W-SB4
A12-3618-72W-SB6

36” x 12” x 72”

4” x 12” x 4”
6” x 12” x 4”
40
30
A12-3612-72W-SBC
11 total rows
36” x 18” x 72” 4” x 18” x 4”
6” x 18” x 4”
40
30
A12-3618-72W-SBC
11 total rows
Jaken Mobile Shelving with Plastic or Corrugated Bins:

These Heavy-Duty Mobile Shelving Carts are ideal for the transport of bins to work areas.  They are made of heavy-duty material and come complete with either plastic or corrugated bins.  Each unit is available for purchase as single or double-sided.
  Single-Sided Units Double-Sided Units Single-Sided Units Double-Sided Units
Cart W x D x H Bin Size W x D x H # of Bins Model Number # of Bins Model Number # of Bins Model Number # of Bins Model Number
With Plastic Bins With Corrugated Bins
48” x 12” x 37” 48” x 12” x 37” 48” x 12” x 37” 48” x 18” x 37” 48” x 18” x 37” 4” x 12” x 4”
6” x 12” x 4”
8” x 12” x 4”
4” x 18” x 4”
6” x 18” x 4”

44
28
20
44
28

CA5-4812-30W-S4
CA5-4812-30W-S6
CA5-4812-30W-S8
CA5-4818-30W-S4
CA5-4818-30W-S6

88
56
40
88
56

CA5-4824-30W-S4 CA5-4824-30W-S6 CA5-4824-30W-S8 CA5-4836-30W-S4 CA5-4836-30W-S6 44
28
20
44
28
CA5-4812-30W-C4 CA5-4812-30W-C6 CA5-4812-30W-C8 CA5-4818-30W-C4 CA5-4818-30W-C6 88
56
40
88
56
CA5-4824-30W-C4 CA5-4824-30W-C6 CA5-4824-30W-C8 CA5-4836-30W-C4 CA5-4836-30W-C6
48” x 12” x 67” 48” x 12” x 67” 48” x 12” x 67” 48” x 18” x 67” 48” x 18” x 67” 4” x 12” x 4”
6” x 12” x 4”
8” x 12” x 4”
4” x 18” x 4”
6” x 18” x 4”

88
56
40
88
56

CA9-4812-60W-S4 CA9-4812-60W-S6 CA9-4812-60W-S8 CA9-4818-60W-S4 CA9-4818-60W-S6 176
112
80
176
112
CA9-4824-60W-S4 CA9-4824-60W-S6 CA9-4824-60W-S8 CA9-4836-60W-S4 CA9-4836-60W-S6 88
56
40
88
56
CA9-4812-60W-C4 CA9-4812-60W-C6 CA9-4812-60W-C8 CA9-4818-60W-C4 CA9-4818-60W-C6 176
112
80
176
112
CA9-4824-60W-C4 CA9-4824-60W-C6 CA9-4824-60W-C8 CA9-4836-60W-C4 CA9-4836-60W-C6
Jaken Pick Racks:

Perfect for categorizing small parts, these Pick Racks have angled shelves that allow for excellent visibility and easy access to supplies and parts.
  • Available with Polypropylene Bins or Corrugated Storage Bins
  • Available with 4”, 6”, or 8” Wide Bins
  • Bench Rack Dimensions – 34”W x 12”D x 23”H
  • Floor Rack Dimensions – 34”w x 12”d x 61”H
Pick Rack
  With Plastic Bins With Corrugated Bins
Bin Size W x D x H # of Bins Model Number Model Number
Floor Rack
4” x 11½” x 4”
6” x 11½” x 4”
8” x 11½” x 4”
60
40
32
PRF-SB4
PRF-SB6
PRF-SB8
PRF-CB4
PRF-CB6
PRF-CB8
Rack Only N/A 235-PRF1
Bench Rack
  With Plastic Bins With Corrugated Bins
Bin Size W x D x H # of Bins Model Number Model Number
Bench Rack
4” x 11½” x 4”
6” x 11½” x 4”
8” x 11½” x 4”
24
15
12
PRB-SB4
PRB-SB6
PRB-SB8
PRB-CB4
PRB-CB6
PRB-CB8
Rack Only N/A 235-PRB1



Order by Phone!
800-326-4403


Record Archive Shelving:

Jaken

Record Archive Storage Units:

The Record Archive Storage Units utilize heavy-duty boltless shelving which allows for easy access to file boxes from either side of the unit.  Each unit is available with or without ½“ particle board decking, and has a powder coated grey finish.  The archive storage boxes are available separately.





Series 200A
  With Particle Board Without Particle Board
Size W x H Box Cap. Model Number Model Number
Archive Shelving for 15" Deep Boxes
42” x 60”
42” x 84”
15
21
A5-4215-60W
A7-4215-84W
A5-4215-60
A7-4215-84
Archive Shelving for 24" Deep Boxes
42” x 60”
42” x 84”
15
21
A5-4224-60W
A7-4224-84W
A5-4224-60
A7-4224-84
Series 200B
  With Particle Board Without Particle Board
W x H Box Cap. Box Depth Model Number Model Number
Archive Shelving for 15" Deep Boxes
69” x 60”
69” x 84”
69” x 108”
30
40
50
Single
Single
Single
B3-6915-60W
B4-6915-84W
B5-6915-108W
B3-6915-60
B4-6915-84
B5-6915-108
42” x 60”
42” x 84”
69” x 60”
69” x 84”
69” x 108”
36
48
60
80
100
Double
Double
Double
Double
Double
B3-4230-60WH
B4-4230-84WH
B3-6930-60WH
B4-6930-84WH
B5-6930-108WH
B3-4230-60H
B4-4230-84H
B3-6930-60H
B4-6930-84H
B5-6930-108H
Archive Shelving for 24" Deep Boxes
69” x 60”
69” x 84”
69” x 108”
30
40
50
Single
Single
Single
B3-6924-60W
B4-6924-84W
B5-6924-108W
B3-6924-60
B4-6924-84
B5-6924-108
69” x 60”
69” x 84”
69” x 108”
60
80
100
Double
Double
Double
B3-6948-60WH
B4-6948-84WH
B5-6948-108WH
B3-6948-60H
B4-6948-84H
B5-6948-108H
Jaken

FastRak Record Archive Storage Units:

The Record Archive Storage Units utilize heavy-duty boltless shelving which allows for easy access to file boxes from either side of the unit.  Each unit is available with or without ½“ particle board decking, and has a powder coated grey finish.  The archive storage boxes are available separately.

  Starter Unit Add-On Unit
Size W x D x H # of Levels Box Cap. Box Depth Model Number Model Number
Archive Shelving for 15" Deep Boxes
96” x 18” x 96” 96” x 18” x 120” 4
5
56
70
Single
Single
K34S-9618096W/WS
K35S-9618120W/WS
K34T-9618096W/WS
K35T-9618120W/WS
96” x 36” x 96” 96” x 36” x 120” 4
5
112
140
Double
Double
K34S-9636096W/WS
K35S-9636120W/WS
K34T-9636096W/WS
K35T-9636120W/WS
Archive Shelving for 24" Deep Boxes
96” x 24” x 96” 96” x 24” x 120” 4
5
56
70
Single
Single
K34S-9624096W/WS
K35S-9624120W/WS
K34T-9624096W/WS
K35T-9624120W/WS
96” x 48” x 96” 96” x 48” x 120” 4
5
112
140
Double
Double
K34S-9648096W/WS
K35S-9648120W/WS
K34T-9648096W/WS
K35T-9648120W/WS


15" Deep Archive Boxes:

  • 200 Lbs. Corrugated
  • Perfect for Storing Documents
  • Can Accommodate Letter or Legal Size Records
  • 12 Boxes/Bundle
  • Color – White

24" Deep Archive Boxes:

  • Double Walled Panels and Reinforced Handles
  • Snug Fitting Lid, Can Easily Be Removed
  • 12 Boxes/Bundle
  • Color – White
Individual Archive Boxes:

The Individual Archive Boxes are available to order with a 15" depth or a 24" depth.



Order by Phone!
800-326-4403
Jaken



Carts & Trucks:



Jaken Service Carts & Platform Trucks:

Service Carts and Platform Trucks are an excellent method of transport for small and heavy items alike.  With a large variety of carts and trucks, Jaken is guaranteed to have a transport unit to fit your specific needs.

All Welded Steel Service Carts:

  • 100% Steel
  • Carts Come Assembled and Welded
  • Heavy-Duty Ball-Bearing Casters with 5” or 6” Rubber Wheels
  • Two Rigid and Two Swivel Casters Included with Cart
  • 5” Casters – 600 Lbs. Capacity
  • 6” Casters – 1200 Lbs. Capacity
  • Cart Height – 34”
  2-Shelf Cart 3-Shelf Cart
Shelf Size Model Number Model Number
5" Rubber Wheels
16” x 30”
24” x 36”
24” x 48”
220-CST1630
220-CST2436
220-CST2448
220-CSD1630
220-CSD2436
220-CSD2448
6" Rubber Wheels
16” x 30”
24” x 36”
24” x 48”
220-CSTH1630
220-CSTH2436
220-CSTH2448
220-CSDH1630
220-CSDH2436
220-CSDH2448

Durable Plastic Service Carts:

  • Ideal for Use with Electronic Components
  • Two Rigid and Two Swivel  5” Casters Included with Cart
  • 300 Lbs. Capacity
  • Cart Height – 33.5”
  2-Shelf Cart 3-Shelf Cart
Shelf Size Model Number Model Number
16” x 30”
24” x 36”
220-CSP1630
220-CSP2436
MCSP1630
MCSP2436

Economy Service Carts:

  • Composed of Heavy-Gauge Steel
  • Each Tray is 3.3” Deep
  • Top Tray is Reversible to Create Platform Top
  • Two Swivel and Two Rigid Casters
  • 400 Lbs. Capacity
  • Cart Height – 32”

  2-Shelf Cart
Shelf Size Model Number
16" x 30" 220-CSK1630

Platform Carts with Fold-Down Handle:

  • Ideal for Transporting Light Equipment
  • 4” or 5” Casters Available
  • Fold-Down Handle Included for Easy Storage
W x L Caster Size Model Number Weight Cap.
17” x 27” 22” x 34” 4"
5"
PFD1
PFD2
300
500

Steel Platform Trucks:

  • Composed of Heavy-Gauge Steel
  • Deck of Platform is Reinforced
  • Removable Handle and Two Handle Cross Braces Included
  • Two Swivel and Two Rigid Casters
  • 5” Casters – 800 Lbs. Capacity
  • 6” Casters – 1,200 Lbs. Capacity
  • 8” Casters – 1,600 Lbs. Capacity
  5" Casters 6" Casters 8" Casters
W x L Model Number Model Number Model Number
24” x 48”
27” x 54”
30” x 60”
36” x 72”
PR2448
PR2754
PR3060
PR3672
PS2448
PS2754
PS3060
PS3672
PW2448
PW2754
PW3060
PW3672

Durable Plastic Platform Truck:

  • Four Caster Truck – Two Swivel and Two Rigid Casters
  • Six Caster Truck – Four Swivel and Two Rigid Casters
  • Choose Between One or Two Handles
  • 6” Casters – 1,200 Lbs. Capacity
  • 8” Casters – 1,600 Lbs. Capacity

    6" Casters 8" Casters
W x L # Casters Model Number Model Number
1-Handle Unit
29½” x 59½” 29½” x 59½” 4
6
PPT3060-A16
PPT3060-B16
PPT3060-A18
PPT3060-B18
2-Handle Unit
29½” x 59½” 29½” x 59½” 4
6
PPT3060-A26
PPT3060-B26
PPT3060-A28
PPT3060-B28



Order by Phone!
800-326-4403
Jaken


Mobile Shelving & Workbenches:



Jaken

Mobile Shelf Carts:

Mobile shelf carts are highly efficient and well designed, composed of heavy-duty steel.  The shelves can be installed with flange-down for tray style or flange-up for deck style.

  • 700 Lbs. Capacity Per Cart
  • 5’ Post, 66” Overall Height
  • Heavy-Duty 5” Casters Included
  • Particle Board is Optional
  With Particle Board Without Particle Board With Particle Board Without Particle Board
Shelf W x D Model Number Model Number Model Number Model Number
  3-Shelf Mobile Unit 4-Shelf Mobile Unit
36” x 24” BC3-3624-60W
BC3-3624-60 BC4-3624-60W BC4-3624-60
48” x 12”
48” x 18”
48” x 24”
48” x 36”
BC3-4812-60W
BC3-4818-60W
BC3-4824-60W
BC3-4836-60W
BC3-4812-60
BC3-4818-60
BC3-4824-60
BC3-4836-60
BC4-4812-60W
BC4-4818-60W
BC4-4824-60W
BC4-4836-60W
BC4-4812-60
BC4-4818-60
BC4-4824-60
BC4-4836-60
60” x 24”
60” x 30”
60” x 36”
BC3-6024-60W
BC3-6030-60W
BC3-6036-60W
BC3-6024-60
BC3-6030-60
BC3-6036-60
BC4-6024-60W
BC4-6030-60W
BC4-6036-60W
BC4-6024-60
BC4-6030-60
BC4-6036-60















Jaken Mobile Workbenches:

These convenient Mobile Workbenches will allow you to save time and money.  Each bench can support up to 600 pounds, and comes with two 5” swivel casters and two 5” rigid casters.  The mobile workbench is 36” in overall height, and has a powder coated grey finish.
  2-Shelf Workbench 3-Shelf Workbench Extra Shelf
Shelf W x D Model Number Model Number Model Number
36” x 24” BC2-3624-30W BC3-3624-30W BX1-3624-W
48” x 12”
48” x 18”
48” x 24”
48” x 36”
BC2-4812-30W
BC2-4818-30W
BC2-4824-30W
BC2-4836-30W
BC3-4812-30W
BC3-4818-30W
BC3-4824-30W
BC3-4836-30W
BX1-4812-W
BX1-4818-W
BX1-4824-W
BX1-4836-W
60” x 24”
60” x 30”
60” x 36”
BC2-6024-30W
BC2-6030-30W
BC2-6036-30W
BC3-6024-30W
BC3-6030-30W
BC3-6036-30W
BX1-6024-W
BX1-6030-W
BX1-6036-W













Jaken

Heigh Adjustable Workbenches:

  • Height Can Be Adjusted From 30.5” – 36.5”
  • Choose From Shop Top or Steel Top Work Surface
  • 100% Welded Steel Legs
  • Raised Shelving is 12” Above Work Surface and 10” Deep
Shelf W x D Worksurface Only Worksurface with Bottom Shelf Worksurface with Bottom Shelf & Riser Worksurface with Bottom Shelf, Riser & Drawer
60” x 30”
60” x 36”
72” x 30”
72” x 36”
G55(T/S)-6030
G55(T/S)-6036
G55(T/S)-7230
G55(T/S)-7236
G56(T/S)-6030
G56(T/S)-6036
G56(T/S)-7230
G56(T/S)-7236
G58(T/S)-6030
G58(T/S)-6036
G58(T/S)-7230
G58(T/S)-7236
G59(T/S)-6030
G59(T/S)-6036
G59(T/S)-7230
G59(T/S)-723







Jaken

Series 200B Workbenches:

Each of these units is exceptionally easy to assemble and comes in a wide variety of sizes, designed to fit your exact needs.  Each work surface is 36” high and comes with raised shelving that is 24” above the work surface, and 12” deep.  Particle board decking is optional for each unit.

  Worksurface Only Worksurface Plus Bottom Shelf Worksurface Plus Top Shelf Worksurface Plus Top & Bottom Shelf
Shelf W x D with Decking without Decking with Decking without Decking with Decking without Decking with Decking without Decking
48” x 24” 48” x 30” 48” x 36” 48” x 48” BW1-4824-W
BW1-4830-W
BW1-4836-W
BW1-4848-W

BW1-4824 BW1-4830 BW1-4836 BW1-4848 BW2-4824-W
BW2-4830-W
BW2-4836-W
BW2-4848-W
BW2-4824 BW2-4830 BW2-4836 BW2-4848 BW3-4824-W
BW3-4830-W
BW3-4836-W
BW3-4848-W
BW3-4824 BW3-4830 BW3-4836 BW3-4848 BW4-4824-W
BW4-4830-W
BW4-4836-W
BW4-4848-W
BW4-4824 BW4-4830 BW4-4836 BW4-4848
60” x 24” 60” x 30” 60” x 36” 60” x 48” BW1-6024-W
BW1-6030-W
BW1-6036-W
BW1-6048-W
BW1-6024 BW1-6030 BW1-6036 BW1-6048 BW2-6024-W
BW2-6030-W
BW2-6036-W
BW2-6048-W
BW2-6024 BW2-6030 BW2-6036 BW2-6048 BW3-6024-W
BW3-6030-W
BW3-6036-W
BW3-6048-W
BW3-6024 BW3-6030 BW3-6036 BW3-6048 BW4-6024-W
BW4-6030-W
BW4-6036-W
BW4-6048-W
BW4-6024 BW4-6030 BW4-6036 BW4-6048
72” x 24” 72” x 30” 72” x 36” 72” x 48” BW1-7224-W
BW1-7230-W
BW1-7236-W
BW1-7248-W
BW1-7224 BW1-7230 BW1-7236 BW1-7248 BW2-7224-W
BW2-7230-W
BW2-7236-W
BW2-7248-W
BW2-7224 BW2-7230 BW2-7236 BW2-7248 BW3-7224-W
BW3-7230-W
BW3-7236-W
BW3-7248-W
BW3-7224 BW3-7230 BW3-7236 BW3-7248 BW4-7224-W
BW4-7230-W
BW4-7236-W
BW4-7248-W
BW4-7224 BW4-7230 BW4-7236 BW4-7248
96” x 24” 96” x 30” 96” x 36” 96” x 48”
BW1-9624-W
BW1-9630-W
BW1-9636-W
BW1-9648-W
BW1-9624 BW1-9630 BW1-9636 BW1-9648 BW2-9624-W
BW2-9630-W
BW2-9636-W
BW2-9648-W
BW2-9624 BW2-9630 BW2-9636 BW2-9648 BW3-9624-W
BW3-9630-W
BW3-9636-W
BW3-9648-W
BW3-9624 BW3-9630 BW3-9636 BW3-9648 BW4-9624-W
BW4-9630-W
BW4-9636-W
BW4-9648-W
BW4-9624 BW4-9630 BW4-9636 BW4-9648











Jaken

FastRak Workbenches:

The FastRak Workbenches are perfect for all types of heavy-duty applications, including shipping/receiving, assembly lines, and workshops.

  • Supports 1,800 lbs. on a 72” Wide Unit
  • Work Surface is Approximately 36” High
  • Heavy-Duty Step Beams All Lock into One Piece
  • Thick ¾“ Particle Board Fits Inside Step Beams
    Single-Shelf Dual-Shelf
Shelf W x D Shelf Cap. Model Number Model Number
48” x 36”
48” x 48”
2000 lbs.
2000 lbs
KB1-4836-W
KB1-4848-W
KB2-4836-W
KB2-4848-W

72” x 36”
72” x 48”

72” x 36”
72” x 48”
KB1-7236-W
KB1-7248-W
KB2-7236-W
KB2-7248-W
96” x 36”
96” x 48”
1600 lbs.
1600 lbs.
KB1-9636-W
KB1-9648-W
KB2-9636-W
KB2-9648-W













Order by Phone!
800-326-4403



Stock, Reel & Tire Racks:



Jaken

FastRak Reel Racks:

Reel Racks are completely welded and extremely adaptable, and designed to handle heavy amounts of weight. A row of racks can be created by purchasing “Add-On” units.

  • Beams Can Be Adjusted in 1.5” Increments
  • Starter Units Include 2 Uprights, 3 Beams, and 3 Rods
  • 2 Brackets are Required Per Level
  • 1” Diameter Rod Can Support Up to 350 Lbs. Per Level
  • Entire Unit Capacity is 4,000 Lbs.
  Starter Units Add-On Units
W x D Model Number Model Number
3' High Units
24” x 18”
36” x 18”
48” x 18”
FRS-2418-036
FRS-3618-036
FRS-4818-036
FRT-2418-036
FRT-3618-036
FRT-4818-036
6' High Units
24” x 24”
36” x 24”
48” x 24”
FRS-2424-072
FRS-3624-072
FRS-4824-072
FRT-2424-072
FRT-3624-072
FRT-4824-072
8' High Units
24” x 24”
36” x 24”
48” x 24”
24” x 36”
36” x 36”
48” x 36”
FRS-2424-096
FRS-3624-096
FRS-4824-096
FRS-2436-096
FRS-3636-096
FRS-4836-096
FRT-2424-096
FRT-3624-096
FRT-4824-096
FRT-2436-096
FRT-3636-096
FRT-4836-096
10' High Units
24” x 24”
36” x 24”
48” x 24”
24” x 36”
36” x 36”
48” x 36”
FRS-2424-120
FRS-3624-120
FRS-4824-120
FRS-2436-120
FRS-3636-120
FRS-4836-120
FRT-2424-120
FRT-3624-120
FRT-4824-120
FRT-2436-120
FRT-3636-120
FRT-4836-120
Extra Rods Extra Brackets
Size Model Number Desc. Model Number
24” Bar
36” Bar
48” Bar
215-CR01024
215-CR01036
215-CR01048
Left Bracket
Right Bracket
215-CRBL01
215-CRBR01
Jaken

FastRak Tire Storage Shelving:

Tire Storage Shelving comes with an extra heavy-duty design and is ideal for storing oversized tires.  FastRak Tire Storage Shelving easily accommodates rims that are 16” and larger.

  • 48”W, 72”W, and 96” W Units Accommodate 6, 9, and 12 tires per level respectively
  • All Units are 18” Deep
  • Optional Deluxe Foot Plates
  • Optional Concrete Wedge Anchors
    Starter Units Add-On Units   Starter Units Add-On Units
W x D # of Levels Model Number Model Number # of Levels Model Number Model Number
48” x 18”
72” x 18”
96” x 18”

3
3
3

K33S-4818096
K33S-7218096
K33S-9618096
K33T-4818096
K33T-7218096
K33T-9618096
4
4
4
K34S-4818120
K34S-7218120
K34S-9618120
K34T-4818120
K34T-7218120
K34T-9618120
Optional Deluxe Footplate Optional Wedge Anchor
Model Number Weight Model Number Weight
CUCF01 1.0 235-FA01 0.1
Jaken

Stock Racks:

There are two types of stock racks: Vertical Stock Racks and Horizontal Stock Racks. Both types of stock racks have a powder coated gray finish.

Vertical Stock Rack:

  • High-Strength Tubular Steel Arms Protrude 8” From Frame
  • Each Pan Shelf is Spaced 21” Apart
  • Unit Base – 36” Wide x 24” Deep
  • Capacity of 3,000 Lbs.
  • Unit Weighs 80 Lbs.

Horizontal Stock Rack:

  • Angled Steel Arms Spaced Every 8.5” and Protrude 8” From Uprights
  • Each Pair of Arms Can Support Up to 100 Lbs.
  • Unit Weight is 60 Lbs.

Order by Phone!
800-326-4403
Jaken


Order by Phone!
800-326-4403

For more details, call NationWide Shelving at 1-800-326-4403. Email us at Info@NationWideShelving.com

You can also check out our other products "here"

Contact Us | About Us
Copyright © 1997-2017 All Rights Reserved
