Kompakt Mobile Storage System
Material Handling Catalog
Material Handling Catalog

View All PDF Brochures
View All PDF Brochures

GSA Contracts

IPA


State of Utah Contract:
MA 1231






Kompakt Mobile Storage System

About Tennsco Kompakt Systems:

Tennsco Kompakt Systems is the leader in safety.  For over 45 years in Dickson, TN, Kompakt Systems has been manufacturing a sound, structural design that comes standard with a visible, positive, anti-movement lock.

Kompakt Mobile Storage System
Kompakt Mobile Storage System

About Kompakt Mobile Storage System:

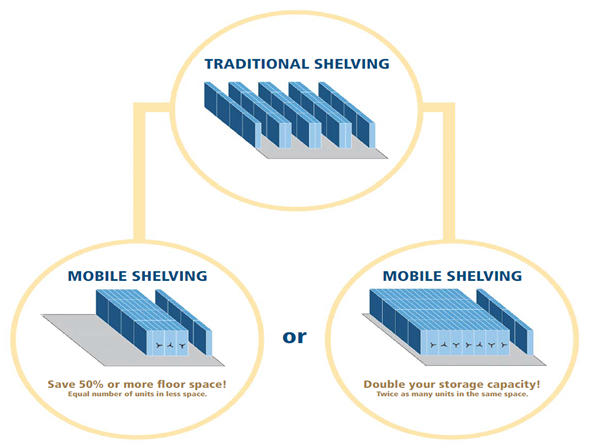

Kompakt Systems provides the widest range of movable storage available in the industry today.  Kompakt Systems can assist you with choosing the best mobile storage system to fit your exact needs.  Each year, Kompakt Systems aids thousands of companies in saving millions of dollars through their revolutionary Mobile Storage System.  With Kompakt Systems, you will get the option of doubling your storage capacity or saving up to 50% more floor space; the choice is yours.   Call NationWide Shelving today and let them convert your operations into a time and space-maximizing material management system.

Kompakt Mobile Storage System

Highest in Endurance

Kompakt Systems stands out from its competition with their innovative 1” Rail Design and 11-Gauge welded carriages, allowing their Mobile Storage System to withstand even the heaviest of loads.  In addition, the gear drive ratio is capable of moving up to 10,000 lbs. with 1 lb. of effort.

Smooth Rolling

Each of the carriage wheels are composed of 5” machined steel and are dual flanged, with a total outside diameter of 5.38”.

Unique Design

Kompakt Systems is the only mobile shelving manufacturer to offer self-supportive rail with steel shims that do not require grouting.  Typically, other manufacturers use ⅝” wide bar stock which requires grouting for additional support, but Kompakt Systems uses a high quality 1” x 1” square C-1405 steel bar stock.  Kompakt Systems also offers a center groove rail, which prevents any gaps in the floor installation.

Kompakt Mobile Storage System Kompakt Mobile Storage System Kompakt Mobile Storage System
Healthcare Storage
  • Kompakt Systems Uses Advanced 1” x 1” Square C-1045 Steel Bar Stock
  • Self-Supportive Rail with Steel Shims that do NOT Require Grouting
  • Center Groove Rail Available

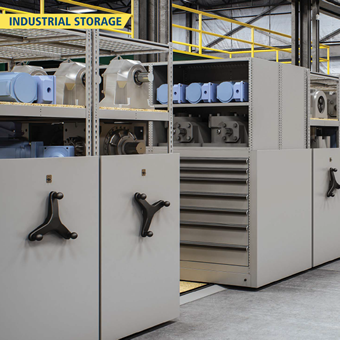

Industrial Storage
  • Carriages are 11-Gauge Steel, Fully Welded
  • 5” High “C” Channel Construction Side Frames with Top and Bottom Reinforcing Flanges
  • Wheel Frames Feature Hat Channel Design with Two Additional Vertical Flanges
  • Wheels are Designed with ¾” Solid Steel Shaft Supported by Two Self-Aligning, Well-Oiled, Pillow Block Bearing Assemblies
  • Drive Shafts are 1⅛” Tubular Steel and Run Entire Length of Carriage

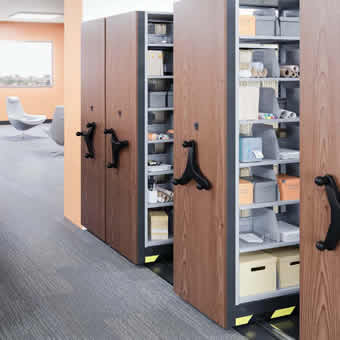

Office Storage
  • Optional Passive Mechanical Floor Level Safety System
  • Steel-Hinged Safety Bar Runs Entire Length of Carriage
  • Internal Device Interlocks with the Drive Train to Create a Positive Stop
  • No Aisle Width Restrictions Due to Mechanical Safety Sweep
Kompakt Mobile Storage System Kompakt Mobile Storage System
Kompakt Mobile Storage System

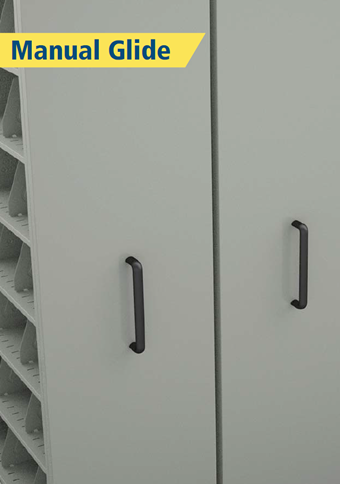

Manual Glide
  • No Gear Drives Used
  • Carriages Opened and Closed by Pulling or Pushing
  • Works with Carriages Up to 9’ in Length
  • End Panels Add Visually-Appealing Finish
Mechanical Assist

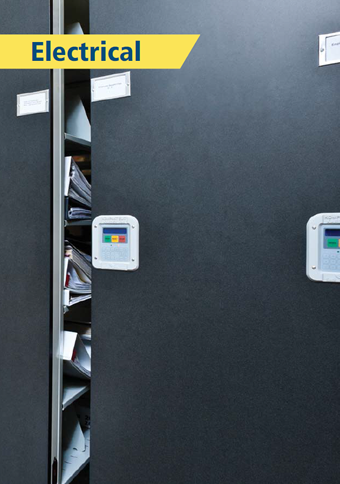

  • Carriages Moved Via Electronic Keypad, Computer, and Motor
  • No Effort Required from End User
  • Elective Infra-Red Floor Level Safety Sweep
  • High Pressure Laminate and 18-Gauge Steel End Frames Available in Half or Full Heights

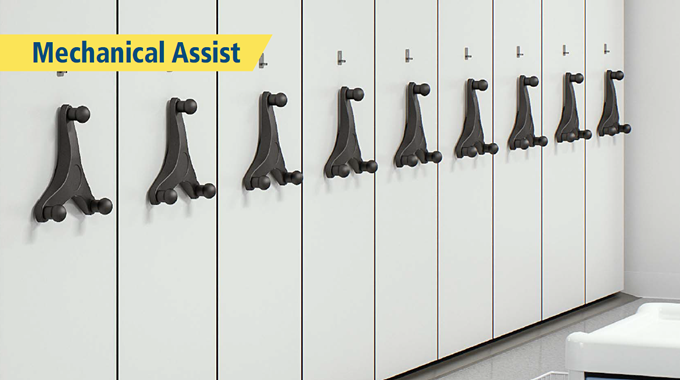

Mechanical Assist
  • Movement of Heavier Carriages Activated by Rotating Ergonomically Designed Handle
  • Choose Between Three-Prong or Single Handle
  • High Pressure Laminate and 18-Gauge Steel End Frames Available in Half or Full Heights

Order by Phone!
800-326-4403

At NationWide Shelving, we provide the highest quality products and services, and the absolute best value in our industry. Additionally, our sales and installation experts are professionals who have been trained to provide the most accurate information and the highest quality installation services in the industry.

Find out why NationWide Shelving is a leader in Pallet Rack sales!

Order by Phone!
800-326-4403

For more details, call NationWide Shelving at 1-800-326-4403. Email us at Info@NationWideShelving.com

You can also check out our other products "here"
