Borroughs Mobile Pallet Rack

Material Handling Catalog
Material Handling Catalog

View All PDF Brochures
View All PDF Brochures

GSA Contracts

IPA


State of Utah Contract:
MA 1231


Now Hiring Sales Reps

  Mobile Pallet Rack 800-326-4403
Mobile Mobile Pallet Rack
Mobile Mobile Pallet Rack
Big Mobile Pallet Rack Projects

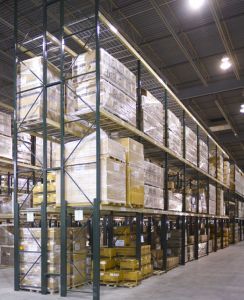

Tall Mobile Pallet Rack
Big Mobile Pallet Rack Projects Tall Mobile Pallet Rack

Interlake Mecalux Mobile Pallet Rack

Steel King Drive-in / Drive-thru Rack

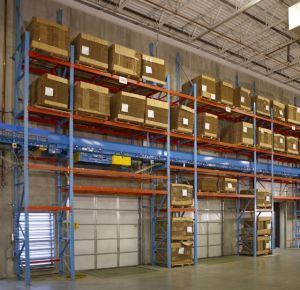

Over Dock Mobile Pallet Rack
Over Dock Mobile Pallet Rack
Mobile Pallet Rack Interlake Mecalux Mobile Pallet Rack

Ridg-U-Rak

Complete rack section moves mechanically on floor mounted rails to create access aisles. Extremely high density.

Mobile Pallet Rack by Ridg-u-rak
Mobile Storage Rack Systems
are a very high-density storage system with near total utilization of storage facility floor space. The system is comprised of 100% selective pallet racks mounted back-to-back on mobile bases that travel on tracks laid into the floor. To retrieve stored materials the racks move on the tracks, allowing an access aisle to be formed at the appropriate rack.

Mobile pallet storage racks provide maximum density with no compromise on selectivity, as there is no need to move one pallet to retrieve another. By using less space, the stored material can be located closer to the point of use for faster retrieval. An industrial storage system needs three qualities: fast and easy product access, efficient cube utilization, and high return on investment (ROI) with quick payback. Mobile rack systems are particularly effective in cold storage facilities or any application where space is at a premium. The storage carriages are driven by integral electric motors and can be moved individually or as a section, permitting access to any pallet at any time. Features & Benefits: · One "movable" aisle to reach every shelf facing · More material can be stored in the same area · Less space is needed for current storage requirements · Limit the need for new construction · Faster access and improved workflow Applications: · Limited storage cube · Freezer or cold area storage · Storage area expansion is not cost-effective





You can find Mobile Pallet Rack for warehouse, and Industrial Storage Applications from NationWide Shelving. We have what you need. Our business is to weigh your storage and retrieval goals, and deliver Mobile Pallet Rack System to compliment them installed by professionals.

Mobile Pallet Rack Applications
800-326-4403

Mobile Pallet Rack is designed to provide highly efficient storage and retrieval of countless parts, pallets, inventory, distribution center products, automotive parts and inventory, assembly parts and inventory and most types of storage needs. Even large retailers have found Mobile Pallet Rack a good looking and inexpensive way to display stock for customer purchase. From a few beams to large installations connected to complex automated storage and delivery systems we can help you determine what you need. Our highly trained designers will insure you get the right rack and the most possible storage. From simple to complex solutions for all forms of shelving, including sophisticated multi-level and modular applications.

Unparalleled Experience 800-326-4403
With decades of hands on design, installation, and manufacturing experience, we have the expertise to help you from start to finish. We have installed thousands of Industrial shelving systems all over the nation. We understand the storage challenges you face, and have designers ready to create and present innovative solutions to you.

Pallet Rack Manufacturers

Only a few manufacturers produce and support mobile pallet rack. Please phone us at 800-326-4403 for further information. Penco,Interlake Mobile Pallet Rack, Frazier, Bulldog Rack, Durham,Nashville Wire, Jaken, Mecalux, Ohio Rack, Rid-u-Rack, Steelking, Tier-Rack, Artco (Tube) Mobile Pallet Rack,Buckley Mobile Pallet Rack, Burtman, Structural Mobile Pallet Rack, 'Altrui Mobile Pallet Rack, Dexion Mobile Pallet Rack, EMI Mobile Pallet Rack, Frick Gallagher Mobile Pallet Rack, Husky Crashguard Mobile Pallet Rack, Inca Mobile Pallet Rack, Lok-Rack Mobile Pallet Rack, Palmer Schile Mobile Pallet Rack, Sammons/Bloom Mobile Pallet Rack, Unarco II Mobile Pallet Rack, Keystone Style Mobile Pallet Rack, T-Bolt (Unarco) Mobile Pallet Rack, Speedrack Mobile Pallet Rack, Paltier Mobile Pallet Rack, Structural Mobile Pallet Rack, Sturdi-Bilt Mobile Pallet Rack, Ridg-U-Rack Mobile Pallet Rack, Webb/Slide-N-Lock, Hiline Mobile Pallet Rack, Penco Mobile Pallet Rack and other products make one full line! need a brand you dont see listed please phone in to see if we carry it. 800-326-4403.

Borroughs HD10 Mobile Pallet Rack Storage System

Double Your Warehouse
Storage Capacity

The Aisle-Saver HD10 Mobile Pallet Rack Storage System is a mechanical assist compact warehouse storage system designed to provide a cost-effective alternative to traditional pallet racking. Accessible by hand or by fork truck, the Aisle-Saver HD10 Mobile Pallet Rack Storage System makes static aisles dynamic. Capable of compressing multiple rows of pallet racking and featuring a 10,000lb load capacity per rack, Aisle-Saver HD10 is able to effectively double warehouse storage capacities.

The Aisle-Saver HD10 eliminates the need for costly expansions or the loss of production space due to increased storage demands.

The Aisle-Saver HD10 Mobile Pallet Rack Storage System is a mechanical assist compact warehouse storage system designed to provide a cost- effective alternative to traditional pallet racking. Accessible by hand or by fork truck, the Aisle-Saver HD10 Mobile Pallet Rack Storage System makes static aisles dynamic. Capable of compressing multiple rows of pallet racking and featuring a 10,000lb load capacity per rack, Aisle-Saver HD10 is able to effectively double warehouse storage capacities. Loaded with performance enhancing features, the Aisle-Saver HD10 Mobile Pallet Rack Storage System can be configured to meet the precise storage and material handling needs of your warehouse operations. System sizes and carriages are designed to meet your facility's unique requirements.

System Features
The Aisle-Saver HD10 Mobile Pallet Rack Storage System features Aisle-Saver's proven Mechanical Assist system for easy and reliable performance and durability.




A variety of powder coat paint color finishes are available to complement any facility
Ergonomic handle design and powerful 6:1 drive ratios are capable of moving 6,000
lbs with just 1lb of pressure
Key-operated lock options for added security
Safety lock for operator protection

Aisle-Saver HD10 mobile warehouse pallet racking

Carriage & Carriage Drive Construction
Aisle-Saver HD10 carriages, made from rugged 10 gauge steel, are the strongest and best built in the industry. Drive shafts run down the carriage center, powering wheels on both sides of the carriage.

Pedestal feature front drive panel
3 ½ diameter dual-flanged wheels
Carriage Lengths up to 40'
Maximum loads are rated for up to 10,000 lbs per section of rack
All wheels and axles feature sealed, lifetime-lubricated bearings
Easy access for adjustments or service without unloading stored materials
1 hollow tube drive shaft for increased strength
System can accept most manufacturers standard racking
Carriages can be configured to meet practically any need with depths of 30, 36, 42
& 48


Belt-Drive Design
The Aisle-Saver HD10 Mobile Pallet Rack Storage System features a unique belt-drive system that reduces noise and friction, increasing longevity and eliminating the maintenance and cleaning commonly associated with traditional chain-drive systems.


Mobile Pallet Rack


Eliminates friction and
wear associated with
chain drives
Equipped with adjustable
tensioning device
Clean, quiet and smooth
operation
Low maintenance
