Pipp Mobile Storage Systems Mobile Carriage Systems

Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage

About Pipp Mobile Storage Systems:

Pipp mobile storage has been in business since 1981. Pipp's mission is to be able to design customer specific storage needs. They solve storage problems in many different work fields and always provide the best service and products to their customers. Their products are 100% customizable and they can build almost anything to match what you may need.

Mobile Carriage Systems:

Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage
Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage

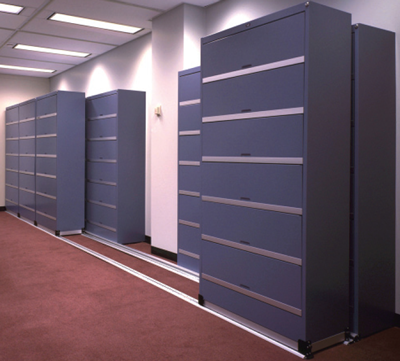

Lateral Manual Carriage:

Lateral Manual Mobile Storage System’s are great for office/filing, medical records and supply storage. The system has 1 row (Bi-File) or 2 rows (Tri-File) of mobile units installed in the front and a  row of static shelving behind it. The front units can be easily pushed on the track to access the rear row. About half of the unit will be accessible at one time. The units weight capacity is 3,000 lbs. per carriage.

Shelving Options:

Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage
Rivet Style Shelving Four-Post Style Shelving File Drawers

Specifications:

  • The structure is an assembly of 2” high angles (for length) and channels (for depth)
  • "V" grove track system available which is ADA compliant.
  • Storage unit dimensions plus 3/8” equal carriage dimensions
  • “V’ Groove carriage height from floor to top of angle (shelving mounting surface) is 2-3/4”
  • All lateral mobile carriages require Anti-Tip
  • Wheels are permanently greased and sealed, the ball bearing is 1.58” diameter
  • Silver aluminum with black trim is the standard color
  • Carriage frames are made of heat-treated aluminum
  • Weight capacity: 3,000 lbs per carriage
  • 12 feet is the maximum length of any carriage

Order by Phone!
800-326-4403


Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage
Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage

Standard Manual Carriage:

Commonly used for lightweight applications such as:

  • Retail (Shoes, Apparel and Handbags)
  • Lightweight Open Shelf Filling
  • Food Storage
  • Linen Storage
  • General Supply Storage

Specifications:

  • The structure is an assembly of 2” high angles (for length) and channels (for depth)
  • “V” Groove Track System and Flat Track System carriages are available
  • Storage unit dimensions plus 3/8” equal carriage dimensions  (1/8” each side + 1/8”)
  • “V’ Groove carriage height from floor to top of angle (shelving mounting surface) is 2-3/4” for the “V’ Groove carriage and 3” for the Flat Track carriage.
  • Flat Track Wheels are 1045 steel flanged & 2 inches in diameter. Wheels run on a low profile flat track that is
  • “V” Groove Wheels are permanently greased and sealed, the ball bearing is 1.58” diameter
  • Carriage frame is heat-treated aluminum.5/8th of inch, 3/8 inches from the floor.
  • 12 feet is the maximum length of any carriage
  • Weight capacity: 3,000 lbs per carriage.  (This is the max load a person can move, not the capacity of the carriage.)
  • Silver aluminum with black trim is the standard color (carriage corners & center plates).

Order by Phone!
800-326-4403


Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage
Pipp Mobile Storage Systems Mobile Carriage Systems, Lateral Manual Carriage, Standard Manual Carriage, Heavy Duty Manual Carriage

Heavy Duty Manual Carriage:

Heavy Duty Manual Carriage is primarily used for storing:

  • Furnishing
  • Small Appliances & Electronics
  • Densely Stored Supplies
  • Large Record & Filling
  • Archival Storage
  • Apparel & Shoe Storage

Specifications:

  • The structure is an assembly of 3-3/8” x 2” aluminum angles (for length) and 3-7/32” x 1-7/8” aluminum channels (for depth).
  • Flat Track System is available
  • Storage unit dimensions plus 3/8” equal carriage dimensions (1/8” each side + 1/8”)
  • The carriage and track height: 4-5/16”.
  • Wheels are 3-1/2” diameter, 1018 dual flanged carbon steel and run a 3/4” wide steel insert on the 1/2” high flat track.
  • Carriage frame is heat-treated aluminum.
  • Wheels are 1018 double flanged carbon steel & 3-1/2 inches in diameter. Wheels run a high flat track and a 3/4 inch wide steel insert.
  • 12 feet is the suggested maximum length of any carriage
  • Weight capacity: 3,000 lbs per carriage. (This is the typical max load a person can move, the carriage can hold much more)
  • Silver aluminum with black trim is the standard color (carriage corners & center plates).

Order by Phone!
800-326-4403
