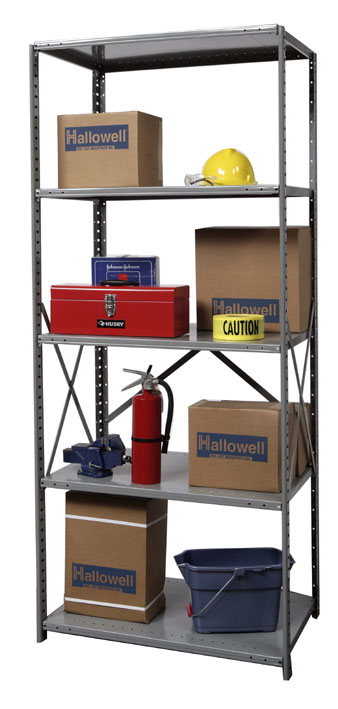

Rivet Shelving - COMPLETE 5 SHELF UNITS
- Shelves adjust on 1-1/2" centers.
- No nuts, bolts or shelf clips required for assembly.
- Available height's ranging from 3' to 12'.
200A heavy duty low profile shelving is constructed using industrial strength steel and features easy to assemble Rivet design. Double rivet beams at top and bottom of unit form a rigid structure without the use of troublesome crossbars. Units are accessible from all four sides. Steel color: Powder coated gray. FOB Shipping Point.
|
200B SHELVING - COMPLETE 3 SHELF UNITS
- Shelves adjust on 1-1/2" centers.
- No nuts, bolts or shelf clips required for assembly.
- Available height's ranging from 3' to 12'.
200B Bulk storage shelving offers a low cost way to store heavy and/or bulky items. Rivet design provides for easy assembly without nuts, bolts or shelf clips. No cross braces are necessary which makes these units accessible from all four sides. Available in a variety of sizes and capacities to meet your specific requirements. Steel color: Powder coated gray. FOB Shipping Point.
|
BOXER™ BOX Rivet SHELVING
- Superior box construction for greater strength and supporting power.
- Clip-Type assembly for fast, easy set-up.
- Additional steel surcharge may apply.
Boxer Shelving delivers more support for less cost than any other shelving in the industry. Features full welded box formation in front and back of shelf and shall have formed channels on both ends. Corners are fully lapped for extra strength. Available in 22 or 20 ga. shelves. Rugged and sturdy 14 ga. uprights allow for 1-1/2" shelf adjustment. Closed units feature 24 ga. back and end panels. Includes sway braces. Gray, baked-on enamel finish. FOB Shipping Point.
|

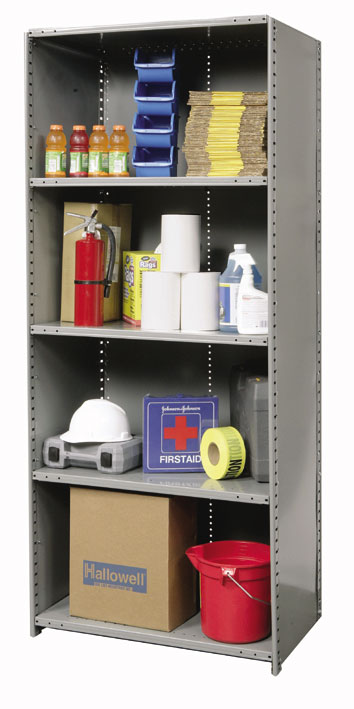

HALLOWELL RIVETWELL™ SHELVING WITH SINGLE RIVET BEAM
- Features easy and free access from all sides.
- Designed to maximize storage space and minimize installation and set-up time.
An economical storage system that provides exceptional value and versatility. accommodating applications from light to heavy duty. Rivetwell shelving is easy to assemble and expandable as needs change. Shelf levels are adjustable on 1-1/2" centers. No cross bracing allows access from all sides. Common T-posts between adjacent units. Attractive #729 Parchment powder coat finish. Decking sold separately. FOB Shipping Point.
Single Rivet Shelving
Single rivet shelving units are built using double rivet beams at top and bottom levels giving units a rigid frame and singe rivet beams on intermediate levels maximizing vertical storage openings. FOB Shipping Point.
Double Rivet Shelving
Similar to single rivet shelving, double rivet shelving uses double rivet beams at all levels providing increased rigidity and includes center supports for maximum shelf capacity. FOB Shipping Point.
Starter Units consist of 4 standard angle posts, 4 left-to-right standard double rivet angle beams, 4 front-to-back standard double rivet angle beams, 2 left-to-right standard rivet beams per intermediate level and 2 front-to-back standard single rivet beams at 1 intermediate level only (30" and 36" deep units include 2 front-to-back single rivet beams at each intermediate levels).
Adder Units consist of 2 standard T-posts, 4 left-to-right standard double rivet angle beams, 2 front-to-back standard double rivet angle beams, 2 left-to-right standard single rivet beams per intermediate level and 1 front-to-back standard single rivet beam at 1 intermediate level only.  |
|
|
|
 |
|
|
|
|
COMPLETE GALVANIZED DECK WITH CORRUGATED STEEL DECKING
- For use with Galvanized Storage Racks.
- Excellent choice for any application.
Heavy duty G-40 galvanized coating on structural grade 33 steel provides 100x the wear resistance of painted racks. The min spangle finish reflects light to maximize the lighting in storage areas. Galvanized racks are an excellent solution for harsh environments and for food storage where food is not in direct contact with the racks. Patented weld free Scotch Rack design makes galvanizing an economical choice for any application. FOB Shipping Point.
Complete Galvanize Deck With Corrugate Steel Decking
Fireproof, durable corrugated galvanized steel panels fit in beam step recess for easy sliding storage.
|
|
HALLOWELL RIVETWELL™ SHELVING WITH DOUBLE RIVET BEAM
- Designed for heavier storage items.
- Common T-Posts between units.
An economical storage system that provides exceptional value and versatility. accommodating applications from light to heavy duty. Rivetwell shelving is easy to assemble and expandable as needs change. Shelf levels are adjustable on 1-1/2" centers. No cross bracing allows access from all sides. Common T-posts between adjacent units. Attractive #729 Parchment powder coat finish. Decking sold separately. FOB Shipping Point.
Single Rivet Shelving
Single rivet shelving units are built using double rivet beams at top and bottom levels giving units a rigid frame and singe rivet beams on intermediate levels maximizing vertical storage openings. FOB Shipping Point.
Double Rivet Shelving
Similar to single rivet shelving, double rivet shelving uses double rivet beams at all levels providing increased rigidity and includes center supports for maximum shelf capacity. FOB Shipping Point.
Starter Units consist of 4 standard angle posts, 4 left-to-right standard double rivet angle beams, 4 front-to-back standard double rivet angle beams, 2 left-to-right standard rivet beams per intermediate level and 2 front-to-back standard single rivet beams at 1 intermediate level only (30" and 36" deep units include 2 front-to-back single rivet beams at each intermediate levels).
Adder Units consist of 2 standard T-posts, 4 left-to-right standard double rivet angle beams, 2 front-to-back standard double rivet angle beams, 2 left-to-right standard single rivet beams per intermediate level and 1 front-to-back standard single rivet beam at 1 intermediate level only.
|
HEAVY DUTY 36" WIDE INDUSTRIAL SHELVING
- Rugged construction features stand up to abuse in high-activity areas.
- Shelf clips fit quickly into post to lock shelves firmly in place without tools.
- Meets varying capacity requirements by assembling mixed or matched sections of the same depth and height.
Pre-engineered sections 36"W. x 84"H. and features lapped and welded shelf corners for additional strength and durability. Upright posts are roll formed "T" members that allow shelves to adjust on 1-1/2" centers. FOB Shipping Point.
Box "W" Shelves...found on 22 ga. Medium Duty and 20 ga. Heavy Duty shelving. 22 ga. features a full 600 lb. capacity per shelf and 20 ga. features a full 800 lb. capacity per shelf.
Shelf Capacities are based on evenly distributed loads.
 |
|
|
|
|
 |
| Rivet HEAVY DUTY RIVET RACK SHELVING WITH 3 SHELVES |
HEAVY-DUTY WELDED STEEL Rivet SHELVING |
INDUSTRIAL Rivet SHELVING |
INDUSTRIAL Rivet SHELVING 48" WIDE |
HEAVY DUTY RIVET RACK WITH 3 SHELVES
- Ideal for light to medium weight loads.
- Beams quickly snap into place on 2" centers into keyhole slots in posts.
Rugged heavy duty beams use a double rivet design for added strength and rigidity. Channel type deck supports attach with just one bolt to bottom of beam flange and provide superior protection from deck sag. All components are formed from 16 ga. steel with a tough Gray baked enamel finish. Decks are made from furniture grade MDF which provides a smooth surface for sliding material on and off. FOB Shipping Point.
Double Rivet Connection on all perimeter supports for greater strength and rigidity. Snap in assembly.
Channel Type Deck Support attaches with just one bolt to bottom of beam flange and provides superior protection from deck sag.
|
HEAVY-DUTY WELDED STEEL SHELVING
Reinforced 12 gauge steel shelves have a 2,000 lb. capacity per shelf. 2" x 2" x 3/16" corner angles have footpads with anchor. 72" overall height with 3-1/2" bottom shelf underclearance. Ships set up and ready for immediate use. FOB Shipping Point.
 |
INDUSTRIAL Rivet SHELVING
- Designed for fast, easy "Rivet" assembly.
- Features access from all 4 sides without any cross bracing.
Industrial Rivet Shelving provides strong supporting power with time-saving assembly. Steel shelves just drop into place - complete with 4 shelves per unit. Components snap together without any nuts, bolts or clips. Post and beams are 14 ga. with Gray polyester finish. Beams adjust on 1.5" centers. All units 72"H. so top shelf is accessible. FOB Shipping Point.
|
INDUSTRIAL Rivet SHELVING 48" WIDE
- Yields more shelf space for long, unwieldy items.
- Features a full 600 lb. capacity per shelf.
- Integrates with comparable depth 36" wide shelving.
Rugged construction features stand up to abuse in high-activity areas. Shelf clips fit quickly into post to lock shelves firmly in place without tools. Pre-engineered sections 48"W. x 84"H. and features lapped and welded shelf corners for additional strength and durability. Upright posts are roll formed "T" members that allow shelves to adjust on 1-1/2" centers. Box "W" Shelves...20 ga. shelving features a full 800 lb. capacity per shelf. Same rugged and durable features as the 36" wide shelving, but yields more shelf space for long, unwieldy items and offers more flexibility for storing packaged stock. FOB Shipping Point.
|
|
 |
|
|
| KLIP-IT™ INDUSTRIAL Rivet STEEL SHELVING - LIGHT DUTY |
LIGHT DUTY RIVET RACK WITH 5 SHELVES |
|
|
- Quality shelving for heavy-duty storage solutions.
- Clip-Type assembly saves time.
- Additional steel surcharge may apply.
These rugged and dependable shelving units deliver real supporting strength for all types of storage uses. Offset angle post support heavy loads and accommodate compression clips. Sturdy formed shelf is made from cold rolled steel and has "Triple Bends" on all four sides for incomparable strength. Features a rust resistant phosphatized cleaning for better paint adhesion and durability. Baked-on gray enamel finish. Compression clip rapidly snaps into post which allows for independent adjustment of shelves – normal shelf loading increases the locking action. Closed units feature back and end panels. Starter units include 2 – sway braces; Add-on units include 1 sway brace. FOB Shipping Point.
|
LIGHT DUTY RivetRIVET RACK WITH 5 SHELVES
- Ideal for light to medium weight loads.
- Beams quickly snap into place on 2" centers into keyhole slots in posts.
Light duty beams unique design provides a rounded steel edge for sliding material on and off while protecting the MDF decking. Channel type deck supports snap in with no bolts. Angle posts hold MDF decking in place to provide the most uninterrupted usable storage area. Tie units together with post tie plates for increased strength and uniform spacing at less cost than tee posts. FOB Shipping Point.
Channel Type Deck Support attaches with no bolts. Provides superior support for decking than front & back perimeter support.
Light Duty Beams Hold 675 lbs. and feaure a rounded steel edge for decking protection and ease of material handling.
|
|
|
