Spectrum Teardrop Pallet Rack
Material Handling Catalog
Material Handling Catalog

View All PDF Brochures
View All PDF Brochures

GSA Contracts

IPA


State of Utah Contract:
MA 1231


Now Hiring Sales Reps

Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack Spectrum Teardrop Pallet Rack
Spectrum Teardrop Pallet Rack Spectrum Teardrop Pallet Rack

About Spectrum Spectrum Teardrop Pallet Rack

For over 10 years, Spectrum has been manufacturing & improving products specifically for the warehouse industry. We have a wide range of warehouse storage products in sizes to fit nearly every application for secure storage of your products. Offering the fastest delivery on the highest quality products in the industry.

Download PDF Brochure
Download PDF Brochure

Tested, Reliable, and Cost-Effective

Spectrum material handling storage products are reviewed and tested based on ANSI, MHIA, and RMI guidelines ensuring the most reliable, cost-effective solution, even under stringent seismic and code applications. Preliminary calculations are also available at no additional charge.

Teardrop style easily integrates with other pallet rack systems
Spectrum products were designed to easily integrate with other leading manufacturers.

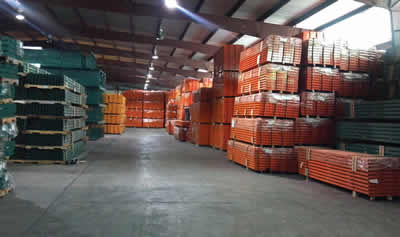

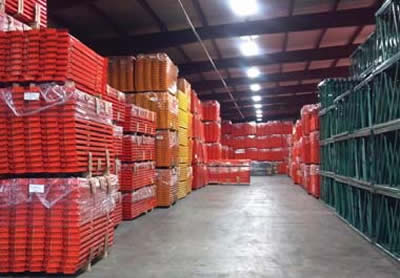

Quick Ship Pallet Racking

All Spectrum products always in stock and ready to ship. Easy to install with fully assembled frames from multiple locations.

Upright Frames

  • Sizes 36”, 42”, 48” Depth; 96” to 300” Height
  • 3”x4”, 5”x8” and 8”x8” baseplates available
  • Teardrop style in powder-coat green
  • Zinc plated baseplates
  • All columns 3” x 3”
  • Price includes assembly

Load Beams

  • Teardrop Step Beams
  • Sizes 48”, 96”, 108”, 120”, 144”
  • Capacities from 2,500 lbs. to 10,500 lbs.
  • Powder-coat orange
  • 3-Pin and 4-Pin beam Connectors

Pallet Rack Accessories

  • 6”, 8”, 12”, 16”, 18” and universal row spacers
  • 36”, 42”, 44” and 48” pallet supports
  • 12”, 16”, and 24” column protectors Wedge Anchor Bolts

Meet the highest industry standards for seismic and code applications
Designed for highest compliance for states requiring seismic standards

Shelving, Cantilever & Decking

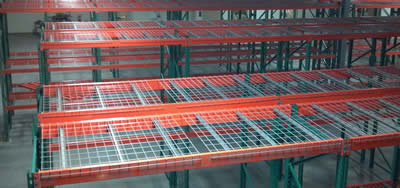

Wire Mesh Decking

  • All standard sizes for Step and Flared Channel
  • Capacities based on evenly distributed loads
  • Three (3) Channels, 6 gauge wire, 2” x 4” wire pattern, wire diameter 5 mm
  • All decks come standard with a 1.5” waterfall for easy install
  • Powder coat gray finish

Structural Cantilever Rack

  • All structural I-Beam design
  • Components powder coat blue finish
  • 12’, 16’ and 20’ columns
  • 36” and 48” bases
  • 36” and 48” arms
  • 4, 5, 6 and 8 ft. brace kits

Boltless Rivet Shelving

  • Standard and HD angle post, HD tee post
  • Widespan shelving with center supports
  • Standard Beam, Z Beam and Low Profile
  • Particle board or wire decking
  • Color gray

Also Available

  • Pallet Jacks
  • Guard Rail
  • Wide Span Shelving
  • Clip Shelving Accessories

At NationWide Shelving, we provide the highest quality products and services, and the absolute best value in our industry. Additionally, our sales and installation experts are professionals who have been trained to provide the most accurate information and the highest quality installation services in the industry.

Find out why NationWide Shelving is a leader in Pallet Rack sales!

Order by Phone!
800-326-4403

For more details, call NationWide Shelving at 800-326-4403. Email us at Info@NationWideShelving.com

You can also check out our other products "here"
