Utah Teardrop Pallet Rack
Utah Teardrop Pallet Rack
Utah Teardrop Pallet Rack
Utah Teardrop Pallet Rack

Utah Teardrop Pallet Rack

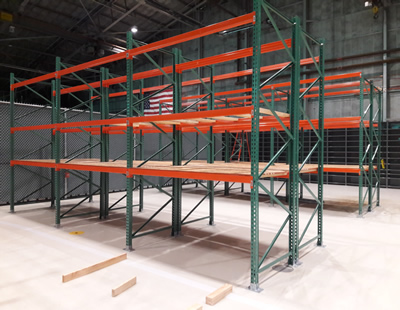

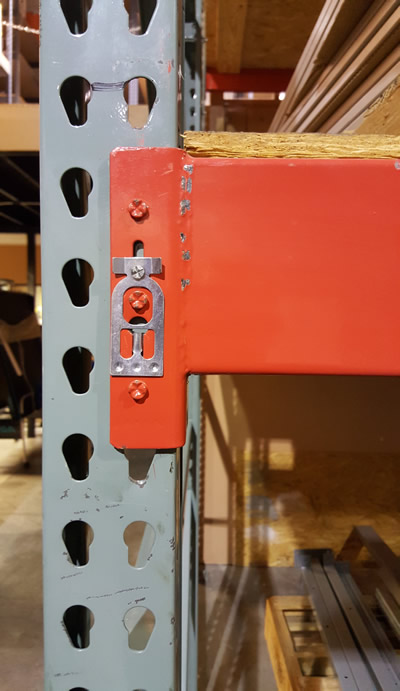

Teardrop pallet rack is carefully engineered to provide highly efficient storage of palletized items available in Utah. These particular pallet rack uprights have upside down Teardrop shaped holes cut out of the original metal framing. This allows for a better assembly and construction of the pallet rack system. Pallet rack beams can connect with a stronger hold, since the corresponding bolts can be placed into the top part of the Teardrop, then can slide down into place without having any mobility side to side.

Download PDF Brochure
Download PDF Brochure

Additional Options of Teardrop Pallet Rack

  • Wire Mesh Decking is an open wire construction that reduces dust build up and allows light and air circulation. It has the ability to increase fire sprinkler effectiveness and improve visibility for picking.
  • Steel Safety Supports can be used as front to back members to support pallets or wood decking. It can be used in conjunction with wood decking to provide additional support for hand stacking applications.
  • Frame Guards can help you to avoid damage to valuable rack columns by withstanding impacts with its solid steel guard and heavy duty construction. Our frame guards come in a highly visible yellow color with 4 mounting holes.
  • Bay Dividers help you organize material vertically with dividers. They’re designed to fit over Step Load Beams and are easy to install. The pre-punched holes in our bay dividers give you the ability to permanently mount them.
  • Label Holders are self-adhesive or magnetic to allow simple label relocation. Designed extra-large for Pallet rack application, they also include Ink Jet/Laser compatible white inserts with instructions.

Various dimensions, specs, capacities, and colors are available for each of our accessories. Pallet racks can save you time and space as well as improve productivity making your day easier.

Teardrop Pallet Rack Applications in Utah:

  • Warehouse and Manufacturing
  • Pallets
  • Tires
  • Freight Companies
  • Distribution
  • Government
  • Police and Evidence Storage
  • Storage Facility
  • Fulfillment

Teardrop Pallet Rack Uses

Teardrop pallet rack is a form of storage that uses heavy duty steel beams to hold product or pallets. There are many kinds of pallet rack but this pallet rack is the most common because it allows the maximum number of SKU facings and is cost efficient. Pallet rack is not just limited to storing pallets; it can store furniture, carpets, boxes, and bulk.

Pallet rack is a form of storage that uses heavy duty steel beams to hold product or pallets. There are many kinds of industrial pallet racking but it is generally used to store palletized loads in horizontal rows with multiple levels. Industrial pallet rack is not just limited to pallets; it can store furniture, carpets, boxes, and bulk.

Trained Design Experts in Utah

Teardrop pallet rack for industrial storage applications in Utah can save you time and space. Interlake Pallet Rack, Erectomatic,  H-Post, Wide Span System, Penco RivetRite, Clipper and other products make one full line!

First In, First Out (FIFO) or First In, Last Out (LIFO)

The two options are LIFO and FIFO. LIFO means first in first out and FIFO mean first in last out. Different systems of pallet racks include: drive-in, drive-thru, flow, and push-back.

Drive-in pallet racks load and retrieve from the same side, creating last-in-first-out (LIFO) inventory organization.

Drive-thru pallet rack systems load from one side and unload from the other side to create first-in-first-out (FIFO) inventory retrieval with forklifts.

Pallet flow rack systems use gravity to move pallets on smooth rolling metal skate wheels on sloped rails.

Push-back pallet rack uses a dynamic rail system, in which deeper pallet loads automatically advance to the aisle, when the front pallet load is retrieved. Push-back pallet rack systems offer similar storage density as drive-in pallet rack, while improving selectivity and accessibility.

Quick and Easy Design, Customize or Reconfigure

The clip together design of our teardrop pallet rack make customization and expansions quick & easy. Other types of pallet rack require you to replace the entire upright, but our design keeps things simple and less costly by letting you customize each part.

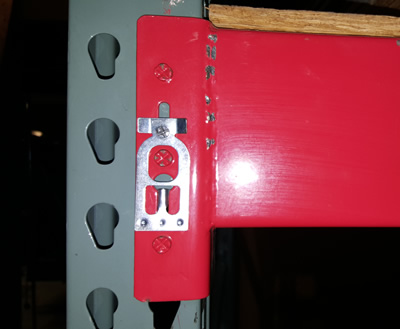

The beams of our teardrop pallet racks feature safety clips which are simple to install or reconfigure. In the unlikely event, our Teardrop pallet rack allow for easy replacement in case of damage, saving you time and hassle. Pallet rack is designed to be used with forklifts or bulk hand stacking.

Teardrop Pallet Rack is Interchangeable with Systems

Interchangeable with the following pallet rack manufacturers:

  • Interlake (Original Style)
  • Space Rack
  • USP
  • Lodi Metal-Tech
  • Steel King
  • Husky
  • Most Green and Orange (Sometimes Looks Red)
