Wire Decking for Pallet Racks

THE CLIENT: HappiJac, Kaysville, Utah 84037

HappiJac is a manufacturing company that has been producing camper tie downs, bed lifts, jacks, slide-outs, and toolboxes for more than 50 years. HappiJac is devoted to providing their customers with the best service and products. They do extensive research and testing to create the best products for the RV Industry.

THE SITUATION:

HappiJac needed a deck for their pallet racks so they can store many RV products of various sizes. They wanted their decking to have a high weight capacity and something that is easy to install and maintain.

THE SOLUTION:

NationWide Shelving provided HappiJac with customized wire decking for their pallet racks. The wire decking has high weight capacities, is easy to install as well as maintain. It was a perfect fit!

FAB || ROI

The Feature: The wire decks have a high weight capacity allowing HappiJac to store many products at once.

The Advantage: HappiJac can quickly install and maintain the wire decks without taking much time, leaving more time for other tasks.

The Benefit: The wire decking allows HappiJac to store tie downs, jacks, toolboxes and more, without needing pallets.

Return on Investment: HappiJac can install the wire decking where it’s needed and move it if needs change. There is no need to replace or buy new decking.

ABOUT THE PRODUCT:

Wire Decking is something that can be added to any industrial shelving unit. They are used on the levels to provide a deck for items to be stored. Using wire decking can increase weight capacity. Wire decking also reduces dirt build up and increases air circulation. All wire decking have steel support channels welded to the bottom of the decks for weight capacity. Wire decking can be customized to fit your needs.

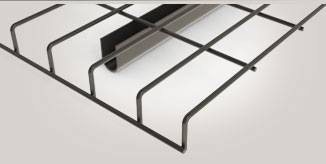

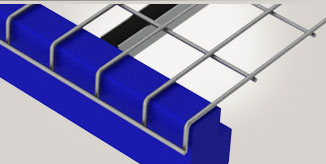

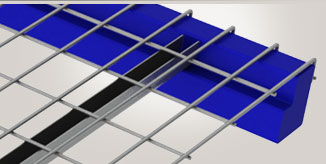

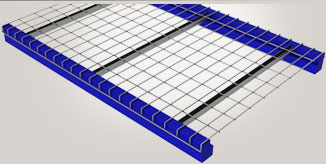

Wire Decking has 4 different configurations for different uses: standard step, inverted flange, flush flat, and flush waterfall. Standard step goes over the front and back beams of the shelving unit. Inverted flange goes on the same at standard step but the steel support channels have a flange that is placed on the beams for added support. Flush flat lays on the inside of the beams and don’t show. Flush waterfall is also on the inside but the ends of the deck’s wires are turned down and help hold the deck on.

Wire decking is fully customizable and can be made to fit almost any shelving unit. Some sizes available include 24” x 46”, 36” x 46”, 42” x 46”, 44” x 52”, and 48” x 52”. Grid patterns most decks use are 2” x 4”, 2.5” x 4” and 2.5” x 4.5”. Tighter grid patterns (1” x 4” and 1” x 6”) for hand stack applications are available as well. The support channels welded onto the decking determine the weight capacity. 3 support channels can be used to get a capacity of 2,500 lbs. The more support channels used, the higher the weight capacity. There are also different decks for different purposes. Super light duty decks are for low capacities, and super heavy decks are for capacities over 2,500 lbs. Outdoor deck is hot-dip galvanized or zinc-plated for weather resistance. Anchored decks are also available. These decks can be secured to the beam to prevent deck movement and stop beam separation. All decks use 5 gauge wire, have a powder coat finish, and meet or exceed the ANSI MH-26.2 guidelines.

Wire decking is used on the levels of industrial shelving. They can increase your shelving unit’s weight capacity and are very easy to install as well as maintain. You can get wire decking customized to fit your shelving unit and your needs. NationWide Shelving can help you pick the right wire decking for the items you plan to store.

At NationWide Shelving, we provide the highest quality products and services, and the absolute best value in our industry. Additionally, our sales and installation experts are professionals who have been trained to provide the most accurate information and the highest quality installation services in the industry.
