Bedlifts is a cost effective hospital bed storage system designed to store hospital beds off of the floor and stack them securely in a vertical arrangement, which not only saves valuable floor space but removes potential fire hazards from hospital corridor.

This hospital bed storage rack will increase the hospitals maintenance departments’ capacity, organization, and product flow reducing down time, which increases the number of beds available for patient use at any given moment. Additionally, by removing unused ‘hallway beds’ from the corridors, hospitals will meet JCAHO standards for the storage of hospital beds and not risk further fines or worst case, the loss of accreditation.

Vidir Machine is a leading manufacturer and worldwide supplier of automated storage and retrieval carousels.

Download PDF Brochure

The highly versatile line of products offers industry solutions for:

• Construction
• Retail
• Medical
• Warehouse
• Government
• Automotive
• Printing and manufacturing.

Vertical Carousels take advantage of unused overhead space to save space, increase productivity, and improve workplace safety. Automated storage and retrieval carousels can be found worldwide in over 30 different countries.
Features:

• Safe handling
• Easy Access
• Maximum Storage
• Fast Retrieval
• Small Footprint


The Bedlift is a hospital bed storage system which can accommodate hospitals auxiliary beds, beds in maintenance, and provide secure storage zones with a closer proximity to patient areas.

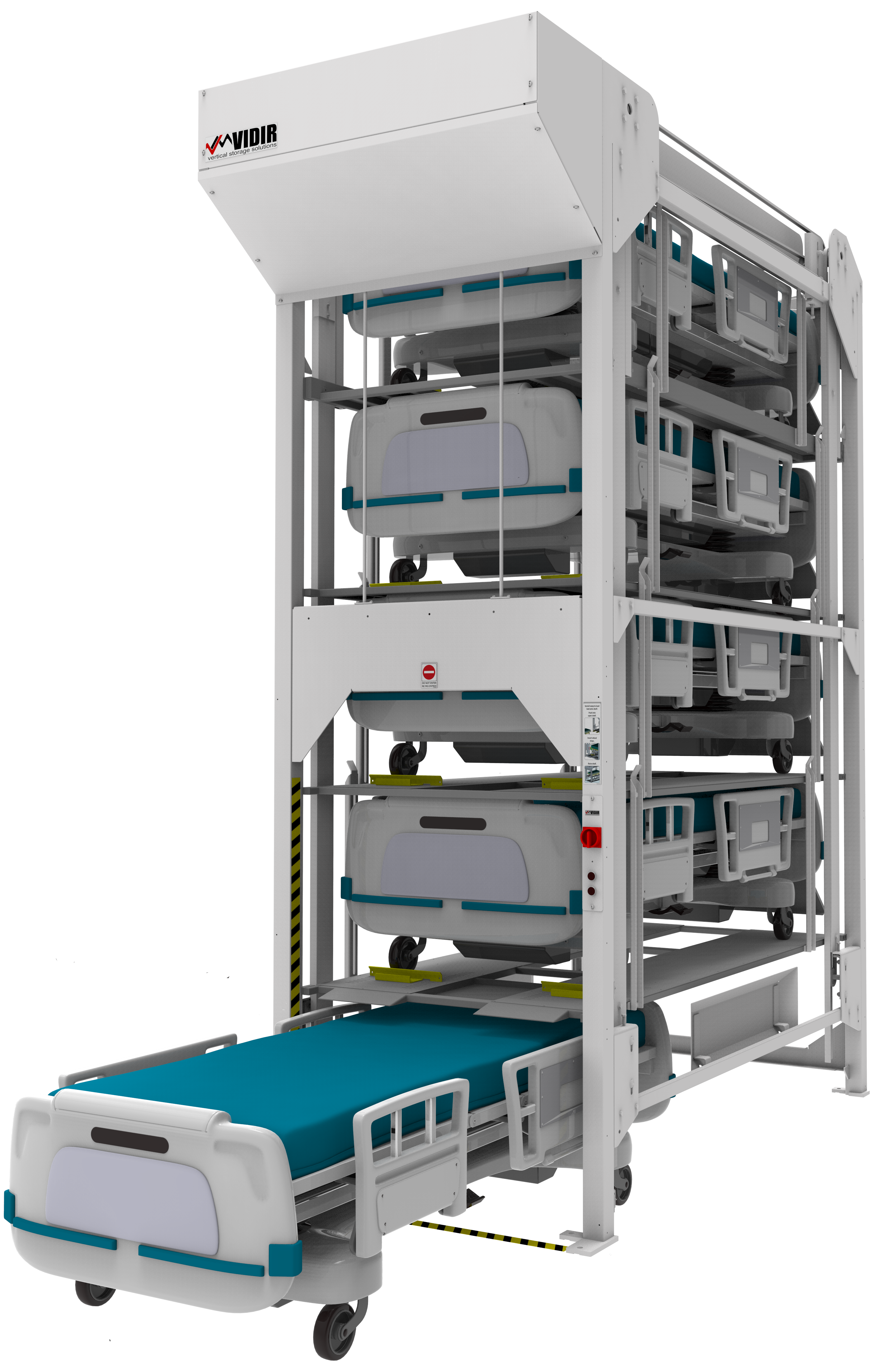

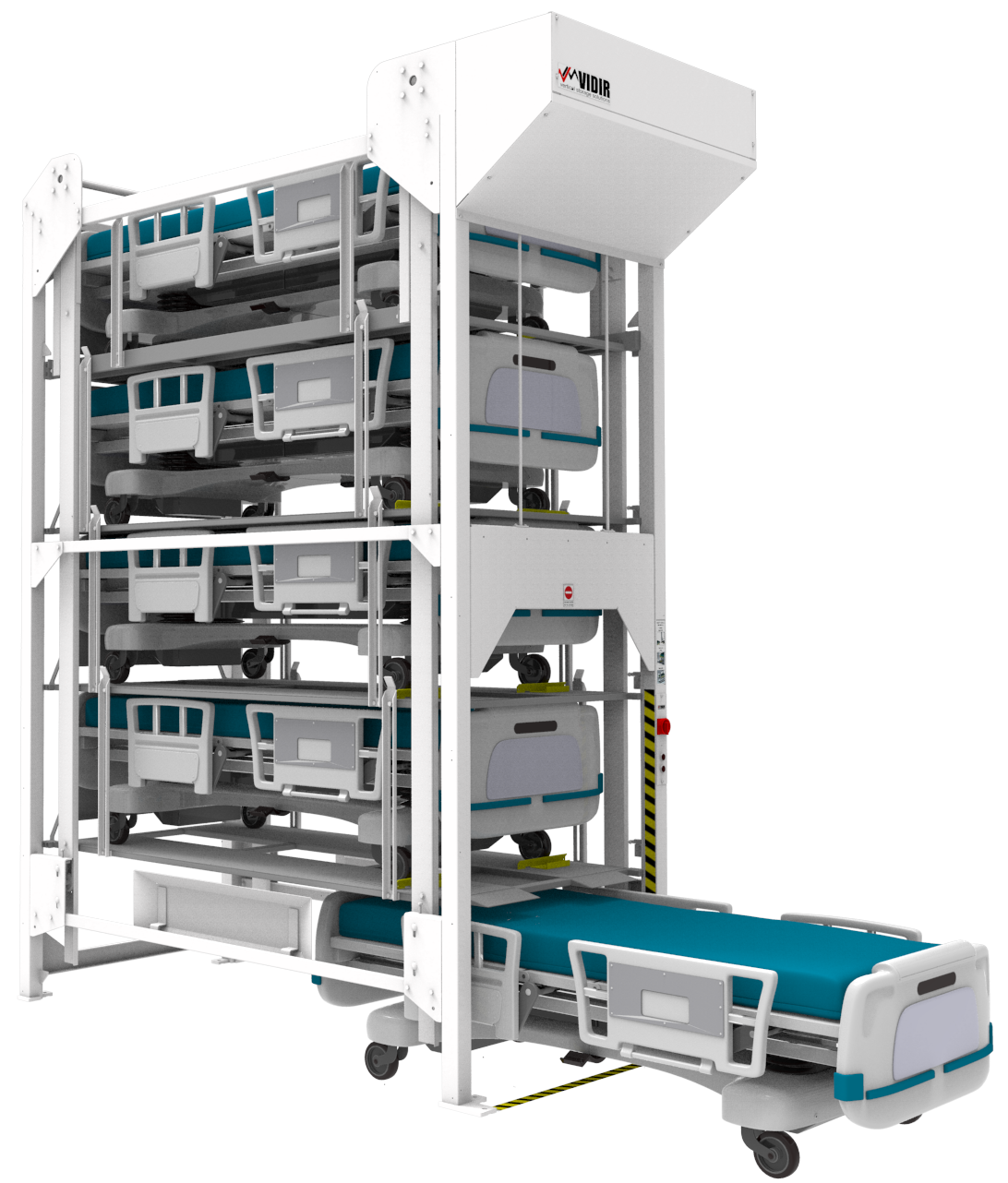

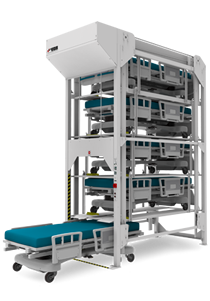

The bedlift is a hospital bed storage system that can store up to 5 hospital beds vertically in a footprint slightly larger than a single bed. They are frequently used to store hospitals overflow beds, beds in repair and auxiliary and specialized beds. They are also used in some situations to provide easily accessible storage banquet beds closer to patient areas to reduce turnaround time to get the beds.

Bedlift Features:

• Save Space
• Meet JHACO requirements
• Improve Organization
• Improve Accessibility
• Secure and Protect Beds

Common problems that occur without bedlifts:

• Aisle and Corridor egress is #1 Cited issue in the Life Safety Code (LSC)
• The average Building cost for a hospital is $400 + per sq. ft.
• Spare Hospital Beds are not readily accessible near patient areas
• At any given time 7 – 10% of all hospital beds are in maintenance or repairs.

What bedlift can do to improve the space?

• Reduces hallways “clutter” to address NFPA 101 – Life Safety Code.
• Floor Space Savings of, on average, 60 sq. ft. per unit
• Time Savings in labor for transporting hospital bends
• Secure and protect hospital beds

Cost Saving Benefits on Bedlifts:

• Cost Of The Space
• Office Site Storage Costs (Average Rental Spaces Starting At $110 – $138 Per Day With A 5 Day Or More Minimum)
• Hospital Bed Rental Costs
• Cost Of Paying An Employee To Transfer Beds Around A Hospital

Floor Bed Capacity Savings:

• 2 Capacity System- 18 sq. ft. space saving and $7,200
• 3 Capacity System- 46 sq. ft. space saving and $18,400
• 4 Capacity System- 74 sq. ft. space saving and $29,600
• 5 Capacity System- 102 sq. ft. space saving $40,800

The bedlift is successful in hospital maintenance rooms, storage rooms, and zoned corridor space. Additionally, the most successful installations have multiple storage locations to reduce the response time for a required bed as well as reducing the labor to retrieve the hospital bed.

Industries:

• Hospitals
• Military Hospitals
• Service and Storage Companies
• Architects
• Rehabilitation Centers
• Hospital Bed Manufacturers with Service/Maintenance Programs
• Bed Rental/Leasing Companies

Bedlift Series

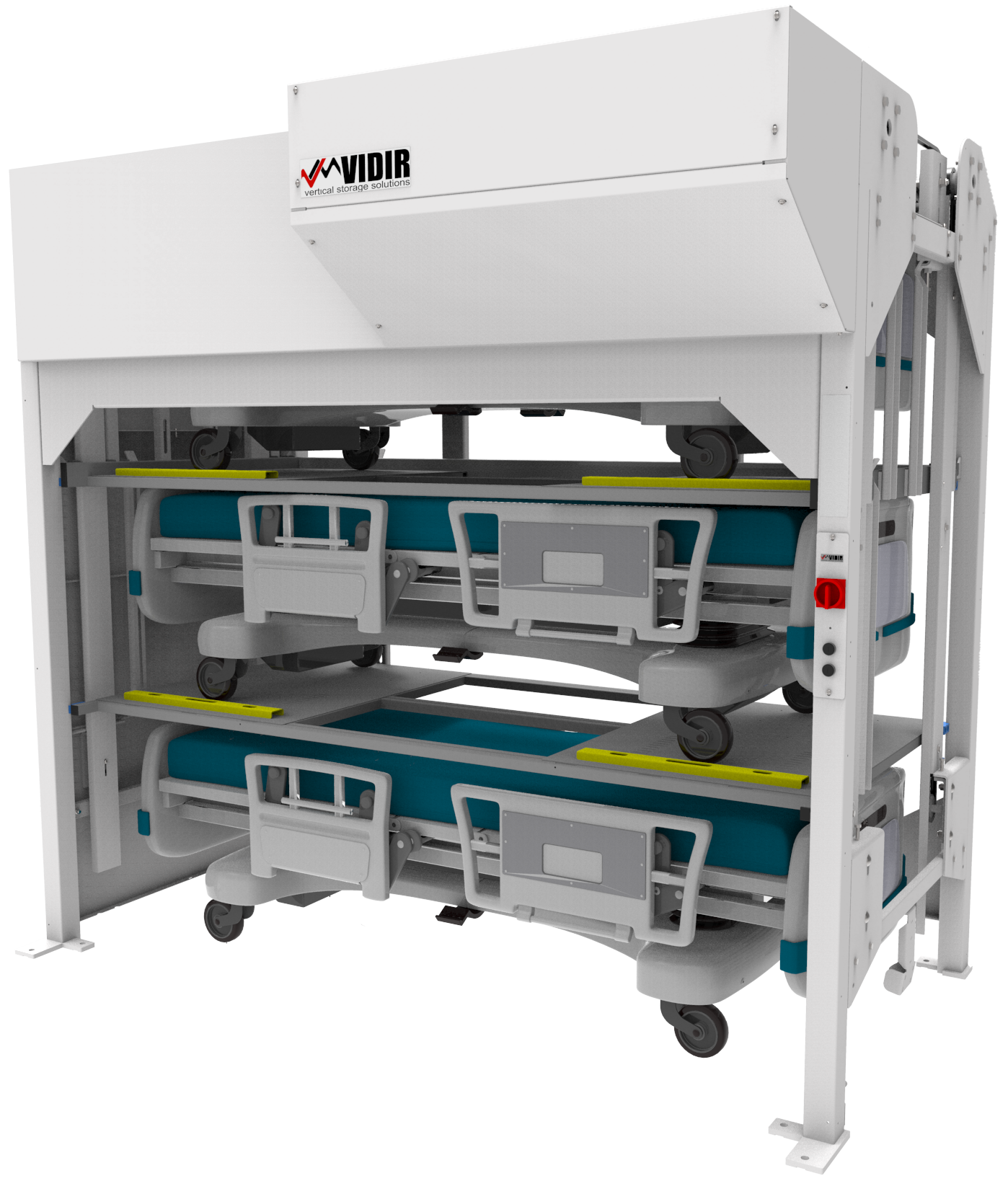

		Bedlift Regular Duty The R Series is designed to accept 80-90% of all hospital beds with a vertical pitch of 27” and capacity of 600 lbs. per position. The unit loads from the front.
		Bedlift Extra Capacity The X Series (Extra Capacity) is designed to accept the remaining 10-20% of beds with a larger vertical pitch of 33” and capacity of 900 lbs. per position. The unit loads from the front.
		Bedlift Side Load The S Series (Side Load) Bedlift is designed to load using the width of the bed requiring less floorspace for loading. This is for spaces with a unique profile and space constraints.
		Bedlift Narrow The N Series (Narrow) is designed specifically for narrower profile beds. stretchers, and operating tables. The unit has a width of 31.5”. The unit loads from the front.

“Automated vertical bed storage provide better protection for the hospital beds which can cost up to $40,000 per bed, and loaded with sensitive electronics, this is equipment that needs to be properly maintained and stored. Protecting the beds from getting banged into walls, door jams, and other equipment will help to extend the longevity of their use, and realize a better return on the investment.”

“Bed storage is such a big issue for many hospitals, Hospital square footage is at a premium. If we can start putting beds straight up, instead of taking up floor space, it just makes more sense. Not only will it keep the corridors clear and in compliance with Fire Marshall’s codes, but it will also give us more room for critical patient-care equipment.”

 The Vidir Hospital Bedlift is a cost effective hospital bed storage system designed to store hospital beds off of the floor and stack them securely in a vertical arrangement. This not only saves valuable floor space but removes potential fire hazards from hospital corridors. This hospital bed storage rack will increase the hospitals storage capacity, organization, and product flow; reducing down time, which increases the number of beds available for patient use at any given moment.

Seismic Packages – Optional

Two Seismic Installation Scenarios have been developed and approved though OSHPD for the installation of the Vidir Regular Capacity Bedlift and Extra Capacity Bedlift.

Important Notes:

• Requires the bedlift to be anchored to the hospital buildings structure
• Covers ground floor installations only.
• Requires a minimum 4” embedment
• Must be installed on a concrete slab or grade
• Concrete must be at least 6” thick
• Anchor’s must have at least 10” separation form concrete slab edge.

Seismic Installation Scenario 1 (Single)
Consists of an additional rear anchor kit and two additional front anchors. Will be required in every Bedlift installation that requires OSHPD approval. The package provides OSHPD coverage up to the SDS rating specified in the accompanying chart for a single Bedlift regardless of quantity or positions.
Chart to come…

Seismic Installation Scenario 2 (Multi)
In addition to the anchoring required in seismic installation scenario 1, this consists of a side mounting kit to connect two units to one another to increase the SDS rating that multiple units are certified to. The package provides coverage up to the SDS rating specified in the accompanying chart for 2 units connected, side by side.

Accessories:

• Side Panels (Required)
• Platform Inserts- Fills platform profile for stretchers and other narrow bas applications
• Vertical Security Gate
• Anti-Microbial Paint- Increased protection against 99.9% of all common pathogens as well as additional properties that are resistant to mold, mildew, fungus.
• Colors to match your space

Installation Notes:

• Get Installation information to know before the installations
• Is there a loading dock?
• Is there a clear path to the installation location for the unloading area
• Suitable concrete floor for anchoring
• Special training/equipment required
• Bedlift installation takes 6-8 hours with 2 installation technicians.
• The electrical need to be run prior to the equipment being installed
• Forklift or accepted  equivalent needs to be available
• Trained professional provided by NationWide Shelving

Replacement Parts are available
Service and maintenance is recommended every year.
