Mobile Shelving: Aisle-Saver

Mobile shelving systems will save more space over traditional static shelving. Mobile shelving systems eliminate the need for multiple aisles and replaces them with additional shelving units, making the most use of your valuable space. Available in Electric, Mechanical Assist, or Manual.

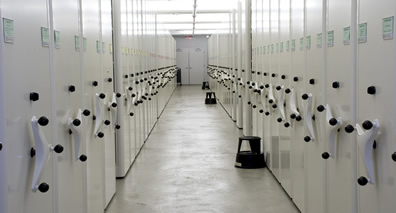

High density mobile storage systems are designed to make best use of floor space while giving full access to any kind of sortable items. High density mobile storage systems reduce the wasted space in aisles by only using half the space that static shelving systems require. Mobile storage systems are movable shelving carriages that are mounted on floor tracks. These welded mobile systems can be operated by electricity or by hand. Customized layouts are available to fit any kind of need.

Features:

• Increase Storage and Filling Capacity by 50%
• Cost-Saving Storage

Electrical Mobile Shelving System

The Synergy Series Electric System offers the ultimate in Operational Simplicity and Efficiency. It is standard in both security and safety.

Accessible Programming and Installation
This unit comes with a LCD control screen that is easy to read. The Synergy Series Electric System Features high end electronics, plug and play that has reliable performance and is simple to read for ease of installation. Programming installed on this device gives you control to customize your unit to meet specific wants and needs. Maintenance/system upgrade is simple and easy are requires minimal cost and little downtime.

Soft Start Technology, Light Carpet Technology, and Programmed for Continuous Security

The Synergy Series Electric System is highly economical as well as efficient to run and maintain. The units system uses 12 volts and all the motors operate on just one-seventh of only one horsepower. The carriage movement reduces the consumption of power intake as well as costs. Users of this unit have had reliable safety, protection, and security for over 15 years.

Features:

• Increase Storage and Filling Capacity by 50%
• Cost-Saving Storage
• Easy to Use

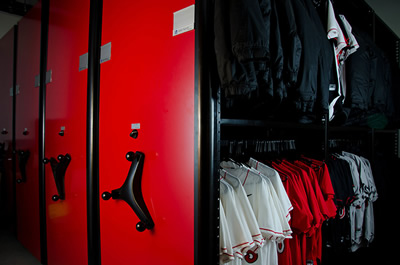

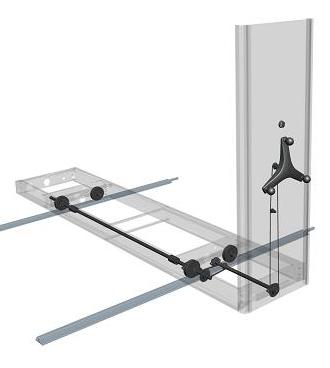

Mechanical Mobile Shelving System

Borroughs, Aisle-Saver Synergy Series Mechanical Assist System, has the most simple and easy operation system. This unit allows you to double filling and storage capacity with the quality of Aisle-Saver engineering which designed an easy to operate system and is designed to be efficient. Made with ergonomic handles and precision design it delivers a power yet suave drive ration for easy and quick operation. Its mechanical design allows it to have many advantages that a normal shelving system could not provide.

Features:

• Increase Storage and Filling Capacity by 50%
• Cost-Saving Storage
• More Affordable

Heavy Duty Mobile Storage

Aisle-Saver HD 10 Mobile Storage System Storage Capacity is a mechanical assist compact warehouse storage system designed to deliver a cost-efficient substitute for pallet racking. This unit is capable of compressing multiple pallet rack rows, each rack having a capacity load of 10,0000lbs. It effectively doubles warehouse storage loads/capacities. System sizes/carriages are designed to meet your facility’s requirements. Constructed from 10 gauge steel these carriages are best built in the industry. Powering wheels on both sides of unit.

Features:

• Modern Pallet Rack
• Increase Storage and Filling Capacity by 50%
• Cost-Saving Storage
• More Affordable
• Variety of Color Powder Coat Paint
• Pedestal feature front drive panel
• 3 ½” diameter dual-flanged wheels
• Carriage Lengths up to 40’
• Maximum loads are rated for up to 10,000 lbs. per section of rack
• All wheels and axles feature sealed, lifetime-lubricated bearings
• Easy access for adjustments or service without unloading stored materials
• 1” hollow tube drive shaft for increased strength
• System can accept most manufacturers standard racking
• Carriages can be configured to meet practically any need with depths of 30”, 36”, 42”
       & 48”

Mobile Track System

Aisle-Savers Synergy Series Track Systems, The track system can be recessed in almost any type of flooring, concrete installations, decking, or mounted on top of the floor to meet wants and needs. Overlapping is secured and gives great horizontal and vertical alignment and gives even load transfers. Maximum capacity loads designed for this unit reach 1,000 lbs. per linear carriage ft. Lengths of carriage systems range anywhere between 3’ to 60’. Carriage widths range from 12” to 60”. Carriages are designed with 12-gauge cold rolled steel that has features such as side channels, torsion channels, and cross members for added strength and sturdiness.

Multi-Level Systems & Mezzanines

Multi-Level Systems:

The multi-level system can double or even triple the storage capacity within your facility. This system is designed to use existing overhead space that is not being used and creates the ultimate space saving unit. With the multi-level system a customer saves thousands of dollars by not having to build a new construction of the facility. This unit is very cost effective and is an awesome alternative which also uses existing heat, light, and cooling. The unit is also provides tax benefits because the units are considered equipment not property.

Full-Mat / Catwalk Shelving Systems:

This features ads a second level or “Second floor” that is built over the lower level. Thus allowing full access to unlimited placement of shelving and no post to post match up is required.

Catwalk aisles are attached to themselves and the second floor or shelving and do require post to post match up between levels; however, it makes it less expensive to build.

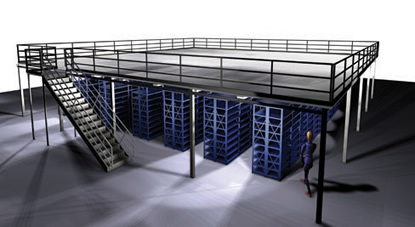

Freestanding Mezzanines:

Freestanding Mezzanines maximizes the use of floor space and provide needed production, assembly, or storage/office areas. These units are great for maximizing the amount of space at your workshop/workplace by allowing you to store so much more than what was thought possible. The second level of structure can be used for shelving space as well as can be turned into smaller upstairs offices.

Boltless Shelves: Rivet-Span

Rivet-Span is constructed without any bolts or clips and can store just about anything you might need it too. It is extremely easy to assemble but can hold loads of weight at a time and it is a span shelving so the spans/depths are wider and much better! Its quick labor and saves installation set up costs and sizing eliminates cost decking for cutting charges. It has a secured double key hole and shoulder river connections. Access is allowed from all four sides of the unit and beams can hold a wide range of loads. The spans are up to 8’ and they optimize storage use.  Bulk Storage units are suited to any kind of hand loading. Designed to hold large capacities and hold a broad range of bulky parts or material that is too hard to store in other units. The shelf units are designed for units that are 48” in width and shelves adjust on 1-1/2” centers.

Features:

• Economical
• Strong
• Simple Assembly
• Flexible

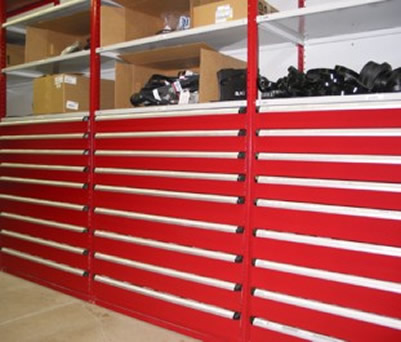

Modular Drawer Cabinets

Borroughs Modular Drawer Cabinets are the new way of storing and save space in your workspace. The drawer cabinets are designed for a 12,500 lb. stacking capacity as well as being able to lift 7500 lbs.  The removable lock cores allow for re-keying of cabinets without having to disassemble them if the keys ever get stolen and get lost. The cabinets are starting at 30” wide and start at 55”, 44”, and 33”. The other size available for wider drawers is 45” at start at 33”, 44” and 55”.

Pre-Configured Modular Drawer Cabinets are a great way to store small to mid-size items. Modular Drawers can save up to 60% of storage footprint. 16 sections of shelving ( 36' w x 24' d x 84') can fit inside 6 modular drawer cabinets.

NEW SIZES AVAIABLE!:

• 40 inches- Stand Up Height
• 31 Inches- Table Height
• 27 Inches- Desk Height

Features:

• Bullet Proof Quality
• Many Sizes Available
• Save up to 60% floor space
• Space Saving
• Flexibility
• Security
• Safety

Weapons Racks & Storage

Boroughs is the only U.S. manufacturer that has heavy duty 14 and 16 gauge steel construction and the only cabinet that can hold 16 rifles across. The cabinet requires fewer welds and enhances strength and structural integrity. The 16 gauge doors provide the best of security and are usually preferred because of the quick sight inventory feature. Doors have a three point locking system with padlock hasps as well as the option of sliding or hinged doors. Unit can also have brackets, shelving, or pistol posts for multiple weapons.  This unit can be reconfigured or expanded to meet growth or requirements of growing facility.

RTA Storage Cabinets

There are three types of storage cabinets within the boroughs line, storage cabinet, garment cabinet, and Storage cabinets. The garment cabinet is designed specifically to store garments and other personal items, the size of the unit is 78” x 36” x 18”. The counter- height cabinet doubles the work space available to you and has reinforced doors, bullet hinges, 4”rise bases, sating chrome handles, and has a 3- point locking system. Shelves adjust at 1.5” increments and a 4” caster base is optional.

High Density Drawers

High Density shelves are shelves that have sides, a back, and a front to it for protection of parts/equipment. This unit can easily install into Boroughs Box Edge Plus storage shelving unit. Each drawer unit holds as much as five bin units and holds up to 400lb capacity per drawer. Faster parts picking allows technicians to find exactly what they want quickly and accessibly. The units sizes are 36”, 48” W  x 18”, 24” D and each of the shelves have four sizes as well as four different height choices.

Shop Cabinets & Work Benches

There are three types of storage cabinets within the boroughs line, storage cabinet, garment cabinet, and Storage cabinets. The garment cabinet is designed specifically to store garments and other personal items, the size of the unit is 78” x 36” x 18”. The counter- height cabinet doubles the work space available to you and has reinforced doors, bullet hinges, 4”rise bases, sating chrome handles, and has a 3- point locking system. Shelves adjust at 1.5” increments and a 4” caster base is optional.

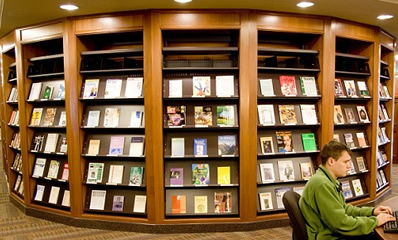

Wilsonstak Library Shelving

Borroughs seven different types of Library shelving are Periodicals, Media Storage, Mobile Book Carts, Library Bookstack Planning, Standard Cantilever Systems, Case- Style Shelving, Children’s Area Shelving, and Wilsonstak Multi-Level Systems. Among these systems, media storage is one of the highly requested shelving units for all different kinds of business departments such as music stores, libraries, record stores, and many others. This unit has a under shelf wire book support, Sloped Display bases, newspaper racks, and many other features. The mobile book cats are also a big seller due to their best feature; it is a moving shelf system.

B-Span Wide Span Storage

This wide-span shelving solution is known of its easy access storage. It has many applications because of its heavy-duty design and work with mobile storage products.
B-Span wide-span shelving can be used with a forklift and by hand loaded. This beautiful shelving can be designed for a show rooms or as backroom storage thanks to the Box Edge Plus design.

Features:

• Can be Adjusted every 2 inches

• The recessed tail flange keeps storage space from being intruded

• The post punching allows the structure to be used with
• Borroughs Box Edge Plus shelving.

• Bolted together or pre-welded options

• Heights: 48” to 144”

• Depths 12” to 48”

• Compatible with B-Span or Box Edge Plus shelving

• 12 gauge Heavy duty and 14 gauge Standard Available

• Widths: 4, 5, 6, 7, 8, 9 & 10 feet

• Beams accommodate several decking choices (7/16” or 3/4")

• Customizable levels

• The full mat system is compatible with deck over beams

• To be compatible with Aisle-Saver Mobile storage applications the flush bottom beams are available.
