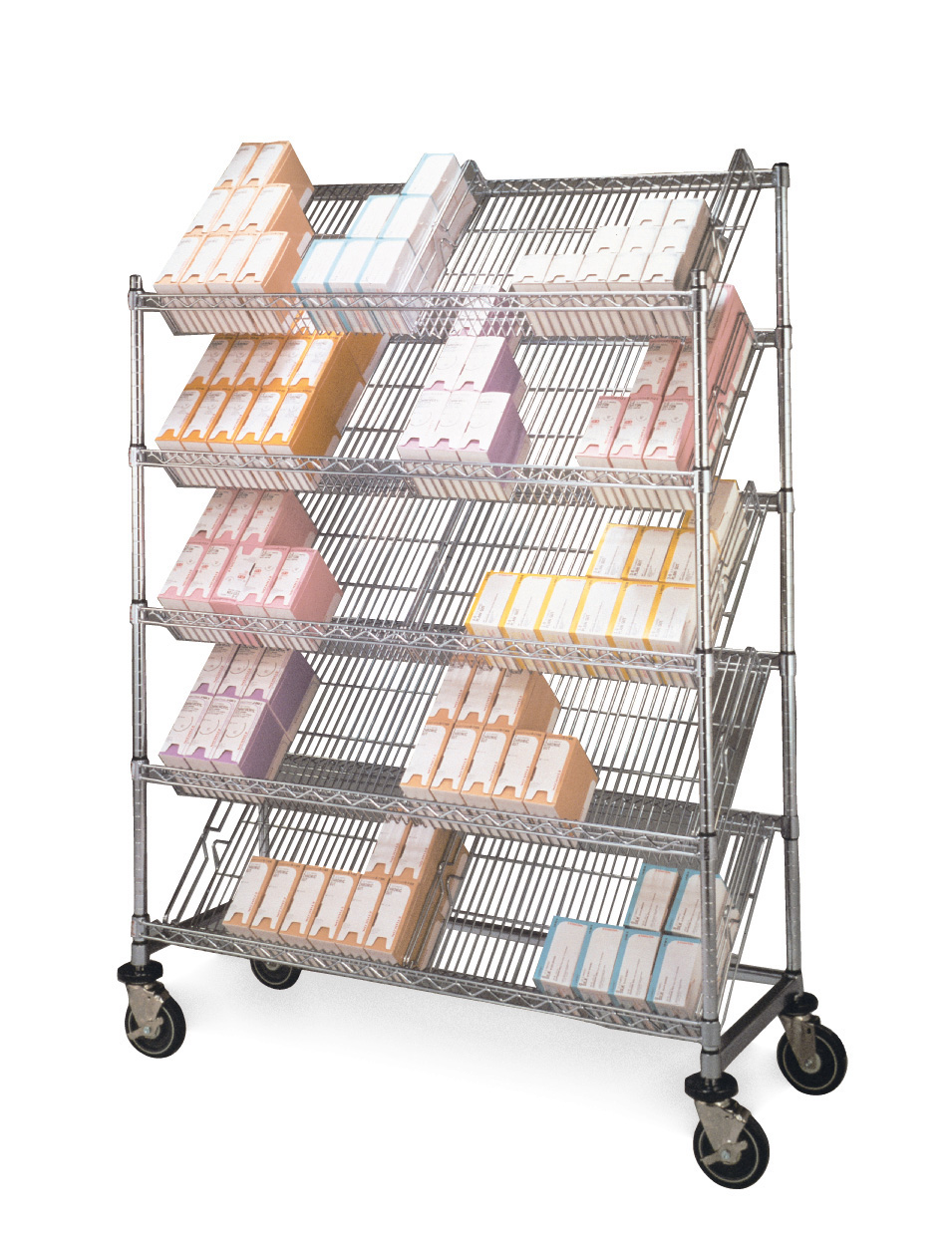

Catheter Cart used to hold and safely transport catheters. Used in hospital/lab application. |
Automated Storage Options For Catheter Storage
|
Traditional Wire Carts for Hospital Storage Solutions in Health Care |
Automated Hospital Storage Solutions from NationWide Shelving |
|
|
Metro Wire Cart Catheter Storage |
A look Inside an Automated Catheter Storage Solution |
|
|
Modern Hospital Storage Solutions from NationWide Shelving |
Hospital Storage Solutions |
|
 |
Refrigerated or Freezer Hospital Storage Solutions |
Locking Hospital Storage Solutions |
|
|
For More Information Call 866-328-5066
|
| |
Hospital Catheter Storage Solutions
Nationwide Shelving and Automated Storage Solutions provides storage solutions for all Hospital Storage Requirements. There are traditional and new age solutions for Hospital Storage Solutions. We can review the possible solutions with you and determine which is the best value for your Department and application.
Traditional Storage Solution for Catheter
Traditionally we have provided Mobile Wire Carts from vendors such as Metro and still provide this solution when a client finds it to be the best value. A new Storage Solution for Catheter
Recently there has been a trend toward Automated Storage in the Catheter Department.
Literature:
To find literature for each application of Hospital Storage just click the button on the right side of the page.
What is Catheter Responsible for?
Catheter, CPD, is responsible to
keep everyone safe from
infections that can be spread by
contaminated instruments and equipment. They are
responsible for providing clean
and sterile medical and surgical
supplies and equipment to
patient care areas.The primary goal of CPD is to
assure quality aseptic control
and prevent and control the
spread of infection, CPD
provides services in the
cleaning, preparation, processing,
sterilization and delivery of
equipment, sterile instruments
and trays to the
Operating Room and all departments
in the hospital. Hospital Storage Solutions Contacts:
Director of Catheter
Technicians
Hospital Storage Solutions Applications
For Hospitals and Medical Facilities,Pharmaceutical Drug Manufacturers and Drug Developers, and many more.
Hospital Storage Solutions Manufacturers:
Hanel USA - Automated Storage
Metro - Traditional Wire Carts
Professional Organizations Catheter Staff may be inv loved in
IAHCSMM
International Association of Healthcare
Central Service Material Management.
Please Phone Us At
866-328-5066
to learn more today.
|
|
|
®
Starsys Catheter Storage System
The Starsys catheter storage module is a highdensity
storage solution, which provides quick
access and retrieval, visual inventory and easy
identification.
• Accessible — Each slide on the catheter module
offers full extension, which brings the catheters into
full view allowing quick access and visual
inventory of remaining stock.
• High Density — Each module can accommodate
up to 5 slides. The maximum capacity for a slide is
120 catheters. Maximum capacity for a module is
360 catheters. The standard configuration is one
shelf, 3 slides, 30 labels and 15 hooks (180
catheters).
• Adjustable — The catheter module is removable
without tools and can be adjusted vertically on 11/2"
(38mm) increments.
• Flexible Configurations — The catheter module
may be positioned in the top of a cabinet for
maximum storage length. You may put multiple
catheter modules in a single bay for the storage of
shorter catheters, or you may combine with
drawers. A cabinet can be designed with a
configuration to fit your needs without extending the
lead-time.
• Versatile — The catheter module may also be
used as a general storage level when storage is
required above catheters.
STARSYS™ CATHETER STORAGE SYSTEM
Designed for environments where aesthetics are important and cleanliness is essential, Starsys™ is a highly
organized system that meets the demands for storage, transport and productivity centers. This modular
system provides solutions that can be easily reconfigured to meet the rapid and constant change in today’s
healthcare environment. Catheter storage is a prime example of how Starsys can be configured to meet a
specific application.
TIM CAMPBELL 800-400-7500
®
STARSYS™ CATHETER STORAGE SYSTEM
Starsys Catheter Storage
SXCATH* — The SXCATH catheter module is an
accessory for a stationary or mobile Starsys unit
configured with corrugated polymer inner panels.
• Consists of 1 shelf, 3 slides, 30 labels and 15 hooks
• Shelf is predrilled to accommodate up to 5 slides
• Shelf locks into place so it does not pull out as slide
is extended
• Removable without tools
• Adjustable vertically on 11/2" (38mm) increments
• Dual role:
• Storage of hanging catheters below
• Also serves as a shelf for supplies
• Shelf is epoxy-coated steel
• Weight capacity: 75 lbs. (34 kg.)
(Includes weight of slides, catheters and supplies)
• Dimensions: 63/8"H x 177/8"W x 21"D
(162mm x 454mm x 533mm)
• Shipping Weight: 29 lbs. (13.2 kg)
* Some assembly required
SXCATHSLD — The SXCATHSLD is a full extension
catheter slide that works in conjunction with the
catheter shelf assembly. Up to two additional
SXCATHSLD can be added to the SXCATH.
• Consists of 1 slide, 10 labels and 5 hooks
• Installs onto SXCATH easily with the turn of a screw
• Built-in stop keeps slide from extending when
closed
• Can hold up to total of 10 hooks
• Hooks can be oriented in one of three ways:
Left, Right or Straight Forward
• Pull handle also serves as label holder
• Label Size: 21/2"W x 37/8"H (64mm x 98mm)
• Weight Capacity (per slide): 25 lbs. (11 kg)
• Slide Extension: 20" (508mm)
• Shipping Weight: 71/4 Ibs. (3.3 kg)
TIM CAMPBELL 800-400-7500
3"
(76mm)
671/4"
(1708mm) 21/2"
(64mm)
7/8"
(22mm)
TOP GROOVE
72" (1829mm) High Stationary Unit
601/8"
(1527mm)
3/8"
(10mm)
21"
(533mm)
TOP VIEW
SHELF
177/8"
(454mm)
21/8"
(54mm)
3"
(76mm)
6"
(152mm)
6"
(152mm)
63/8"
(162mm)
17/8"
(48mm)
SXCATHHK — The catheter hook can be installed on
the slide without tools. The hook can be rotated on 90
degree intervals so the catheters can hang off to the
left of the slide, to right of the slide or directly below
the slide. Maximum storage capacity can be attained
with three slides (10 hooks per slide) when the hooks
alternate left to right from slot to slot.
• Consists of 1 bag of 5 hooks
• Capacity: Up to 12 catheters
• Maximum Weight Capacity (per hook): 5 lbs. (2kg)
TIM CAMPBELL 800-400-7500
®
STARSYS™ CATHETER STORAGE SYSTEM
SXS72SCATH1
SXD76MCATH1 (mobile)
761/4"H x 421/2"L (1937mm x 1080mm)
• Comes with 2 catheter shelves, 6
slides, 30 labels, 30 hooks and
two locking doors (270° hinge)
• Capacity: 360 catheters (up to
720 catheters with an additional
30 hooks)
• Maximum length: 60" (1524mm)
SXS76MCATH1 (mobile — not shown)
761/4"H x 223/4"L (1937mm x 578mm)
• Comes with 1 catheter shelf, 3 slides, 30 labels,
15 hooks and one left hinged locking door (270°
hinge)
• Capacity: 180 catheters (up to 360 catheters with
an additional 15 hooks)
• Maximum length: 60" (1524mm)
SXS72SCATH1 (stationary - shown)
72"H x211/2"L (1829mm x 546mm)
• Comes with 1 catheter shelf, 3 slides, 30 labels,
15 hooks and one left hinged locking door (270°
hinge)
• Capacity: 180 catheters (up to 360 catheters with
an additional 15 hooks)
• Maximum length: 60" (1524mm)
SXD72SCATH1 (stationary)
72"H x 421/2"L (1829mm x 1080mm)
• Comes with 2 catheter shelves, 6
slides, 60 labels, 30 hooks and
two locking doors (270° hinge)
• Capacity: 360 catheters (up to
720 catheters with an additional
30 hooks)
• Maximum length: 60" (1524mm)
TIM CAMPBELL 800-400-7500
®
STARSYS™ CATHETER STORAGE SYSTEM
SXD76SCATH2 (stationary)
72"H x 421/2"L (1829mm x 1080mm)
Left side comes with two 9"D
(229mm), two 6"D (152mm), one 3"D
(76mm) drawer, three shelves and
one non-locking door (270° hinge)
Right side comes with 1 catheter
shelf, 3 slides, 30 labels, 15 hooks
and one locking door (270° hinge)
• Capacity: 180 catheters (up to
360 catheters with an additional
15 hooks)
• Maximum length: 60" (1524mm)
SXD76MCATH2 (mobile)
761/4"H x 421/2"L (1937mm x 1080mm)
Left side comes with two 9"D (229mm),
two 6"D (152mm), one 3"D (76mm)
drawer, three shelves, one non-locking
door (270° hinge) and a push handle
Right side comes with 1 catheter shelf,
3 slides, 30 labels, 15 hooks and one
locking door (270° hinge)
• Capacity: 180 catheters (up to 360
catheters with an additional 15
hooks)
• Maximum length: 60" (1524mm)
TIM CAMPBELL 800-400-7500
Job ________________________________________________
STARSYS™ CATHETER
STORAGE SYSTEM
®
Manufactured by:
The Starsys System
A Bright New Way To Work
REGISTERED
9 0 0 1 - 9 0 0 2
ISO
TIM CAMPBELL 800-400-7500
|
