Pipp mobile storage has been in business since 1981. Pipp's mission is to be able to design customer specific storage needs. They solve storage problems in many different work fields and always provide the best service and products to their customers. Their products are 100% customizable and they can build almost anything to match what you may need.
Mobile Carriage Systems:
Lateral Manual Carriage:
Lateral Manual Mobile Storage System’s are great for office/filing, medical records and supply storage. The system has 1 row (Bi-File) or 2 rows (Tri-File) of mobile units installed in the front and a row of static shelving behind it. The front units can be easily pushed on the track to access the rear row. About half of the unit will be accessible at one time. The units weight capacity is 3,000 lbs. per carriage.
Shelving Options:
Rivet Style Shelving
Four-Post Style Shelving
File Drawers
Specifications:
The structure is an assembly of 2” high angles (for length) and channels (for depth)
"V" grove track system available which is ADA compliant.
Storage unit dimensions plus 3/8” equal carriage dimensions
“V’ Groove carriage height from floor to top of angle (shelving mounting surface) is 2-3/4”

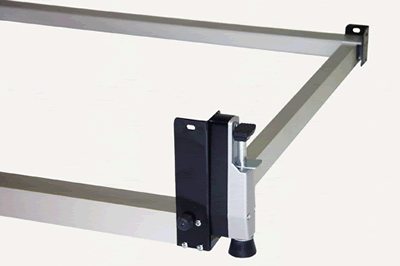

All lateral mobile carriages require Anti-Tip

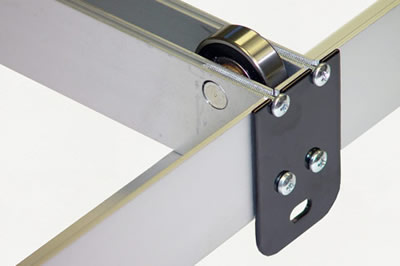

Wheels are permanently greased and sealed, the ball bearing is 1.58” diameter
Silver aluminum with black trim is the standard color
Commonly used for lightweight applications such as:
Retail (Shoes, Apparel and Handbags)
Lightweight Open Shelf Filling
Food Storage
Linen Storage
General Supply Storage
Specifications:
The structure is an assembly of 2” high angles (for length) and channels (for depth)
“V” Groove Track System and Flat Track System carriages are available
Storage unit dimensions plus 3/8” equal carriage dimensions (1/8” each side + 1/8”)
“V’ Groove carriage height from floor to top of angle (shelving mounting surface) is 2-3/4” for the “V’ Groove carriage and 3” for the Flat Track carriage.
Flat Track Wheels are 1045 steel flanged & 2 inches in diameter. Wheels run on a low profile flat track that is
“V” Groove Wheels are permanently greased and sealed, the ball bearing is 1.58” diameter
Carriage frame is heat-treated aluminum.5/8th of inch, 3/8 inches from the floor.
12 feet is the maximum length of any carriage
Weight capacity: 3,000 lbs per carriage. (This is the max load a person can move, not the capacity of the carriage.)
Silver aluminum with black trim is the standard color (carriage corners & center plates).
