Storage Property Protection:
Troax Classic
(Strong)
Salt Lake City, UT
The Troax Classic is for applications that do not have high security risks or have protection from the exterior. The Classic wire mesh partitions allows light, air and view from outside the cage. In case of a fire, it can be defused directly though the panels. The threshold-less door is similar to the leaf of the Troax Medium.
Panels
The UR 350 Panel is for areas with low risk of theft. The partitions offer a light and airy atmosphere. Many customers often like to use the UR 350 partitions to separate areas and machines. The frames are made of welded tubing that is 0.75x0.75 in and the wire mesh is 0.1 in. (The same as 3.9x2.0 in or 2.0x2.0 in )
Doors
The UR350 Door frame is stable and secure thanks to the 1.2x0.8 in steel tubing and two expertly designed cross tubes. The secure threshold-less doors are especially made to allow access for handicapped individuals. The mesh partitions are 2.0x2.0 in and are very strong; it is next to impossible to break into by hand. The doors are delivered assembled and are ready to be installed. The standard color is gray but other colors are available.
Protection from View
When digression is required, it is recommended to get the Type P which is made for corrugated steel sheets. It will protect individuals from viewing inside the cage. It is compatible with UR 350 UX 450 and partitions walls & roofs.
Accessories
The great feature about Troax products is the accessories and the endless customization available to fit any space: narrow or wide, low or high ceiling, and slopped floors.
Storage Property Protection:
Troax Medium
(Stronger) Salt Lake City, UT
Troax Medium is a great storage system for apartment building, cellars and attics, where a moderate level of protection is desired. Troax Medium protect against theft and break-ins thanks to its approved locks and reinforced front panels. The wire mesh allows tenants to feel safe because they can see though the panels or see if anyone in the area. The Troax Medium panels allows air, light and view from outside the cage. In case of a fire, it can be defused directly though the wire mesh.
Panels
If a moderate level of protections is desired the Troax Medium UX 450 mesh panel is recommended. The Troax UX 450 can protect against break-ins because it has stable mesh partitions. The mesh is press welded 3x3.75 in wire and the tubing is 1.2x0.8 in. The mesh partitions are 2.0x2.0 in and are really strong; it is next to impossible to break into by hand. The effortless assembly of the UX 450 is customizable and can be made to fit any type of area. The Troax Medium can fit any ceiling height, it also fits both narrow and wide areas. The Troax Medium is compatible with Troax UX550 and Troax UR350.
Doors
The UX 450 mesh panels are compatible with the Troax Medium system with a UX 450 door included. The doors should be used in areas with a strong exterior protection. The door can defend against theft and break-ins because of the padlock door and the padlock made specifically for it. The frame is made of steel tubing that is 1.2x0.8 in and has two cross tubing to make it stronger and secure. The doors are delivered assembled and are ready to be installed. It has no threshold which makes it easily accessible for handicapped and individuals in wheelchairs.
Protection From View

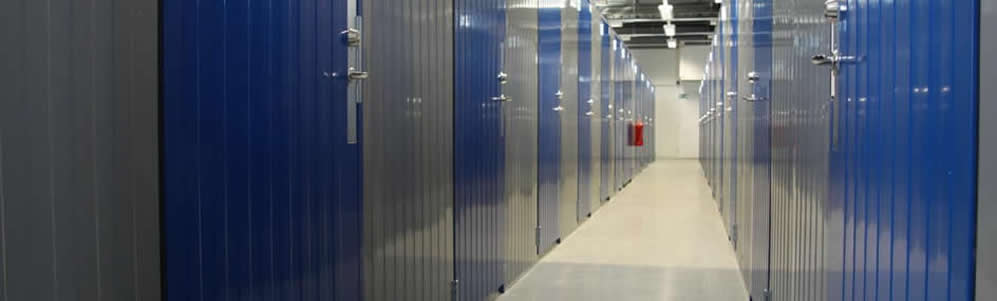

The UR SP is a panel that is solid and it has a high level of protection against break-ins. Since the sheet metal panels are solid, it is impossible to see inside. Most customers use it as a front wall in areas with a moderate level of protection outside. A solid door is available if wire mesh is not desired. The door has a latch built in for the padlock. The UR SP is compatible with a wide selection of mesh partitions.
Accessories
There are a number of Troax accessories available to adapt to areas that have sloping floors or ceilings. The Step-Free adjustments were made specifically for unique floors or uneven floors. The installation is simple, it has self-tapping screws and a number of different mountings that are easy to assemble. The Snapper mounting is used to fasten panels together. One can fill gaps in the walls and ceiling by using the special sections to customize the panels to fit. A variety of shelving systems and accessories make it possible for flexible placement.
Storage Property Protection:
Troax Safe
(Strongest) Salt Lake City, UT
If you desire the most secure system the Troax Safe storage partitions are recommended. The UX 550 mesh panel meets the requirements of the Swedish Theft Prevention Association’s break in protection standard for storage fittings. The Troax Safe systems is made for defenseless areas with a high level of theft and break-ins. Applications such as: storage spaces, apartment buildings, industrial, pam, buggy and cycle storage. The Troax Safe panels allows light, air and view from outside the cage. In case of a fire, it can be defused directly though the wire mesh.
Panels
The UX 550 was designed with the emphasis of security and the most advanced & secure mesh panels. There is a special section on the partitions to minimize the risk of break-ins. The Troax Safe has been tested and is in accordance with EN1627-30. A few applications where UX 550 is typically used are storage spaces, apartment buildings, cellars, attics, or spaces where an extra high level of security is desired. The Troax Safe system is customizable and can be used in just about anywhere. The UX 450 and UR 650 Series is compatible with the Troax Safe system.
Doors
The Troax Safe system UX550 door was specifically made to be used with the UX 550 mesh panels. The UX550 door has been approved by the Swedish Theft Prevention Association (SSF) and the door should be used in areas where an extra high level of security is desired. The frame is made of steel tubing that is 1.2x0.8 in and has two cross tubing to make it stronger and secure. The Padlock includes a cover that was especially designed to provide extra protection. The Door is 2.0x2.0 in which is the same as the partition panes. The doors are delivered assembled and are ready to be installed. It has no threshold which makes it easily accessible for handicapped and individuals in wheelchairs.
Accessories
The Troax Safe system has secure storage accessories with applications to allow narrow or wide areas, low or high ceilings, and slanted floors. The UX550 accessories has been approved by the Swedish Theft Prevention Association (SSF) and the it should be used in spaces that are vulnerable to theft and break-ins. One can fill gaps in the walls and ceiling by using the special sections to customize the panels to fit. A variety of shelving systems and accessories make it possible for flexible placement.

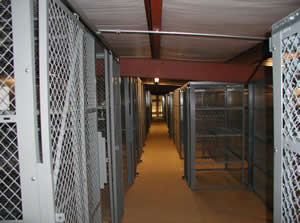

SpaceGuard manufactures Tenant Storage Lockers that are necessary for Military customers and their equipment. The Tenant Storage Lockers are 10 gauge woven or welded wire. The three standard widths are 3, 4, or 5 inches. Customer may request custom sizes. The Tenant Storage Lockers come with padlock hasp and reversible hinge doors.
Features:
Built for Military entities such as: Armed Force Reserve Centers, National Guards, Military Bases, and more.
Military equipment can be securely enclosed, equipment such as: Weapons, Fatigues, Duffel Bags and other military equipment.
SpaceGuard Storage lockers can be installed by anyone.
Military Storage Lockers can be customized to meet various requirements.
To make the locker truly secure, SpaceGuard has designed door frames mounts and panels to be perfectly even to the floor.
One aspect that is often overlooked in receiving warehouse docks, distribution centers, and factories is security access. Most customers come to find it is important to protect their inventory, tools and most importantly, their workers. Warehouse Receiving cages are the perfect answer for these potential problems.

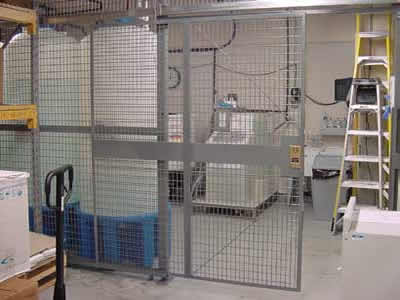

Warehouse Receiving Cage
A warehouse receiving cage is a great way to protect access of the entrance. These cages are also known as wire partitions, security cages, dock cages, and man traps. By placing a security cage or wire cage around the access point, you can monitor access of your space. Basically, it is a cage that encloses a door or garage to only allow authorized personnel or visitor access.
Customizable Warehouse Receiving Cage
Receiving cages can be customized to fit any area; even with sloped floors or unusual ceilings. Also, there are many accessories available for different levels of security and applications.
Service Window for Warehouse Receiving Cages

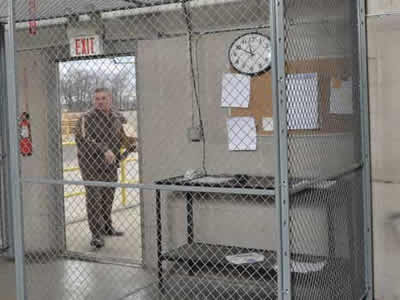

Many customers prefer to use a “service window” so each guest can check in before accessing the space.
Protecting Employees and Guests from Potentially Dangerous Situations with a Receiving Cage
Unfortunately, every once in a while a machine will malfunction. This could mean leaving employees vulnerable to injury from any part or materials the machine loses control of. The video to the left is an example of a machine robot that is lifting 114 lbs metal blocks and when it loses control of it, the block slams into the receiving cage panel. Luckily, the machine guarding was there to protect anyone from getting hurt. Some customers use the cages to keep visitors away from aisles that are being used by forklifts and dangerous machines, to protect them from harm. We can’t stress enough how important this guarding is to protect people from dangerous situations!
Avoid Theft, Save Money!
By installing a Receiving Cage, you can protect your inventory, tools, and valuables from theft and avoid the costly expense of having to replace them. Some customers find it more affordable to use a cage instead of hiring security to monitor the access. The cage practically pays for itself!
Emergency Exit
It is ideal to install a Hinged Door Panic Bar on most of your warehouse receiving cages so employees and guests can quickly exit the building in case of an emergency. The Panic Bar will allow anyone to leave the premises from the inside without the need to open any locks. Also, it's just more practical for daily use.
Conclusion: Warehouse Receiving Cages are Great for Receiving Warehouses!
Warehouse Receiving Cages can protect your employees and guests from dangerous machinery. You can protect your warehouse from theft and only allow authorized users access. There are many accessories available, for example, services windows for guests to check in at. Or simply protect your inventory and tools.
Attractive and secure, the 2180 system is ideal for data center computer security cages, office supply and document storage, and retail theft prevention, yet still provides an easily installed solution for traditional tool cribs and warehouse security applications. In fact, Series 2180 is perfect for the majority of applications. Since most wire partition applications are 10' or less in height, a competitive stackable system is not usually necessary and requires more time and manpower to install.
Tubular Frame Panel Security Cage
The tubular frame panel gives the installer clear access to ALL mounting hardware. The strength of the panels provides extra rigidity, nearly eliminating bending and casting. The advanced design includes mounting vertical panels with quick installing flanged head bolts. Generously slotted holes make alignment quick and helps compensate for uneven floors, helped by the use of larger mounting pads than traditional woven wire partition systems providing extra rigidity and security.

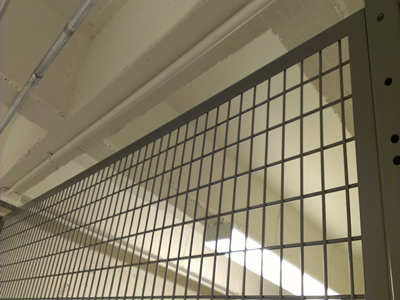

Welded Wire Mesh Security Cage
The welded wire mesh allows for easy cut-outs done in the field around existing pipes, beams, and other barriers, while maintaining its structural integrity.
Sliding Doors for Security Cages
Sliding Doors are designed for mounting outside or inside your wire partition. Constructed of the same materials as panels, and hung by 4-wheel trolleys rolling in an enclosed track.

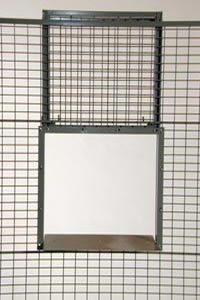

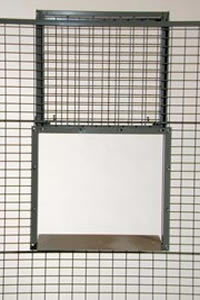

Ask about our slide-up window with shelf and lift catches (pictured above) or fold-down option with bottom hinged sheet metal closure forming the shelf. All doors and windows ship complete with all necessary mounting hardware to install and operate.
Finish: Panels, doors, and posts are phosphate washed with a standard finish of polyester powder coat in high quality gray. Also available in 5 additional standard colors (black, yellow, red, blue, and green) or you can contact our sales team for information regarding custom color matches.
Panels
Panels are constructed of 6-gauge, welded 1 1/2" x 2 1/2" rectangular wire steel mesh securely welded to frames made of 1" square 16-gauge structural tubing, with all joints mig welded. Frames are equipped with 1 1/4" x 3/8" slotted holes for quick mounting. There is a 3" sweep space below the lower horizontal frame member allowing for housekeeping.
Hardware
All panels and doors are shipped with appropriate hardware including heavy duty 5/16" flanged head bolts and nuts for all panel-to-panel, panel-to-door, and panel/door-to-post connections. Floor and wall anchors can also be furnished upon request.
Hinged Doors
Hinged Doors are constructed of the same materials as panels, and pre-hung in the frame. Swing direction must be designated at time of order (left or right, in or out). Standard openings are 7' high with transoms filling out panel heights of 8', 9', and 10'.
Sliding Doors
Sliding Doors are designed for mounting outside or inside your wire partition. Constructed of the same materials as panels, and hung by 4-wheel trolleys rolling in an enclosed track.
***measurements are not exact, each were rounded to the nearest 1/10 of an inch.
