Security Cages

As time marches by we have seen products come and go and are always amazed how some basic products continue to evolve and sales grown like weeds! Security Cages are one of those products. They provide security for physical items and for electronic data, as security cages are commonly used to protect all types of electronic data including servers. Security cages are a very economical way to provide security for just about anything you can think of. Like many security products sometimes they are just keeping honest people honest but sometimes they are very high security with a serious and mission critical purpose. We don't know much about cage fighting, but we do know our cages can keep a cage fighter out! or in =). Our SECURITY CAGES WIL KEEP OUT WHAT BELONGS OUT, AND THEY WILL KEEP WHATVER IS SUPPOSED TO STAY IN, IN! We have been designing security cages, selling security cages and installing security cages for a very long time and take our business very seriously.

Security Cages

Storage Property Protection:

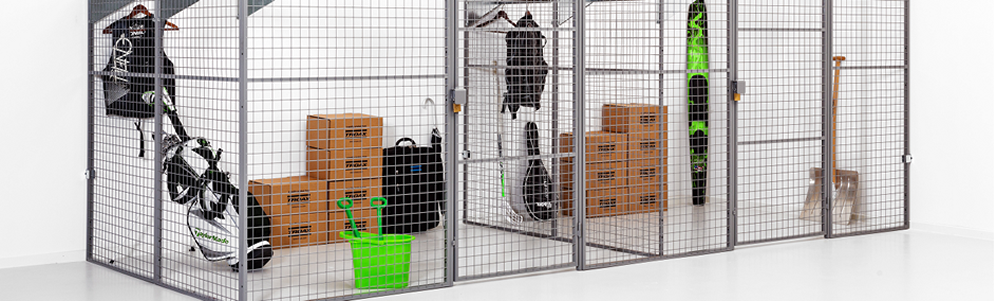

Security Cage Classic
(Standard Duty)

Security cages are for high security risks or for protection from the exterior. The classic wire mesh partitions allows light, air and view from outside the cage. In case of a fire, the fire can be defused directly though the panels. The door is a threshold-less door.

Panels

The UR 350 Panel is for areas with low risk of theft. The partitions offer a light and airy atmosphere. Many customers often like to use the UR 350 partitions to separate areas and machines. The frames are made of welded tubing that is 0.75x0.75 in and the wire mesh is 0.1 in. (The same as 3.9x2.0 in or 2.0x2.0 in)

Doors

The UR350 Door frame is stable and secure thanks to the 1.2x0.8 in steel tubing and two expertly designed cross tubes. The secure threshold-less doors are especially made to allow access for handicapped individuals. The mesh partitions are 2.0x2.0 in and are very strong; it is next to impossible to break into by hand. The doors are delivered assembled and are ready to be installed.  The standard color is gray but other colors are available.

Protection from View

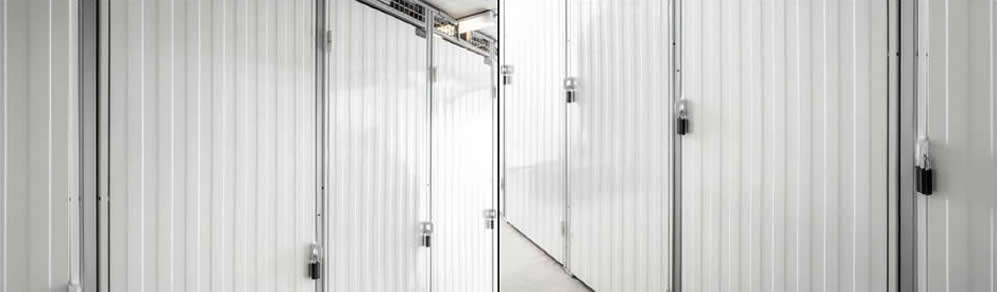

When digression is required, it is recommended to get the Type P which is made for corrugated steel sheets. It will protect individuals from viewing inside the cage. It is compatible with UR 350 UX 450 and partitions walls & roofs.

Accessories

The great feature about Security Cage products is the accessories and the endless customization available to fit any space: narrow or wide, low or high ceiling, and slopped floors.



Order by Phone!
866-328-5066



Storage Property Protection:
Security Cage Medium Duty
(Stronger)

Security Cage Medium Duty is a great storage system for apartment building, cellars and attics, where a moderate level of protection is desired. Security Cage Medium Duty protect against theft and break-ins thanks to its approved locks and reinforced front panels. The wire mesh allows tenants to feel safe because they can see though the panels or see if anyone in the area. The Security Cage Medium panels allows air, light and view from outside the cage. In case of a fire, it can be defused directly though the wire mesh.

Doors

Door UX 450

Security Cages

Panels

Panel UR450

Security Cages

Security Cages

Panel UR SP

Accessories

Cetus Shelf

Security Cages

Door System Kit Silence

Security Cages

End Profile UR/UX

Security Cages

Door System Holder Numberplate

Security Cages

Door System Trim Kit

Security Cages



Security Cages

Panels

If a moderate level of protections is desired the Security Cage Medium UX 450 mesh panel is recommended. The Security Cage UX 450 can protect against break-ins because it has stable mesh partitions. The mesh is press welded 3x3.75 in wire and the tubing is 1.2x0.8 in. The mesh partitions are 2.0x2.0 in and are really strong; it is next to impossible to break into by hand. The effortless assembly of the UX 450 is customizable and can be made to fit any type of area. The Security Cage Medium can fit any ceiling height, it also fits both narrow and wide areas. The Security Cage Medium is compatible with Security Cage UX550 and Security Cage UR350.

Doors

The UX 450 mesh panels are compatible with the Security Cage Medium system with a UX 450 door included. The doors should be used in areas with a strong exterior protection. The door can defend against theft and break-ins because of the padlock door and the padlock made specifically for it.  The frame is made of steel tubing that is 1.2x0.8 in and has two cross tubing to make it stronger and secure. The doors are delivered assembled and are ready to be installed. It has no threshold which makes it easily accessible for handicapped and individuals in wheelchairs.

Protection from View

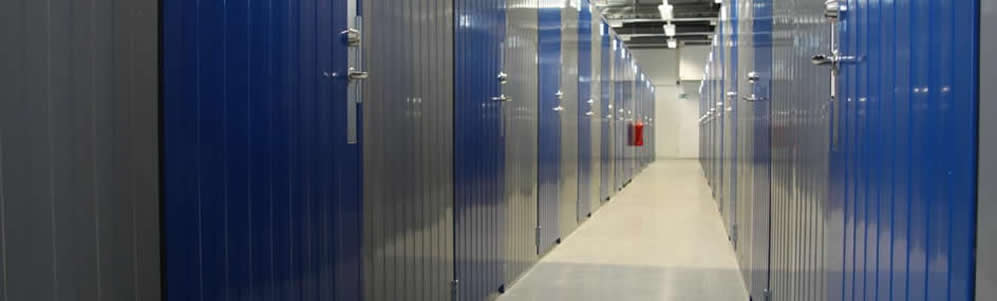

The UR SP is a panel that is solid and it has a high level of protection against break-ins. Since the sheet metal panels are solid, it is impossible to see inside. Most customers use it as a front wall in areas with a moderate level of protection outside.  A solid door is available if wire mesh is not desired. The door has a latch built in for the padlock. The UR SP is compatible with a wide selection of mesh partitions.

Accessories

There are a number of Security Cage accessories available to adapt to areas that have sloping floors or ceilings. The Step-Free adjustments were made specifically for unique floors or uneven floors. The installation is simple, it has self-tapping screws and a number of different mountings that are easy to assemble. The Snapper mounting is used to fasten panels together. One can fill gaps in the walls and ceiling by using the special sections to customize the panels to fit. A variety of shelving systems and accessories make it possible for flexible placement.

Storage Property Protection:
Security Cage Safe
(Heavy Duty)

If you desire the most secure system the Security Cage Safe storage partitions are recommended. The UX 550 mesh panel meets the requirements of the Swedish Theft Prevention Association’s break in protection standard for storage fittings. The Security Cage Safe systems is made for defenseless areas with a high level of theft and break-ins. Applications such as: storage spaces, apartment buildings, industrial, maps, buggy and cycle storage. The Security Cage Safe panels allows light, air and view from outside the cage. In case of a fire, it can be defused directly though the wire mesh.

Panels

The UX 550 was designed with the emphasis of security and the most advanced & secure mesh panels. There is a special section on the partitions to minimize the risk of break-ins. The Security Cage Safe has been tested and is in accordance with EN1627-30. A few applications where UX 550 is typically used are storage spaces, apartment buildings, cellars, attics, or spaces where an extra high level of security is desired. The Security Cage Safe system is customizable and can be used in just about anywhere. The UX 450 and UR 650 Series is compatible with the Security Cage Safe system.

Doors

The Security Cage Safe system UX550 door was specifically made to be used with the UX 550 mesh panels. The UX550 door has been approved by the Swedish Theft Prevention Association (SSF) and the door should be used in areas where an extra high level of security is desired. The frame is made of steel tubing that is 1.2x0.8 in and has two cross tubing to make it stronger and secure. The Padlock includes a cover that was especially designed to provide extra protection. The Door is 2.0x2.0 in which is the same as the partition panes. The doors are delivered assembled and are ready to be installed. It has no threshold which makes it easily accessible for handicapped and individuals in wheelchairs.

Accessories

The Security Cage Safe system has secure storage accessories with applications to allow narrow or wide areas, low or high ceilings, and slanted floors. The UX550 accessories has been approved by the Swedish Theft Prevention Association (SSF) and the it should be used in spaces that are vulnerable to theft and break-ins. One can fill gaps in the walls and ceiling by using the special sections to customize the panels to fit. A variety of shelving systems and accessories make it possible for flexible placement.

Doors

Door UX500 Padlock

Security Cages

Door UX550 Padlock

Security Cages

Door UX550 Cylinder

Security Cages

Panels

Panel UX550

Security Cages

Accessories

Cetus Shelf

Security Cages

End Profile UR/UX

Security Cages

Order by Phone!
866-328-5066

Application

Security Cages

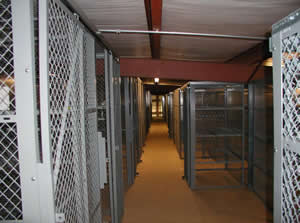

Self Storage

Security Cages

Storage Spaces

Security Cages

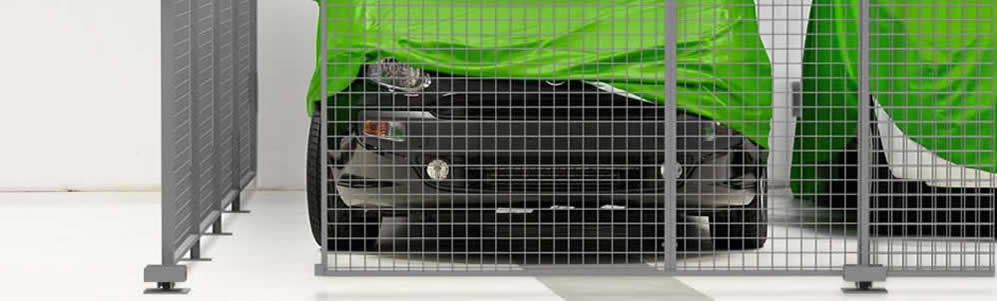

Garage System

Security Cages

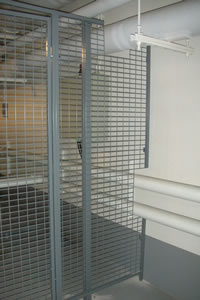

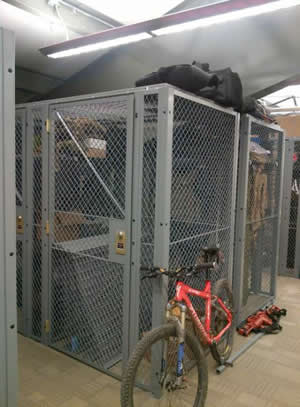

Military Storage Lockers & Security Cages

SpaceGuard manufactures Tenant Storage Lockers that are necessary for Military customers and their equipment. The Tenant Storage Lockers are 10 gauge woven or welded wire. The three standard widths are 3, 4, or 5 inches. Customer may request custom sizes. The Tenant Storage Lockers come with padlock hasp and reversible hinge doors.

Features:

  • Built for Military entities such as: Armed Force Reserve Centers, National Guards, Military Bases, and more.
  • Military equipment can be securely enclosed, equipment such as: Weapons, Fatigues, Duffel Bags and other military equipment.
  • SpaceGuard Storage lockers can be installed by anyone.
  • Military Storage Lockers can be customized to meet various requirements.
  • To make the locker truly secure, SpaceGuard has designed door frames mounts and panels to be perfectly even to the floor.
  • Security Cages
    Security Cages

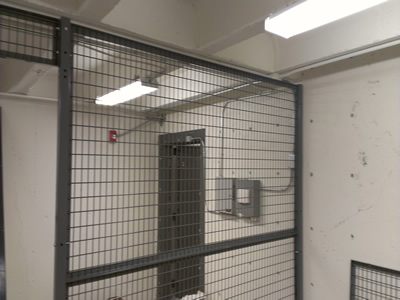

    Receiving Cage
  • One aspect that is often overlooked in receiving warehouse docks, distribution centers, and factories is security access.  Most customers come to find it is important to protect their inventory, tools and most importantly, their workers. Warehouse Receiving cages are the perfect answer for these potential problems.
  • Order by Phone!
    866-328-5066

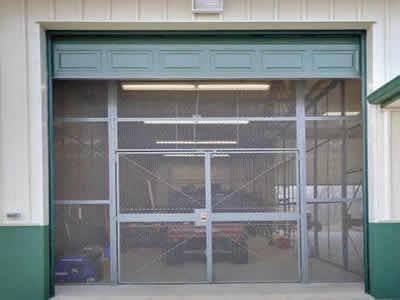

  • Warehouse Receiving Cage

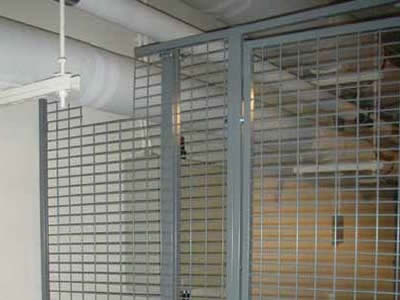

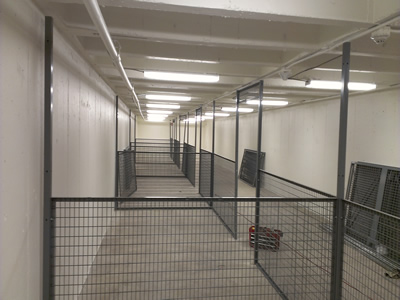

    A warehouse receiving cage is a great way to protect access of the entrance. These cages are also known as wire partitions, security cages, dock cages, and man traps. By placing a security cage or wire cage around the access point, you can monitor access of your space. Basically, it is a cage that encloses a door or garage to only allow authorized personnel or visitor access.
  • Security Cages
  • Customizable Warehouse Receiving Cage

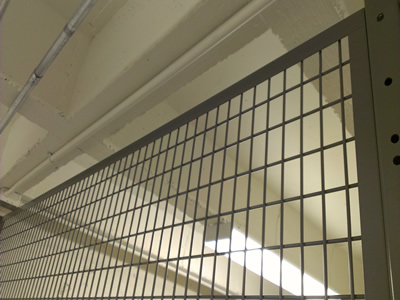

    Receiving cages can be customized to fit any area; even with sloped floors or unusual ceilings. Also, there are many accessories available for different levels of security and applications.
  • Security Cages
  • Service Window for Warehouse Receiving Cages

    Many customers prefer to use a “service window” so each guest can check in before accessing the space.
  • Security Cages

Security Cages

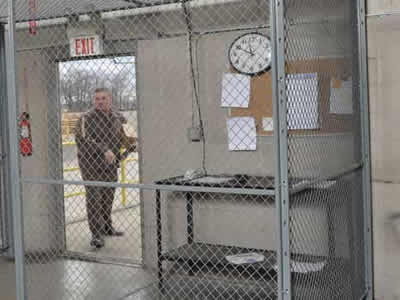

Protecting Employees and Guests from Potentially Dangerous Situations with a Receiving Cage

Unfortunately, every once in a while a machine will malfunction. This could mean leaving employees vulnerable to injury from any part or materials the machine loses control of. The video to the left is an example of a machine robot that is lifting 114 lbs metal blocks and when it loses control of it, the block slams into the receiving cage panel. Luckily, the machine guarding was there to protect anyone from getting hurt. Some customers use the cages to keep visitors away from aisles that are being used by forklifts and dangerous machines, to protect them from harm. We can’t stress enough how important this guarding is to protect people from dangerous situations!

Avoid Theft, Save Money!

By installing a Receiving Cage, you can protect your inventory, tools, and valuables from theft and avoid the costly expense of having to replace them. Some customers find it more affordable to use a cage instead of hiring security to monitor the access. The cage practically pays for itself!

Security Cages

Emergency Exit

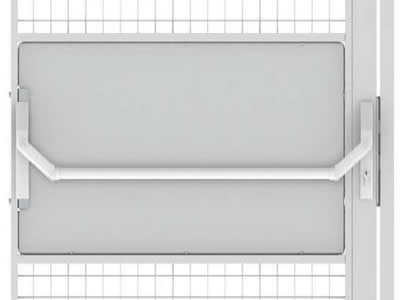

It is ideal to install a Hinged Door Panic Bar on most of your warehouse receiving cages so employees and guests can quickly exit the building in case of an emergency. The Panic Bar will allow anyone to leave the premises from the inside without the need to open any locks. Also, it's just more practical for daily use.

Security Cages

Conclusion: Warehouse Receiving Cages are Great for Receiving Warehouses!

Warehouse Receiving Cages can protect your employees and guests from dangerous machinery. You can protect your warehouse from theft and only allow authorized users access. There are many accessories available, for example, services windows for guests to check in at. Or simply protect your inventory and tools.


Security Cages

Accessories for Warehouse Receiving Cages

  • Locks and Access Panels
  • Ceiling Panels
  • Push Bars/Hinged Door Panic Bars
  • Steel Benches
  • Sheet Panels (To hid from view)
  • Sliding Doors
  • And much more…just ask!


  • Security Cages

  • Security Cages
  • Security Cages
  • Security Cages
  • Security Cages

  • Security Cages

Order by Phone!
866-328-5066

Security Cages

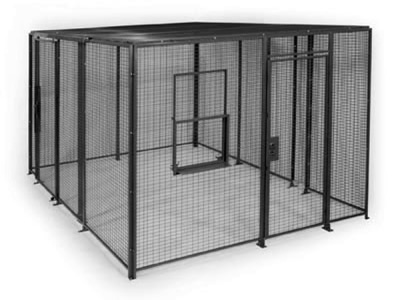

The 2180 Security Cage System

Attractive and secure, the 2180 system is ideal for data center computer security cages, office supply and document storage, and retail theft prevention, yet still provides an easily installed solution for traditional tool cribs and warehouse security applications. In fact, Series 2180 is perfect for the majority of applications. Since most wire partition applications are 10' or less in height, a competitive stackable system is not usually necessary and requires more time and manpower to install.

Security Cages

Tubular Frame Panel Security Cage

The tubular frame panel gives the installer clear access to ALL mounting hardware.  The strength of the panels provides extra rigidity, nearly eliminating bending and casting. The advanced design includes mounting vertical panels with quick installing flanged head bolts. Generously slotted holes make alignment quick and helps compensate for uneven floors, helped by the use of larger mounting pads than traditional woven wire partition systems providing extra rigidity and security.

Security Cages

Welded Wire Mesh Security Cage

The welded wire mesh allows for easy cut-outs done in the field around existing pipes, beams, and other barriers, while maintaining its structural integrity.

Security Cages

Sliding Doors for Security Cages

Sliding Doors are designed for mounting outside or inside your wire partition. Constructed of the same materials as panels, and hung by 4-wheel trolleys rolling in an enclosed track.

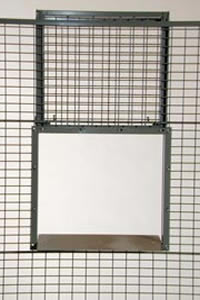

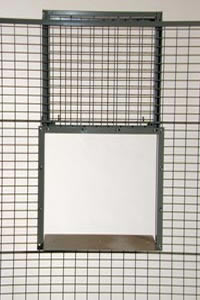

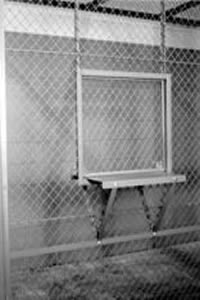

Ask about our slide-up window with shelf and lift catches (pictured above) or fold-down option with bottom hinged sheet metal closure forming the shelf. All doors and windows ship complete with all necessary mounting hardware to install and operate.

Finish: Panels, doors, and posts are phosphate washed with a standard finish of polyester powder coat in high quality gray. Also available in 5 additional standard colors (black, yellow, red, blue, and green) or you can contact our sales team for information regarding custom color matches.

Security Cages

Panels

Panels are constructed of 6-gauge, welded 1 1/2" x 2 1/2" rectangular wire steel mesh securely welded to frames made of 1" square 16-gauge structural tubing, with all joints MIG welded. Frames are equipped with 1 1/4" x 3/8" slotted holes for quick mounting. There is a 3" sweep space below the lower horizontal frame member allowing for housekeeping.

Security Cages

Hardware

All panels and doors are shipped with appropriate hardware including heavy duty 5/16" flanged head bolts and nuts for all panel-to-panel, panel-to-door, and panel/door-to-post connections. Floor and wall anchors can also be furnished upon request.
Security Cages

Hinged Doors

Hinged Doors are constructed of the same materials as panels, and pre-hung in the frame. Swing direction must be designated at time of order (left or right, in or out). Standard openings are 7' high with transoms filling out panel heights of 8', 9', and 10'.

Security Cages

Sliding Doors

Sliding Doors are designed for mounting outside or inside your wire partition. Constructed of the same materials as panels, and hung by 4-wheel trolleys rolling in an enclosed track.

Security Cages

Security Cages

***measurements are not exact, each were rounded to the nearest 1/10 of an inch.

Order by Phone!
866-328-5066

For more details on security cages, call NationWide Shelving at 1-866-328-5066 or Email us at Info@NationWideShelving.com
