Bulk Storage Shelving
Bulk Storage Shelving

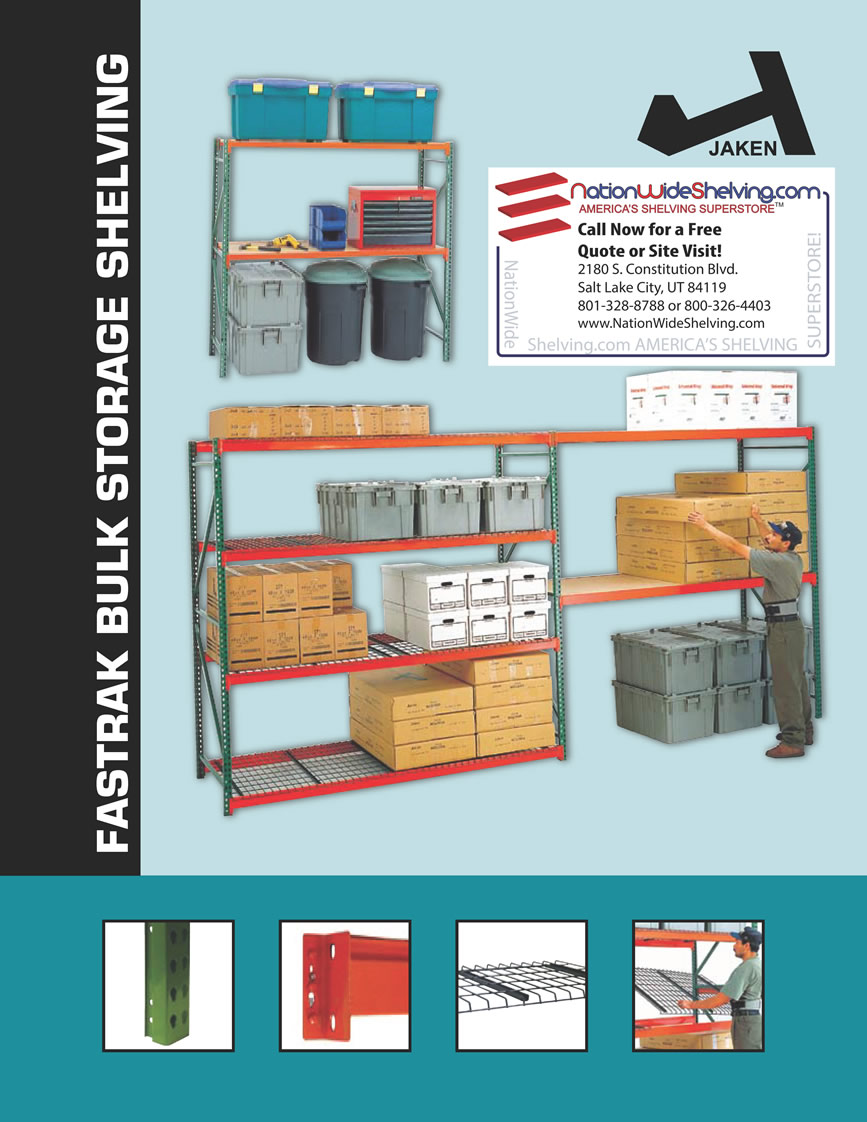

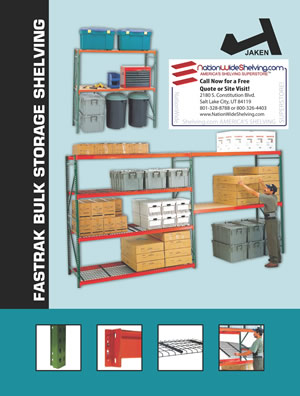

Download PDF Brochure
Download PDF Brochure
Bulk Storage Shelving
Bulk Storage Shelving

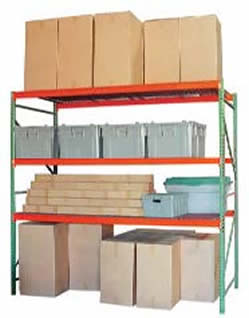

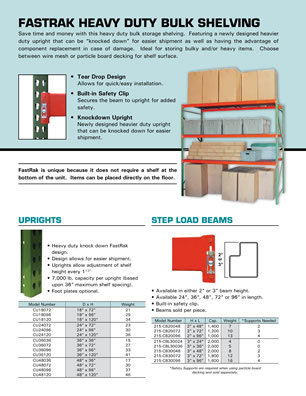

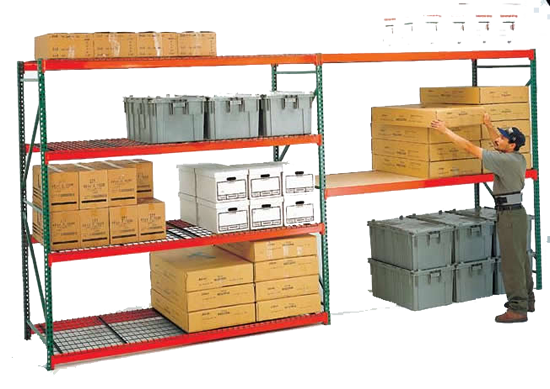

FASTRAK HEAVY DUTY BULK SHELVING

Save time and money with this heavy duty bulk storage shelving. Featuring a newly designed heavier duty upright that can be “knocked down” for easier shipment as well as having the advantage of component replacement in case of damage. Ideal for storing bulky and/or heavy items. Choose between wire mesh or particle board decking for shelf surface.


Bulk Storage Shelving
  • Tear Drop Design
    Allows for quick/easy installation.

  • Built-in Safety Clip
    Secures the beam to upright for added safety.

  • Knockdown Upright
    Newly designed heavier duty upright that can be knocked down for easier shipment.

FastRak is unique because it does not require a shelf at the bottom of the unit. Items can be placed directly on the floor.

Bulk Storage Shelving
UPRIGHTS
Bulk Storage Shelving
  • Heavy duty knock down FastRak design.
  • Design allows for easier shipment.
  • Uprights allow adjustment of shelf height every 11/2”.
  • 7,000 lb. capacity per upright (based upon 36” maximum shelf spacing).
  • Foot plates optional.
Model Number D x H Weight
CU18072
CU18096
CU18120
18” x 72”
18” x 96”
18” x 120”
21
29
34
CU24072
CU24096
CU24120
24” x 72”
24” x 96”
24” x 120”
23
30
36
CU36036
CU36072
CU36096
CU36120
36” x 36”
36” x 72”
36” x 96”
36” x 120”
15
27
33
41
CU48036
CU48072
CU48096
CU48120
48” x 36”
48” x 72”
48” x 96”
48” x 120”
17
30
37
46

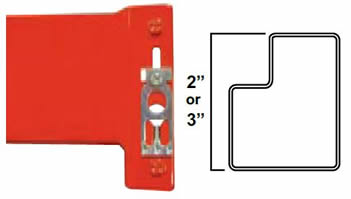

STEP LOAD BEAMS

Bulk Storage Shelving
  • Available in either 2” or 3” beam height.
  • Available 24”, 36”, 48”, 72” or 96” in length.
  • Built-in safety clip.
  • Beams sold per piece.
Model Number H x L Cap. Weight *Supports Needed
215-CB20048
215-CB20072
215-CB20096
2” x 48”
2” x 72”
2” x 96”
1,400
1,200
1,000
7
10
13
2
3
4
215-CBL30024
215-CBL30036
215-CB30048
215-CB30072
215-CB30096
3” x 24”
3” x 36”
3” x 48”
3” x 72”
3” x 96”
2,000
2,000
2,000
1,800
1,600
4
5
8
12
16
0
0
2
3
4
*Safety Supports are required when using particle board decking and sold separately.

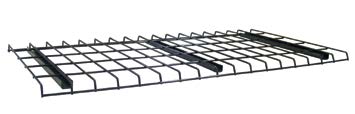

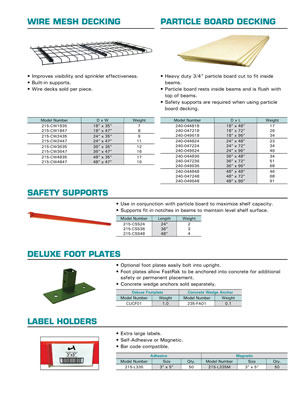

WIRE MESH DECKING
Bulk Storage Shelving
  • Improves visibility and sprinkler effectiveness.
  • Built-in supports.
  • Wire decks sold per piece.

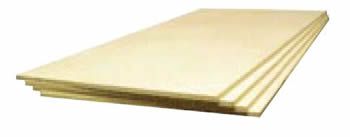

PARTICLE BOARD DECKING

Bulk Storage Shelving
  • Heavy duty 3/4” particle board cut to fit inside beams.
  • Particle board rests inside beams and is flush with top of beams.
  • Safety supports are required when using particle board decking.
Model Number D x H Weight
215-CW1835
215-CW1847
18” x 35”
18” x 47”
7
8
215-CW2435
215-CW2447
24” x 35”
24” x 47”
9
11
215-CW3635
215-CW3647
36” x 35”
36” x 47”
12
16
215-CW4835
215-CW4847
48” x 35”
48” x 47”
17
19
Model Number D x L Weight
240-044818
240-047218
240-049618
18” x 48”
18” x 72”
18” x 96”
17
26
34
240-044824
240-047224
240-049624
24” x 48”
24” x 72”
24” x 96”
23
34
46
240-044836
240-047236
240-049636
36” x 48”
36” x 72”
36” x 96”
34
51
68
240-044848
240-047248
240-049648
48” x 48”
48” x 72”
48” x 96”
46
68
91

SAFETY SUPPORTS

Bulk Storage Shelving
  • Use in conjunction with particle board to maximize shelf capacity.
  • Supports fit in notches in beams to maintain level shelf surface.
Model Number Length Weight
215-CSS24
215-CSS36
215-CSS48
24”
36”
48”
2
3
4



DELUXE FOOT PLATES

Bulk Storage Shelving
  • Optional foot plates easily bolt into upright.
  • Foot plates allow FastRak to be anchored into concrete for additional safety or permanent placement.
  • Concrete wedge anchors sold separately.
Deluxe Footplate Concrete Wedge Anchor
Model Number Weight Model Number Weight
CUCF01 1.0 235-FA01 0.1



LABEL HOLDERS

Bulk Storage Shelving
  • Extra large labels.
  • Self-Adhesive or Magnetic.
  • Bar code compatible.
Adhesive Magnetic
Model Number Size Qty. Model Number Size Qty.
215-L335 3” x 5” 50 215-L335M 3” x 5” 50

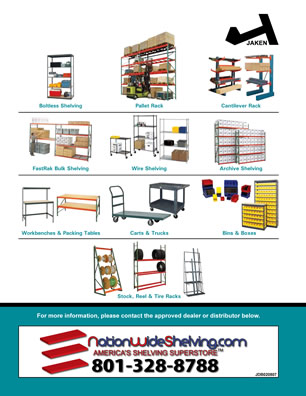

Boltless Shelving
Boltless Shelving
Pallet Rack
Pallet Rack
Cantilever Rack Cantilever Rack
Cantilever Rack
FastRak Bulk Shelving
FastRak Bulk Shelving
Wire ShelvingWire Shelving
Wire Shelving
Archive Shelving
Archive Shelving
Workbenches & Packing TablesWorkbenches & Packing Tables
Workbenches & Packing Tables
Carts & TrucksCarts & Trucks
Carts & Trucks
Bins & BoxesBins & Boxes
Bins & Boxes
Stock, Reel & Tire RacksStock, Reel & Tire RacksStock, Reel & Tire Racks
Stock, Reel & Tire Racks
